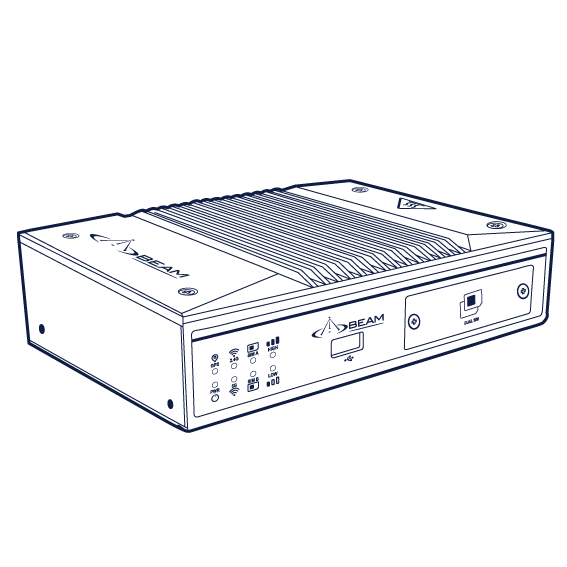

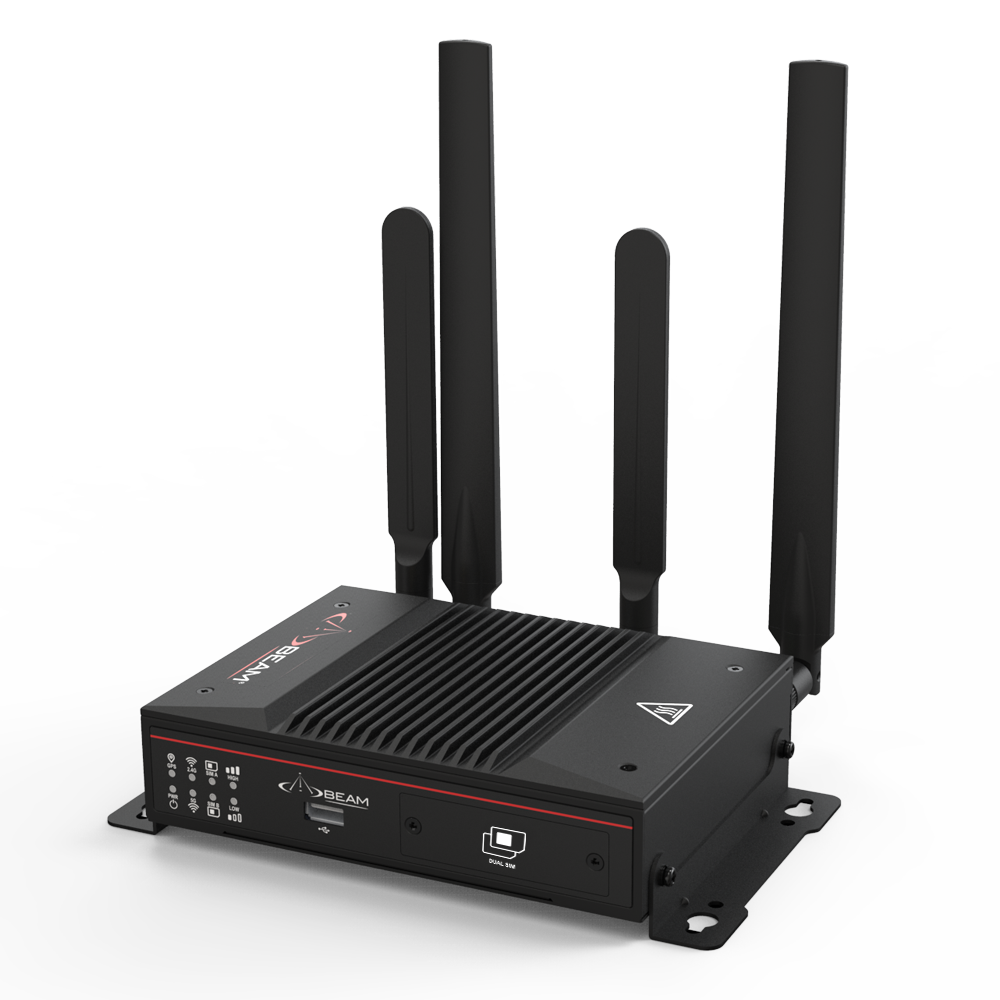

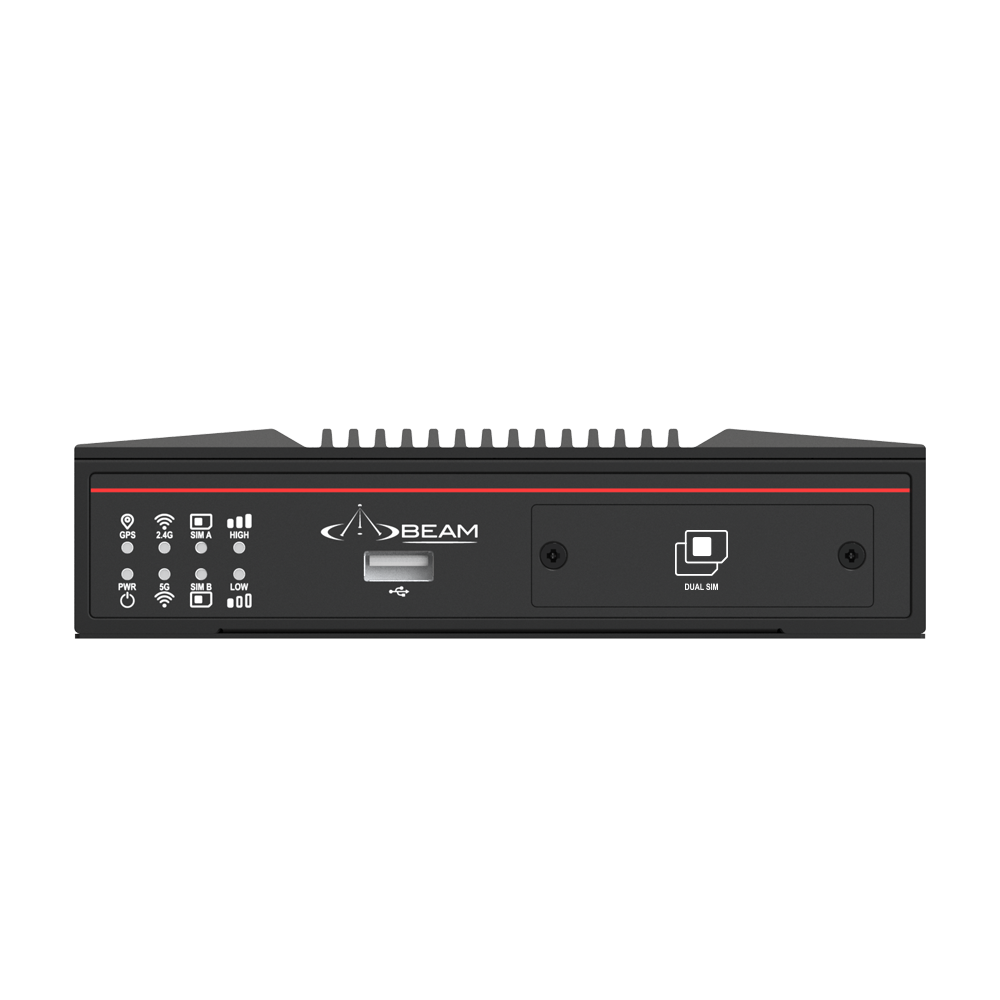

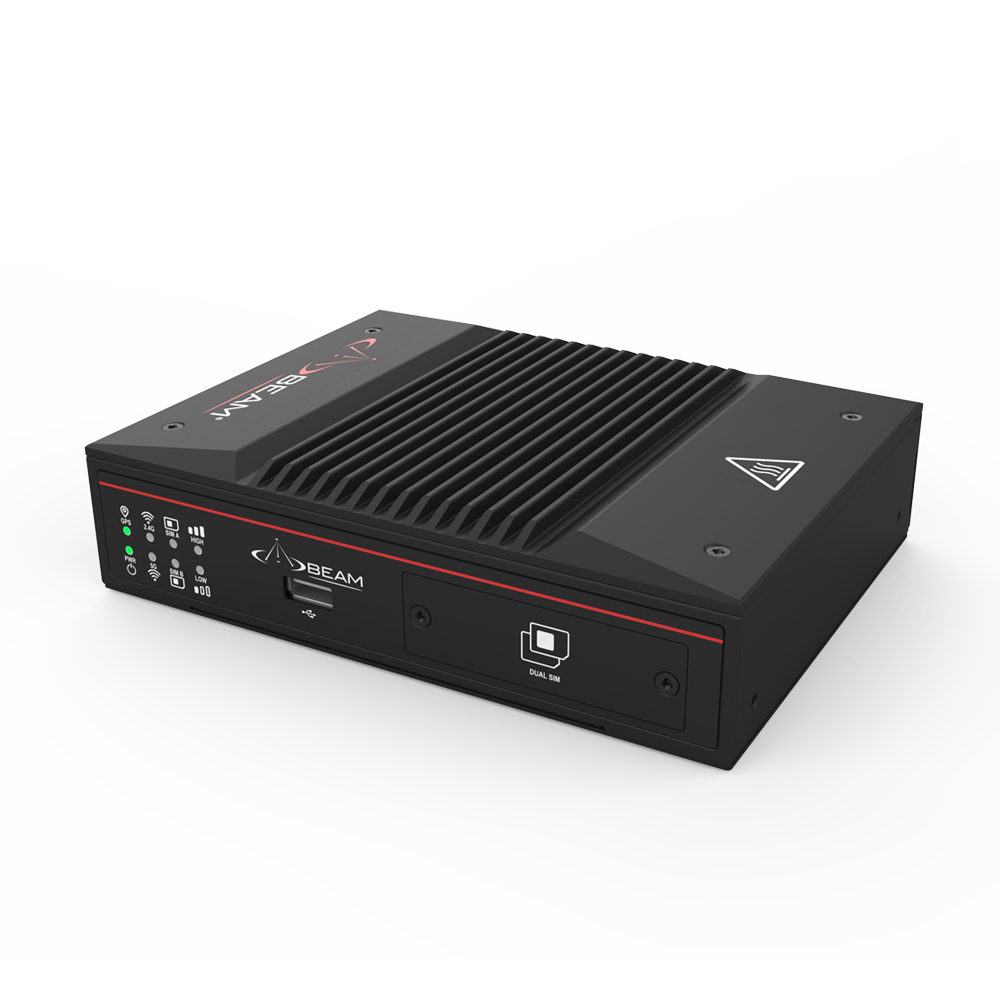

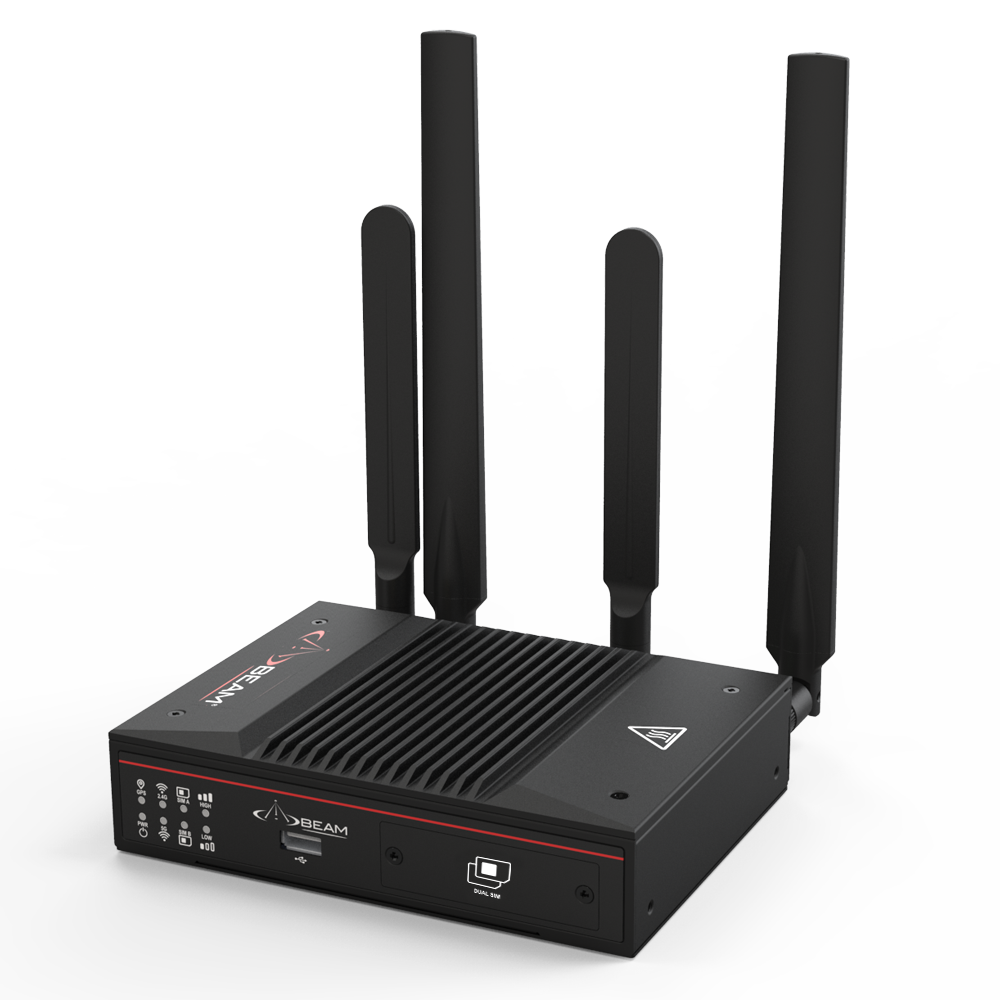

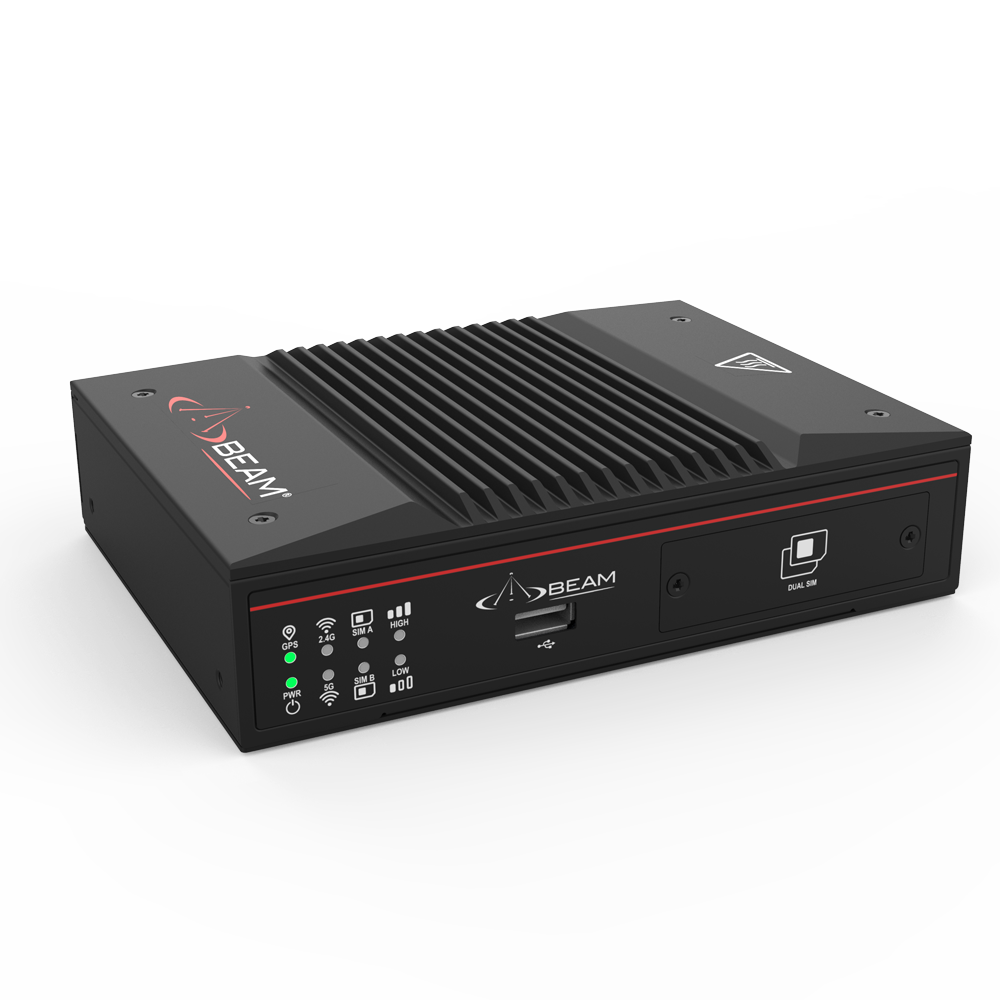

MG400 LTE Gateway (MG400)
The Beam MG400 LTE Gateway (4G LTE Cat 13) is a reliable high-quality grade router for industrial and vehicular environments. It is designed to meet solutions that require high-speed and reliable data connectivity where connections may be unavailable or unsuitable for the application.
Dual SIM capability allows an always-on connection by using 2 networks.
Vibration and shock-resistant, the MG400 is ideal for all types of transportation, whether used in industrial mining to the latest automobile technology.
- Data
- SMS
- Alert
- SIM
- Second SIM
MG400 LTE Gateway Features
Key Features
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual Wi-Fi
• Dual SIM
• Integrated GPS (optional GPS antenna)
• 3 Gigabit Ethernet ports
• I/O and RS232 ports to read and control remote sensors and equipment
• Wi-Fi Access point and hotspot functionality
• Industrial design for harsh environments - land and maritime (fixed and mobile)
• Tough Environmental specs
• Ignition sense and wide range of input voltages for vehicle and boat installations
• Optional High gain antennas for increased coverage
• Dual Wi-Fi
• Dual SIM
• Integrated GPS (optional GPS antenna)
• 3 Gigabit Ethernet ports
• I/O and RS232 ports to read and control remote sensors and equipment
• Wi-Fi Access point and hotspot functionality
• Industrial design for harsh environments - land and maritime (fixed and mobile)
• Tough Environmental specs
• Ignition sense and wide range of input voltages for vehicle and boat installations
• Optional High gain antennas for increased coverage
MG400 LTE Gateway Specifications

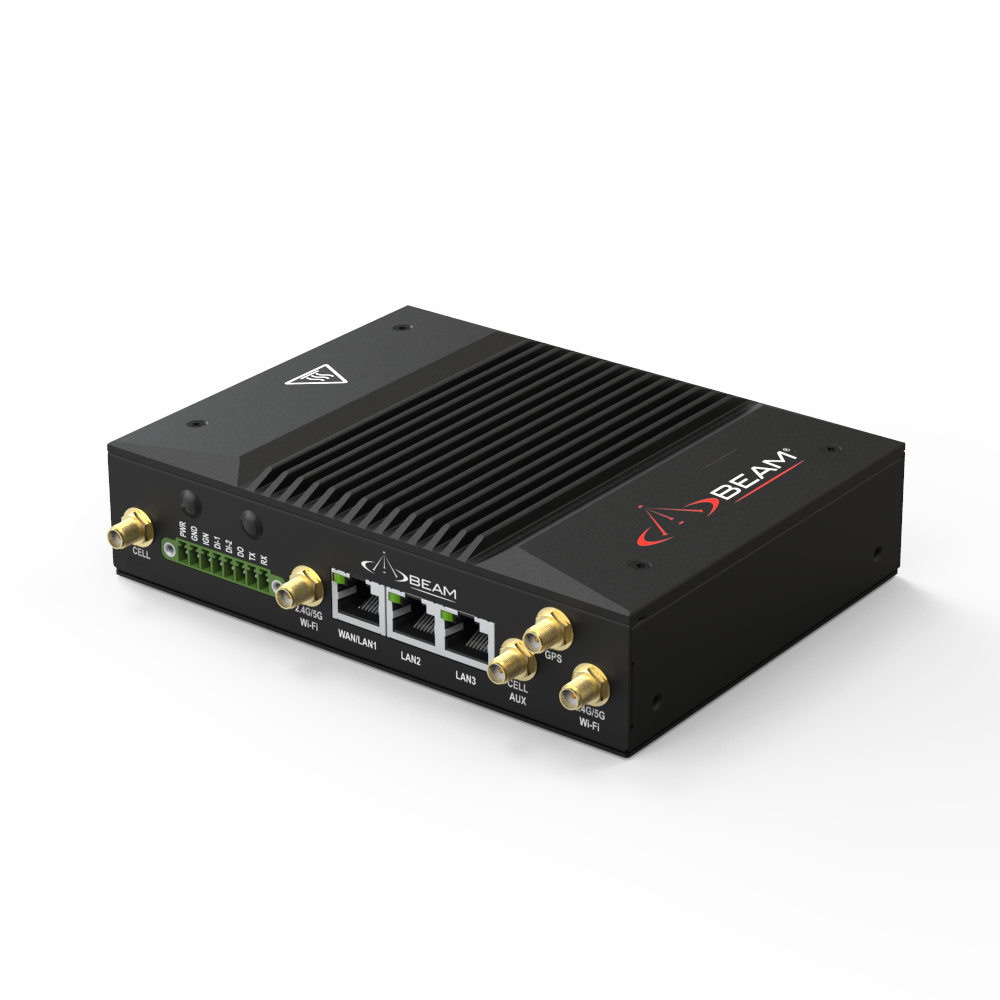

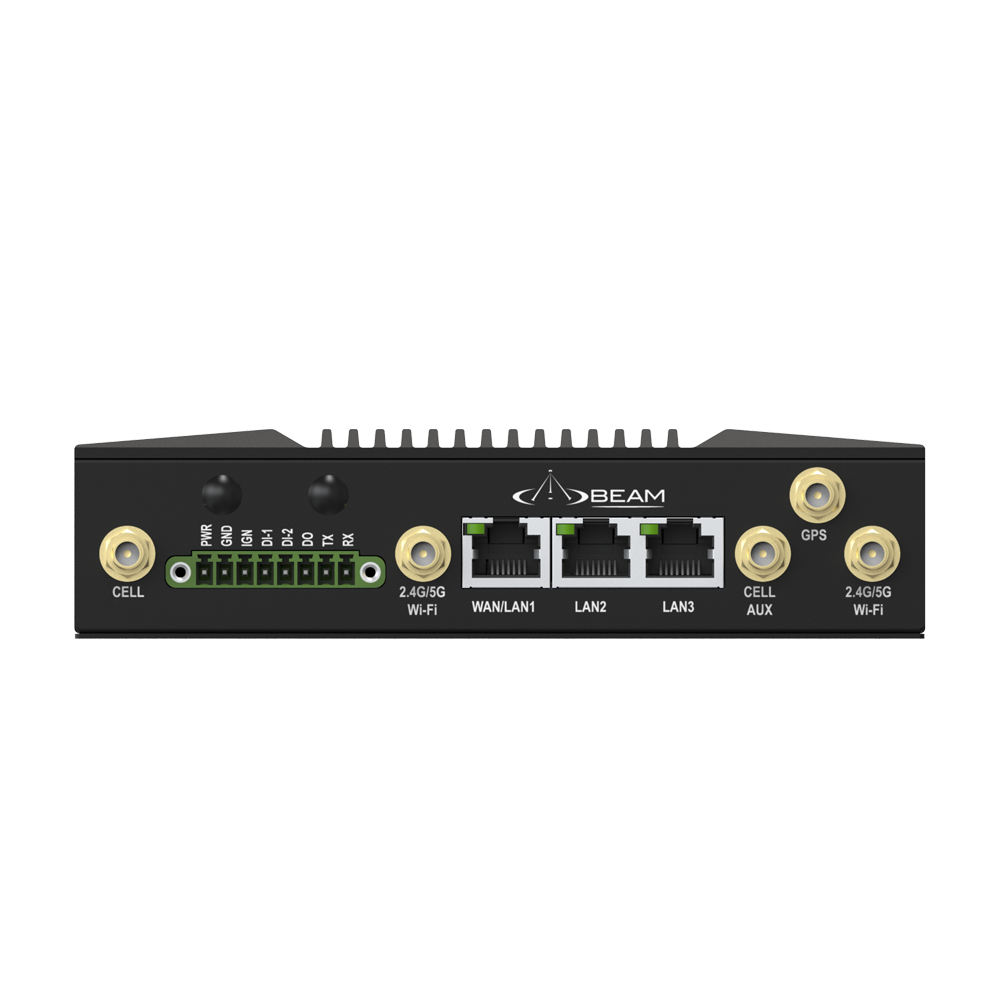

Device Interface
| LTE Module | 1*LTE-Cat.13, 2*SIM, with GNSS |
| Ethernet | 3*RJ45 GE |
| WiFi | 1*11n-2*2 , 1*11ac-2*2 High Power |
| Field Bus | 1*RS232 (TX/RX) |
| Log Storage | *USB |
| I/O | 2*DI (“Logic 0”: 0~1V, “Logic 1”: 5V~30V),1*DO (Relay Mode, maximum voltage is 36V) |
| Power Input | 1* DC 9V ~ 36V (Terminal Block) |
| Antenna Con. | 2*SMA (F)-LTE, 2*SMA(M)-WiFi, 1* SMA(F)-GPS |
WAN & Uplink
| WAN | Cellular & Config. Ether-WAN; Failover, Load Balance, |
| Cellular | 3GPP, 3G/LTE, IP Pass-through, IPv4/6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Wi-Fi uplink | Auto AP scan, profile for APs link priority |
| Network Monitor | ICMP/ DNS Query |
Wi-Fi
| Standard | 802.11 Industry Compliance |
| Mode | AP Router, WDS, WDS Hybrid Modes |
| Functions | Multi-SSID, WMM |
| Security | WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x |
| Captive Portal | External & Internal web portal |
ENVIRONMENT
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30 to +70 | -22 to +158 |
| Storage | -40 to +85 | -40 to +185 |
| Humidity | 10% ~ 95% (non condensing) |
PHYSICAL
| Dimensions | mm | inches |
| Unit (w/o Bracket kit) | 160 x 125 x 47 | 6.3 x 4.9 x 1.85 |
| Unit (with Bracket kit) | 200 x 125 x 48 | 7.9 x 4.9 x 1.9 |
| Outer Box | 278x 247x 66 | 10.94 x9.72 x 2.6 |
| Weight | kg | lbs |
| 0.965 | 2.127 |
CERTIFICATIONS
| EMC | EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52 (EN 301489-24 , replaced by EN 301489-52) |
| Radio | ETSI EN 300 328, ETSI EN 301 893, AS/ACIF S042.1& AS/CA S042.4 |
| Safety | AS/NZS 2772.2, IEC62368 |
KIT CONTENTS
| 1 x MG400 Gateway LTE |
| 2 x Cellular Antennas |
| 2 x Wi-Fi Antenna |
| 1 x Terminal Block ( 8-pin for DC Power, IGN, DI/DO, RS232) |
| 2 x Mounting Brackets |
| 1 x Screw Bag |
| 1 x Spare device label |
| 1 x AC power adapter AU plug |
| 1 x Fused DC power cable with IGN |
| 1 x Quick Start Guide |
Brochures
Brochure MG400 LTE Gateway
For more information please download our MG400 LTE Gateway Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
