Beam LTE Marine Bundle 5m Cable (MG200-MB5) - DISCONTINUED (MG200-MB5)
The Beam LTE Marine Bundle includes the Beam MG200 LTE Gateway Kit with the Beam LTE710 Stick Antenna. The LTE710 Stick Antenna is splash-, rust-, and weather-proof, specifically designed to withstand the marine environment. This high gain omni-directional antenna is ideal to get the best possible coverage at sea (e.g. near coast vessels). The antenna can also be deployed for land applications and M2M/IoT installations.

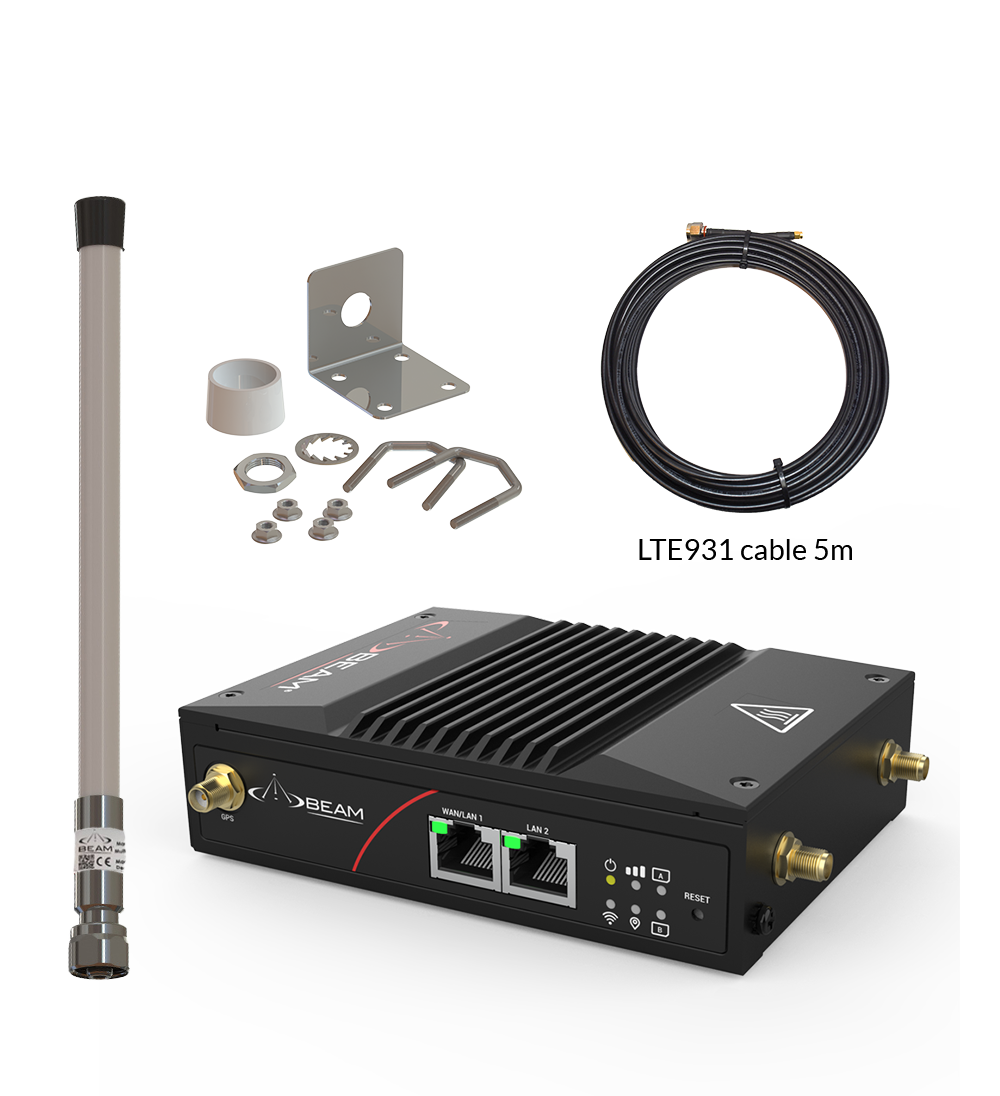

MG200 Marine 5 (MG200-MB5):
- Beam MG200 LTE Gateway Kit
- Beam LTE710 Stick Antenna
- Beam LTE931 5m Cable
- Data
- Tracking
Beam LTE Marine Bundle 5m Cable (MG200-MB5) - DISCONTINUED Features
Key Features
• Simple and affordable high-speed connectivity
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Integrated GPS (optional GPS antenna)
• Wi-Fi access point and hotspot functionality
• Industrial design for marine environments
• Onmi-directional high gain antenna for increased coverage
• Vibration and shock resistant
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Integrated GPS (optional GPS antenna)
• Wi-Fi access point and hotspot functionality
• Industrial design for marine environments
• Onmi-directional high gain antenna for increased coverage
• Vibration and shock resistant
Beam LTE Marine Bundle 5m Cable (MG200-MB5) - DISCONTINUED Specifications
MG200 LTE GATEWAY PHYSICAL
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit (w/o Bracket kit) | 131 x 99 x 31 | 5.2 x 3.9 x 1.2 |
| Unit (with Bracket kit) | 167 x 99 x 39 | 6.6 x 3.9 x 1.5 |
| Outer Box | 278 x 247 x 69 | 10.94 x 9.72 x 2.60 |
| Weight | kgs | lbs |
| Unit | 0.625 | 1.377 |
MG200 LTE GATEWAY ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30º to +70º | -22º to +158º |
| Storage | -40º to +85º | -40ºto +185º |
| Humidity | 10%~95% (non condensing) |
MG200 LTE GATEWAY RF CHARACTERISTICS
| LTE Module | 1 x LTE-Cat.13, 2 x SIM, with GNSS |
| Ethernet | 2 x RJ45 FE |
| Wi-Fi | 802.11n 2T2R (2.4GHz) |
| Log Storage | 1 x MicroSD card slot |
| Power Input | 1 x DC 9V ~ 36V (Terminal Block) |
| Antenna Con. | Power Input |
| Power Input | 2 x SMA (F)-LTE, 2 x SMA(M)-Wi-Fi, 1 x SMA(F)-GPS |
MG200 LTE GATEWAY WAN & UPLINK
| WAN | Cellular & Config. Ether-WAN; Failover, Load Balance, |
| Cellular | 3GPP, 3G/LTE, IP Pass-through, IPv4/6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Network Monitor | ICMP/DNS Query |
MG200 LTE GATEWAY Wi-Fi SPECIFICATIONS
| Standard | 2.4GHz MIMO 802.11n |
| Mode | AP Router, WDS, WDS Hybrid Modes |
| Functions | Multi-SSID, WMM |
| Security | WEP, WPA,WPA2, WPA-PSK, WPA2- PSK, 802.1x |
| Captive Portal | Wi-Fi hotspot |
MG200 LTE GATEWAY CERTIFICATIONS
| EMC | EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52 |
| Radio | ETSI EN 300 328, AS/ACIF S042.1 & AS/CA S042.4 |
| Safety | AS/NZS 2772.2, IEC62368 |
LTE710 STICK ANTENNA PHYSICAL
| Color | White and Chrome | |
| Material | UV Protected PC, PTFE, PE and Chromed Solid Brass | |
| Mounting Mast or Rail (mm) | Ø 10 - 30 | |
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit | 495 L x 31.90 D | 19.48 L x 1.25 D |
| Packing Dimensions | 510 x 350 x 60 | 20.07 x 13.77 x 2.36 |
| Weight | kgs | lbs |
| Unit | 0.3 | 0.6 |
| Packing Weight | 1 | 2.2 |
LTE710 STICK ANTENNA ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -55°C + 70°C | -131°F + 251°F |
LTE710 STICK ANTENNA SPECIFICATIONS
| Frequency (MHz) | 450 - 470 MHz, 698 - 960 MHz, 1427 - 1518 MHz, 1710 -2170 MHz, 2500 - 2690 MHz, 3300 - 3800 MHz |
| Gain (dBi) | 3 dB (Marine), 0 dBd, 2.15 dBi (450- 470/698-960 MHz) 6 dB (Marine), 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 10 dB (Marine), 7 dBd, 9.15 dBi (2412- 2690/3300-3800 MHz) |
| Polarization | Vertical |
| Antenna Type | Cellular/LTE |
| V.S.W.R (dB) | < 3.0:1 (450 - 470 / 790 - 960 MHz), < 2.5:1 (1427- 2690 MHz/ 3300 - 3800 MHz) |
| Impedance (ohm) | 50 |
| Max Input Power (W) | 40 |
| Radiation Pattern | Omni-Directional |
KIT CONTENTS
| MG200 Marine 5 (MG200-MB5) |
| 1 x Beam MG200 LTE Gateway |
| 2 x Cellular Antennas |
| 2 x Wi-Fi Antenna |
| 1 x Terminal Block (2-pin for DC Power) |
| 2 x Mounting Brackets |
| 1 x Screw Bag |
| 1 x Din Rail Bracket with Screws |
| 1 x Spare Device Label |
| 1 x AC Power Adapter with AU Plug |
| 1 x Fused Power Cable |
| 4 x Rubber Feet |
| 1 x MG200 LTE Gateway Quick Start Guide |
| 1 x Beam LTE710 Stick Antenna |
| 1 x Beam LTE931 5m Cable |
| 1 x LTE141 Mast/Rail Mount bracket |
| 1 x Beam LTE Marine Bundle Installation Guide |
Brochures
Beam lte bundle series
For more information please download our Beam LTE Bundle series brochure.
Download brochure
Beam LTE Marine Bundle
For more information please download our Beam LTE Marine Bundles Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
