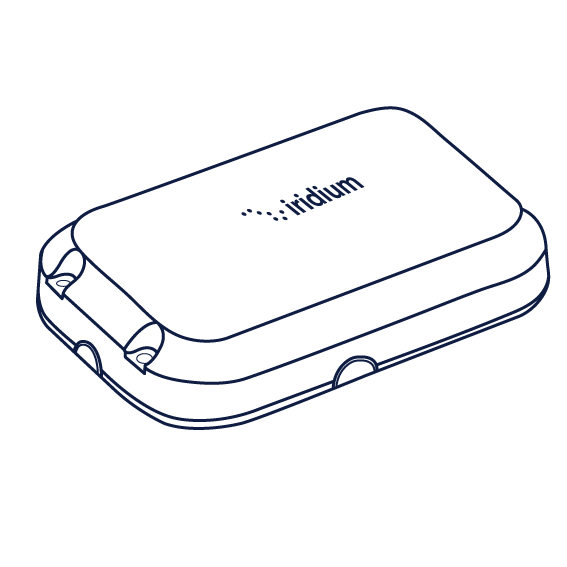

Iridium Edge (IRIEDG)

MSRP $350 USD

Enable your customers to leverage their existing terrestrial-based solutions for fleet management, telematics, safety and other remote monitoring applications through Iridium Edge™, a ready-to-go, reliable satellite communications device that expands connectivity beyond cellular limits for 100% global IoT coverage.

Fast time-to-market is a critical component in today’s highly competitive communications environment. Iridium Edge™ is a satellite add-on enabling dual-mode capability and reducing the cost, uncertainties and complications associated with hardware development, manufacture and certification of the satellite-specific terminal.

Read more product features

Iridium Edge Features

Rugged, reliable and cost-effective asset tracking and fleet management

Deliver more value to customers by leveraging your existing terrestrial-based IoT or M2M solutions for fleet management, telematics, safety and other remote monitoring applications. Iridium Edge™ is a cost-effective satellite IoT communications device that can be rapidly deployed and complements terrestrial-based solutions to create worldwide connectivity. Iridium provides global IoT/M2M coverage for the most remote and inaccessible areas of the world.

Rapidly Deployed IoT Solution

Fast time-to-market is a critical need in today’s evolving asset tracking and fleet management environment. Iridium Edge features an all-in-one Short Burst DataSM (SBDSM) modem and antenna, with power supply. The plug-and-play satellite IoT device can be easily paired with existing satellite and cellular solutions, without complicated integration or development requirements.

Key Features

• Expand connectivity beyond cellular limits for 100 percent global IoT/M2M coverage
• Satellite add-on enabling dual-mode capability
• Hardware-ready device for simple, low-risk integration
• Low-cost device for affordable customer adoption
• Ready-to-install for quick time-to-market
• Robust power supply for industrial installations
• 180° line of sight for compromised locations
• Certified in key geographic markets

Benefits of the Iridium LEO Satellite Network for IoT/M2M

Iridium EdgeTM inherits the many benefits of the Iridium network.
• 100 percent truly global coverage from pole-to-pole
• Provides a stronger, more robust satellite signal compared to GEO constellations
• Shorter transmission path of LEO network results in lower latency and shorter registration time
• Greater flexibility in installation
• Improved line of sight over GEO systems in compromised locations or behind large obstructions
• Overlapping satellite coverage and crosslinks provide redundancy and increased reliability

Iridium Edge Specifications

Network

Message Size 270 bytes (Receive), 340 bytes (Transmit)
Frequency 1616 – 1626.5 MHz

Mechanical

Ingress Protection IP 67
Side and bottom cable exits

Physical

Dimensions mm inches
Unit 130 x 80 x 30 5.12 x 3.15 x 1.18

Environmental

Temperature Degrees °C Degrees °F
Operating temperature range -40°C to 85°C -40°F to 185°F
Storage temperature range -40°C to 85°C -40°F to 185°F

Interfaces

RS232 AT command interface
On/Off control lines

Power

Power Supply ( 9-32V) SAE J1455 Load dump protected
Reverse Polarity Protection
Maximum Power: 1.6W (peak for short transmit burst)
Low Power Modes: < 100uA

Certifications

Iridium® satellite network certification
FCC, IC, CE, Australia approvals
RoHS compliant
