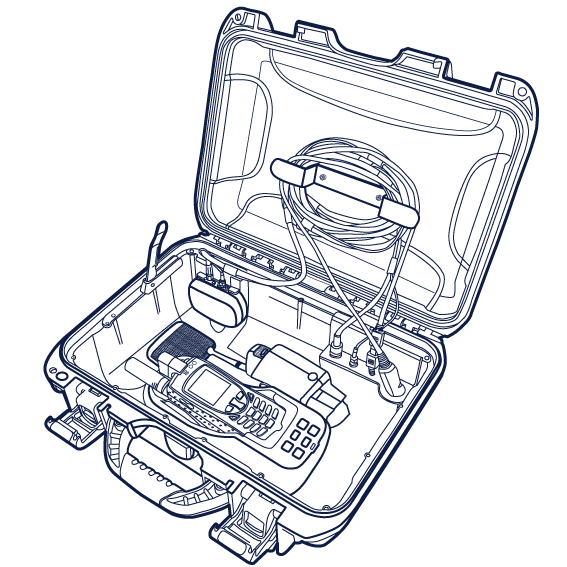

Iridium Extreme® PTT Grab ‘N’ Go Wireless Kit (PTTGNG-W1A)

MSRP $1995 USD

The Beam Iridium Extreme Push-To-Talk Grab ‘N’ Go Wireless Kits provide a powerful communication device that can transmit and receive audio for up to 300m/1000ft away from the case (fitted with external antenna).

Read more product features
  • Docking
  • Supports PTT
  • Supports Voice via 9575
  • UPS Battery (optional)
  • All Weather Resistant Case
  • Dual Mode Antenna
  • AC/DC Power
  • Wireless PTT Handset
  • External PTT Antenna

Iridium Extreme® PTT Grab ‘N’ Go Wireless Kit Features

The Beam PTT Grab ‘N’ Go Wireless solution provides a clear and high quality audio that surpasses the output of the Extreme® Handset. It is the perfect partner for your Iridium Extreme PTT device. The PTT Grab ‘N’ Go kit supports the Extreme Handset in either PTT mode or standard voice mode. The same set up is available in a large case with in-built UPS battery or a small compact case*.
* UPS Battery option is not available in the Small case.

Key Benefits and Features

• Durable speaker and mic handset
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Optional UPS battery kit
• Integrated Iridium and GPS Antenna
Kits
Iridium Extreme PTT Grab ‘N’ Go Wireless + UPS Large Kit - PTTGNG-W1AB
Iridium Extreme PTT Grab ‘N’ Go Wireless Small Kit -PTTGNGS- W1A

Iridium Extreme® PTT Grab ‘N’ Go Wireless Kit Specifications

DriveDOCK Extreme Power

Average Power Consumption Current @ 12VDC Watts
Rated Input 9-32V DC 2A max
Standby 70mA 0.84W
Transmit + Charging 0.7A 8.4W
Sleep Mode 5mA 60mW

DriveDOCK Extreme Environmental

Temperature Degrees °C Degrees °F
Operating Range -30°C to +70°C* -22°F to +158°F
Charging Range 0°C to 45°C # +32°F to 113°F
Storage -35°C to +85°C -31°F to 185°F
Operating Humidity Range < 85% RH non-condensing
Notes * When 9575 Battery is fully charged # Derived from the charging temperature range of the Iridium 9575 handset battery.

Wireless Push-To-Talk Handset Kit Environmental

Humidity/Rain/Dust IEC529, IP67 (Wireless Handset only)
Temperature Degrees °C Degrees °F
Operating Temperature -20°C to +55°C -4°F to +122°F
Vibration and Shock Mil Std 810 C/D/E/F

Wireless Push-To-Talk Handset Kit Battery Pack

Battery Type 3.7V @1450mA Lithium Polymer

Beam Dual Mode MAG Antenna Environmental

Temperature Degrees °C Degrees °F
Operating Temp -40°C to +70°C -40°F to 158°F

Beam Dual Mode Antenna Frequency

Iridium 1616 – 1626MHz
GPS 1575.42 ± 5MHz

PTT Grab ‘N’ Go Case Physical

Dimensions mm inches
Case 401L x 307W x 173H 15.8L x 12.1W x 6.8H

BLUETOOTH® Legal

Bluetooth® The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners.

Brochures

PTT Grab 'N' Go Cases Kit Brochure

For more information please download our PTT Grab 'N' Go Cases Kit Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
