Man Down Kit (RST410)

MSRP $945 USD

EOL* – limited stock remaining.
*EOL – End of Life

The Man Down Pendant is a user worn accessory (lanyard or hip holster) that works in conjunction with the Serial Gateway receiver and wireless data equipment that can be connected to any BEAM tracking hardware, or other mobile satellite device and remote device monitoring software for proactively managing the safety and well-being of workers.

Read more product features
  • Alert

Man Down Kit Features

Peace of Mind

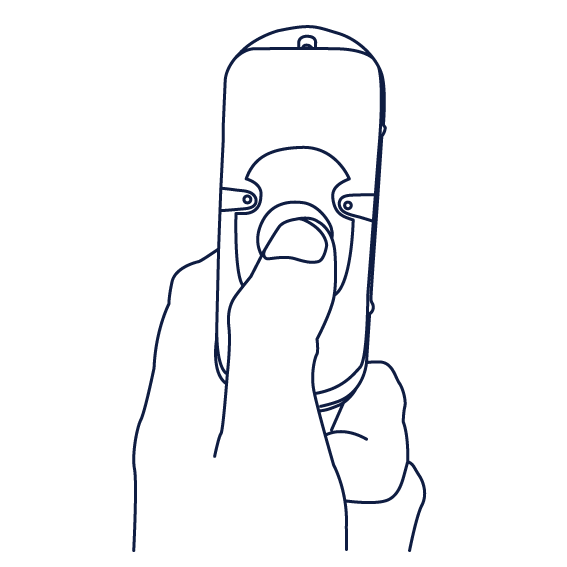

The pendant gives the user the peace of mind that a call for help is only a button press away. With its integrated motion sensor technology, the pendant can recognize if the user has been incapacitated or is unable to press the alarm button.

SOS notifications

In the event of inactivity, the pendent will emit an audible tone for 20 seconds (giving the user the option to prevent a false alarm) and will then trigger the SOS function. The button press does also provide an instant SOS notification to the gateway.

Key Benefits and Features

• User worn (lanyard or hip holster)
• Large single emergency button
• Integrated motion sensor prompts alert notification when pendant is motionless for 60 seconds
• LED lights, audible buzzer and vibrate function for tactile feedback
• Give your worker peace of mind knowing that help is only a button press away
• No fumbling with small key pads or multiple button sequences during an emergency
• Avoid unreliable and expensive buddy systems
• Adhere to worker safety policy
• Alleviate company and family safety worries

The RST410 Man Down Kit gives the user peace of mind knowing that help is only a button press away.

Man Down Kit Specifications

Windshield Gateway

Power Ext 12V (via DC jack or leads)
Avg. Current 44mA
Power Consumption 528mW
Power DB9 pin 9, 3.9V
Avg. Current 104mA
Power Consumption 406mW
Connectors/Interfaces
LED Status, Power, Data Transmit-Receive
Interface RS-232 (DB-9 male)
Physical
Dimensions mm inches
Gateway Dimension 95 L x 32 W x 27.6 H 3.74 L x 1.26 W x 1.08 L

Man Down Pendant

Power
Battery* Duracell® MN1500 or Energizer® E91 2 x AA Battery
Connectors/Interfaces
Indicator LED Green Orange
Connection Wireless
Environmental
Enclosure Sealing IP54
Temperature Degrees °C Degrees °F
Operating Range -30°C to +60°C -22°F to +140°F
Storage Temp -40°C to +75°C -40°F to 167°F
Humidity 95% RH
Physical
Dimensions mm inches
90 H x 37 W x 37 D 3.5 H x 1.45 W x 1.45 D
Push Button 16 0.63
Weight kg lbs

RST410 Man Down Kit Physical

Dimensions mm inches
Outer Box Carton 290 W x 170 L x 40 H 11.42 W x 6.69 L x 1.57 W
Kit Contents
2 x Energizer® AA Battery
1 x I/O Cable
RST400 Man Down Pendant
RST401 Interface Box
RST405 Windshield Mount Gateway
RST410 User Manual
RST410 Quick Start Guide

Brochures

Brochure RST410 Man Down Kit

For more information please download our RST410 Man Down Kit Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support

Accessories

Iridium Man Down Kit 8 RST401 Interface Box RST404 Gateway Serial Adaptor

RST400

$413USD*

Man Down Pendant

RST401

$195USD*

Interface Box

RST404

$395USD*

Gateway Serial Adaptor

RST405 Windscreen Gateway

RST405

$395USD*

Windscreen Gateway





* Manufacturers Suggested US Dollar ($USD) Retail Price, Excluding Freight, Taxes and Duties from Australia. Contact a Reseller for your local price.
