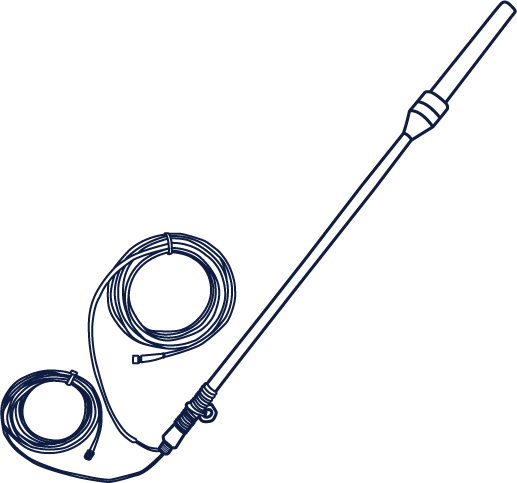

Iridium Beam Whip Dual Mode Antenna (RST706B)
MSRP $795 USD
GPS / Iridium Beam Bull Bar mountable / 4WD / RV Iridium antenna. Spring base.
Perfect for Beam Extreme Docks and comes with 5m antenna cable attached
Iridium Beam Whip Dual Mode Antenna Features
The whip design provides for increased roofline clearance and is designed to be extremely flexible in its installation options, from bull bars, roof racks or pole mounts.
The antenna includes 5m of both Iridium and GPS antenna cable, making the RST706 a very cost effective solution.
The antenna includes 5m of both Iridium and GPS antenna cable, making the RST706 a very cost effective solution.
Key Features
• Iridium approved
• Designed for harsh environments
• Dual mode GPS / Iridium
• Manufactured in the USA
• Includes 5m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
• Designed for harsh environments
• Dual mode GPS / Iridium
• Manufactured in the USA
• Includes 5m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
Iridium Beam Whip Dual Mode Antenna Specifications
General
| Antenna | Iridium | GNSS (GPS) |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3dB Max at boresight | 3dB Max |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ≤ 2.0 : 1 | ≤ 2.0 : 1 |
| Power Handling | 10 Watts | 1 Watt |
| Amplifier Gain | 26 ± 2dB | |
| Voltage | 3.3 VDC (35mA) | |
| Noise Figure | 2.5dB Max | |
| Altitude | 6,000m/20,000ft | 6,000m/20,000ft |
| Cable | Includes 5m or 16.4ft of LMR240 | Includes 5m or 16.4ft of LMR240 |
Frequency
| Iridium | 1616 – 1626 MHz |
| GNSS (GPS) | 1575 ± 10 MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +85°C | -40°F to 185°F |
Physical
| Dimensions | mm | inches |
| Antenna | 772.16 H x 38.1Dia | 30.4 H x 1.5Dia |
| Box | 870 W x 190 D x 65 H | 34.25 W x 7.48 D x 2.56 H |
| Weight | kg | lbs |
| Weight | 0.8 | 1.8 |
| Box | 1.3 | 2.87 |
Connectors
| Iridium | SMA Male |
| GNSS (GPS) | SMA Male |
Brochures
Brochure RST706 Whip Dual Mode Antenna
For more information please download our RST706 Dual Mode Whip Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
