Beam Power Backup Kit - DISCONTINUED (RST068)

RST068-Beam-Power-Backup-Kit-01

Beam Communications undertakes warranty and out of warranty servicing across our extensive product range.
For further information on our servicing process, warranty items and conditions please click on the button below.

Frequently Asked Questions

Powering Up/Restarting

Q.The power bank is not charging
A.

The power bank may stop charging for several reasons.

If the temperature is beyond the safe charging limits charging is disabled.

The power bank has a built in safety feature that manages the charging activity.

To maintain the normal operating performance of the power bank make sure that the ambient temperature is within its specified operating temperature - refer to the specs page.



Q.How do I know the charge level of the power bank?
A.

Quick and momentary press of the ON/Off switch will display the battery charge level in percentage.

Q.The power bank does not seem to charge my wearable device
A.

The Power bank has an X-Charge mode that allows charging of low power devices like wearables.

A quick double press of the On/Off Switch enables the X-Charge Mode.  The display will show the symbol X.  A quick double press of the On/Off Switch exits the X-Charge mode as well to resume charging other devices.

Q.How many charge cycles does the RST066 battery has?
A.

The RST066 has a over 500 full charge-discharge cycles.

Q.What is the Standby and Talk Time hours for the RST068 with Beam Docks and Terminals?
A.

The RST068 has a similar capacity as the RST060 Battery Back Up.

You may use the RST060 Standby and Talk Time Hours estimate for the RST068 Battery Life when used with Beam Docks and Terminals.

RST060 RST068 BatteryLife

Shipping/Compliance

Q.Can I carry the power bank on the plane?
A.

The Power bank can be safely carried on the plane as part of the carry on luggage as it is rated at 99.9Wh capacity.

Q.Is the RST068 Power Back Up kit water proof?
A.

The Power Bank is not water proof therefore all measures should be considered to keep it from being wet or exposed to high moisture environment.

Beam Power Backup Kit - DISCONTINUED Specifications

PHYSICAL SPECIFICATIONS

Dimensions (L x W x H) mm inches
SuperTank 119 x 73 x 40 4.7 x 2.8 x 1.6
AC Charger 58 x 58 x 28 2.28 x 2.28 x 1.1
DC Charger 66 x 26 x 26 2.6 x 1.02 x 1.02
Beam Intelligent Power Cable 1200 39.93
RST068 Box Kit 180L x 165W x 120H 7.08L x 6.49W x 4.72H
Weight kg lbs
SuperTank 0.5 1.1
RST068 Box Kit 1.2 2.64

POWER SPECIFICATION

SuperTank Battery Input/Output: USB-C 1: 5-20V, up to 5A, 100W* (PD) Output: USB-C 2: 5-20V, up to 3A, 60W (PD) Output: USB 1: 5V/3A, 9V/2A, 12V/1.5A, 18W (ZEN+ 2.0 Quick Charge) Output: USB 2: 5V/3A, 15W (ZEN+ Quick Charge)
AC Charger (60W) Input: 100Vac to 240Vac 50/60Hz 1.3A US plug (comes with Intl. Adapters EU/GB/AU) Output: USB-C PD (5Vdc @3A, 9Vdc @3A, 15Vdc @3A, 20Vdc @3A) Typical charging time of SuperTank – under 2 hours
DC Charger (36W) Input 1: 12Vdc or 24Vdc (4A max) Output 1: USB-A 18W (4.5Vdc @3A, 5Vdc @4.5A, 9Vdc @3A, 12Vdc @2.5A) Output 2: USB-C PD 18W (5Vdc @3A, 9Vdc @3A, [email protected], 15Vdc @2A, 20Vdc @1.5A) Typical charging time of SuperTank – under 6 hours
Beam Intelligent Power Cable Input: USB-C PD 2.0 Output: Molex **15Vdc 3.25A
*Reduces to 60W when Power Bank capacity is below 50% in Output mode. **Output drops to 12Vdc when 15Vdc input is not available

ENVIRONMENTAL SPECIFICATIONS

Temperature Degrees °C Degrees °F
SuperTank
Storage -20 to +65 -4 to +149
Operating (Charging) 0 to +40 +32 to +104
Operating (Discharging) 0 to +55 +32 to +131
AC Charger
Storage -20 to +80 -4 to +176
Operating 0 to +40 +32 to +104
DC Charger
Storage -40 to +70 -40 to +158
Operating -10 to +55 +14 to +131
Beam Intelligent Power Cable
Storage -20 to +80 -4 to +176

INTERFACE

SuperTank
Visual Interface Digital LED
Physical Interface Power On/Off/X-Mode Button
DC Charger
Visual Interface Blue LED

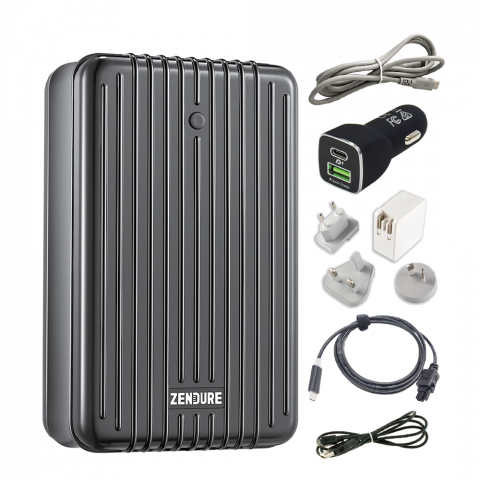

KIT CONTENTS

RST066 SuperTank (includes 100W USB-C Cable)
AC Charger (US Plug with international adaptors for EU/GB/AU)
DC Charger
Beam Intelligent Power Cable (1.2 m / 3.93 ft)
IsatPhone Charging Cable
Quick Start Guide

Manuals & Guides

Beam Power Backup Kit Quick Start Guide

For more information please download our RST068 Beam Power Backup Kit Quick Start Guide.
Download
