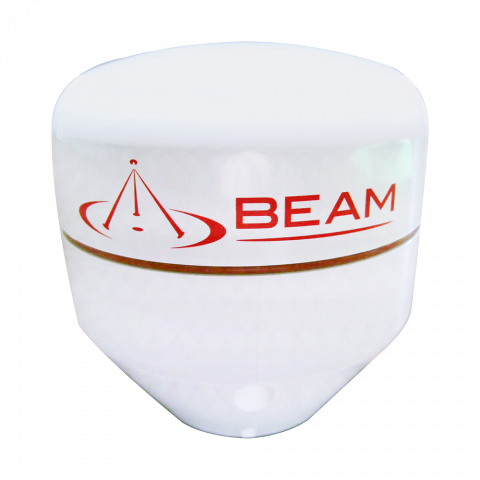

Beam Mast GPS Antenna Active - DISCONTINUED (RST700)
Beam Communications undertakes warranty and out of warranty servicing across our extensive product range.
For further information on our servicing process, warranty items and conditions please click on the button below.
Beam Mast GPS Antenna Active - DISCONTINUED Specifications
General
| Polarization | Right Hand Circular |
| Axial Ratio | 1.5db Max |
| Amplifier | < 1.5:1 |
| Noise Figure | 2.5db Max |
| Impedance | 50 Ohms |
| VSWR | < 2.0 : 1 |
| Band Rejection | 30db @ 1535 MHz 60db @ 1615 MHz |
| Power handling | 1 Watt (including in-band) |
| Altitude | 16,764m/55,000ft |
Frequency
| Iridium | 1575 ± 10MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -55° to +85° | -67° to 185° |
Physical
| Colour | White | |
| Finish | Weatherable Polymer | |
| Dimensions | mm | inches |
| Antenna | 80.52H x 76.2Dia | 3.17H x 3Dia |
| PVC Pole | 305 | 12.0 |
| Weight | kg | lbs |
| Antenna Weight | 0.2 | 0.5 |
Connector
| Connector | SMA Female |
Manuals & Guides
Installation Guide RST700 Active GPS Antenna
For more information please download our RST700 Active GPS Antenna Installation Guide.
Download
Specifications RST700 Active GPS Antenna
For more information please download our RST700 Active GPS Antenna Specifications.
Download
