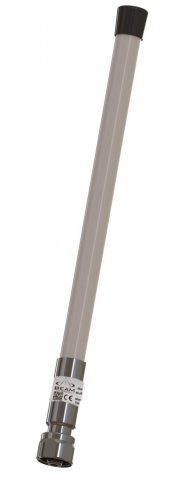

Beam Marine Stick Antenna (LTE710)

The Beam LTE710 Stick Antenna is a high gain omni directional marine antenna ideal to get the best possible coverage at sea (eg near cost vessels). The antenna can also be deployed for land applications such as, M2M/IoT installations.

Beam Marine Stick Antenna Features

Features

• High Quality UHF antenna for professional use
• Compact and light weight design
• Multiband:
    • 5G 700/800/900/1500/1800/2100/2600/3500 MHz
    • LTE 450/700/800/1800/1900/2600 MHz
    • GSM 450/850/900/1800/1900 MHz
    • UMTS 700/800/900/2100 MHz
    • WiFi 2.4 GHz

Beam Marine Stick Antenna Specifications

PHYSICAL

Colour	White and chrome
Material	UV Protected PC, PTFE, PE and Chromed Solid Brass
Mounting Mast or Rail (mm)	Ø 10 - 30
Dimensions	mm (L x W x H)	inches (L x W x H)
Unit	495 L x 31.90 D	19.48 L x 1.25 D
Packing Dimensions	510 x 350 x 60	20.07 x 13.77 x 2.36
Weight	kgs	lbs
Unit	0.3	0.6
Packing Weight	1	2.2

ENVIRONMENTAL

Temperature	Degrees ºC	Degrees ºF
Operating	-55° to +70°	-67° to 158°

SPECIFICATIONS

Frequency (MHz)	450 - 470 MHz, 698 - 960 MHz, 1427 - 1518 MHz, 1710 -2170 MHz, 2500 - 2690 MHz, 3300 - 3800 MHz
Gain (dBi)	3 dB (Marine), 0 dBd, 2.15 dBi (450- 470/698-960 MHz) 6 dB (Marine), 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 10 dB (Marine), 7 dBd, 9.15 dBi (2412- 2690/3300-3800 MHz)
Polarization	Vertical
Antenna Type	Cellular/LTE
V.S.W.R (dB)	< 3.0:1 (450 - 470 / 790 - 960 MHz), < 2.5:1 (1427- 2690 MHz/ 3300 - 3800 MHz)
Impedance (ohm)	50
Radiation Pattern	Omni-Directional

Brochures

Brochure LTE710 Antenna

For more information please download our LTE710 Antenna Brochure.

Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support

Accessories

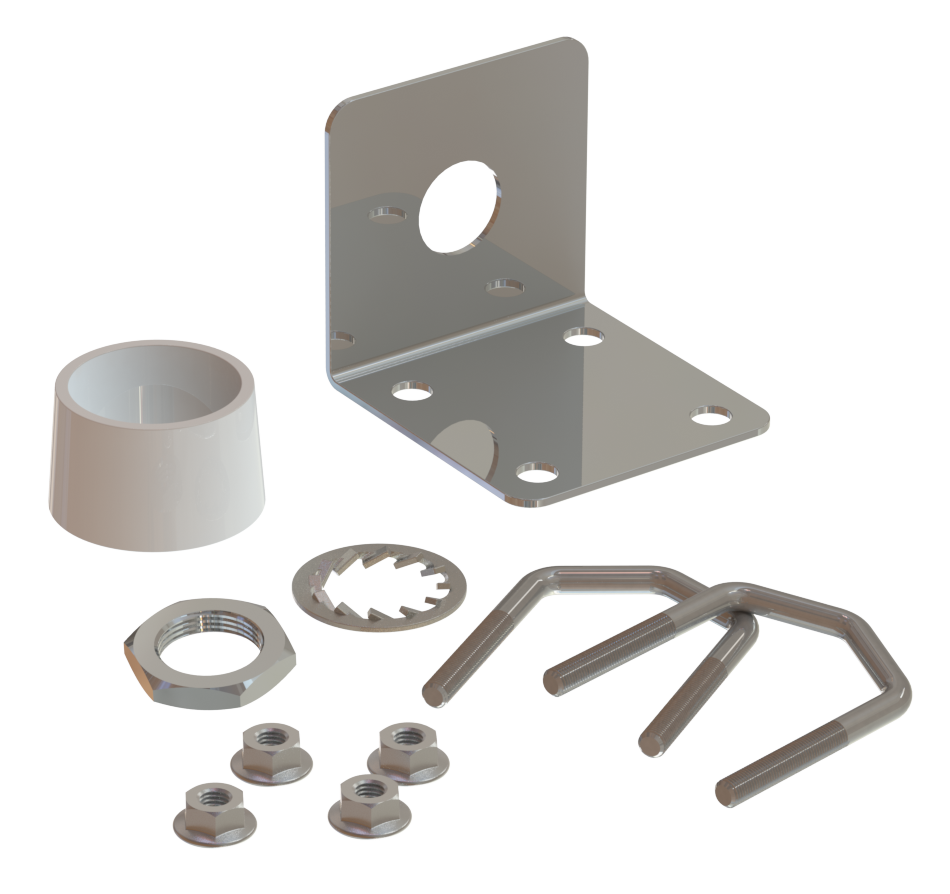

LTE141

Wall/Rail mount

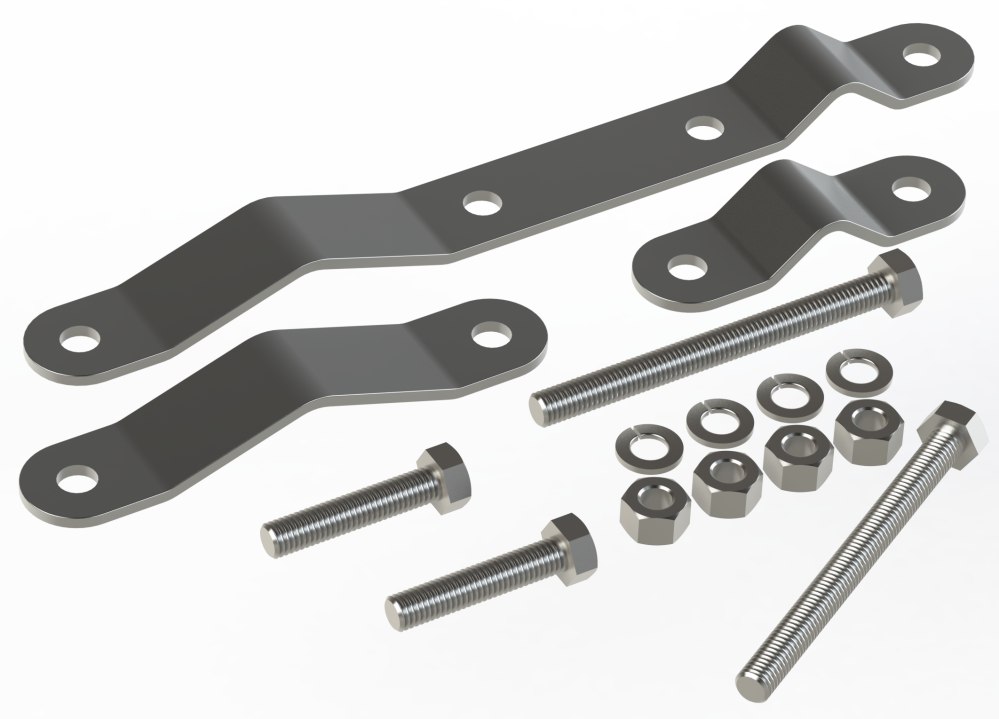

LTE191

Mast Universal mount
