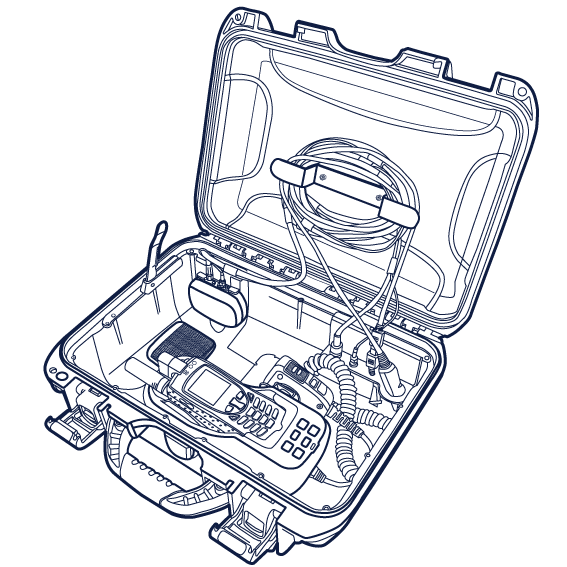

Iridium Extreme® PTT Grab ‘N’ Go Corded Kit (PTTGNG-C1)

MSRP $1,345 USD

The Beam iridium Extreme Push-To-Talk Grab ‘N’ Go Corded Kits are a cost-effective PTT solution.  The in-built DriveDOCK supports all features of the Iridium Extreme® PTT service complete with a speaker and microphone making it ideal for a range of applications

Read more product features
  • Docking
  • Supports PTT
  • Supports Voice via 9575
  • UPS Battery (optional)
  • All Weather Resistant Case
  • Dual Mode Antenna
  • AC/DC Power
  • Corded PTT Handset

Iridium Extreme® PTT Grab ‘N’ Go Corded Kit Features

Beam PTT Grab ‘N’ Go Corded solution provides clear and improved PTT audio quality via the loudspeaker in the corded handset. The PTT Grab ‘N’ Go Corded kit supports the Extreme® handset in either PTT mode or standard voice mode. The same set up is available in a large case with in-built UPS Battery or a small compact case*. * UPS Battery option is not available in the Small case.

Key Benefits and Features

• Durable speaker and mic handset
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Optional UPS battery kit
• Integrated Iridium and GPS Antenna
Kits
Iridium Extreme PTT Grab ‘N’ Go Corded + UPS Large Kit - PTTGNG-C1B
Iridium Extreme PTT Grab ‘N’ Go Corded Small Kit - PTTGNGS-C1

Similar items you may be interested in

Iridium Extreme® PTT Grab ‘N’ Go Corded Kit Specifications

DriveDOCK Extreme Power

Average Power Consumption Current @ 12VDC Watts
Rated Input 9-32V DC 2A max
Standby 70mA 0.84W
Transmit + Charging 0.7A 8.4W
Sleep Mode 5mA 60mW

DriveDOCK Extreme Environmental

Temperature Degrees °C Degrees °F
Operating Range -30°C to +70°C* -22°F to +158°F
Charging Range 0°C to 45°C # +32°F to 113°F
Storage -35°C to +85°C -31°F to 185°F
Operating Humidity Range < 85% RH non-condensing
Notes * When 9575 Battery is fully charged # Derived from the charging temperature range of the Iridium 9575 handset battery.

Corded Push-To-Talk Connectors/Interfaces

Speaker 1 Watt 8 Ohms

Beam Dual Mode MAG Antenna Environmental

Temperature Degrees °C Degrees °F
Operating Temp -40°C to +70°C -40°F to 158°F

Beam Dual Mode Antenna Frequency

Iridium 1616 – 1626MHz
GPS 1575.42 ± 5MHz

PTT Grab ‘N’ Go Case Physical

Dimensions mm inches
Case 401L x 307W x 173H 15.8L x 12.1W x 6.8H

BLUETOOTH® Legal

Bluetooth® The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners.

Brochures

PTT Grab 'N' Go Cases Kit Brochure

For more information please download our PTT Grab 'N' Go Cases Kit Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
