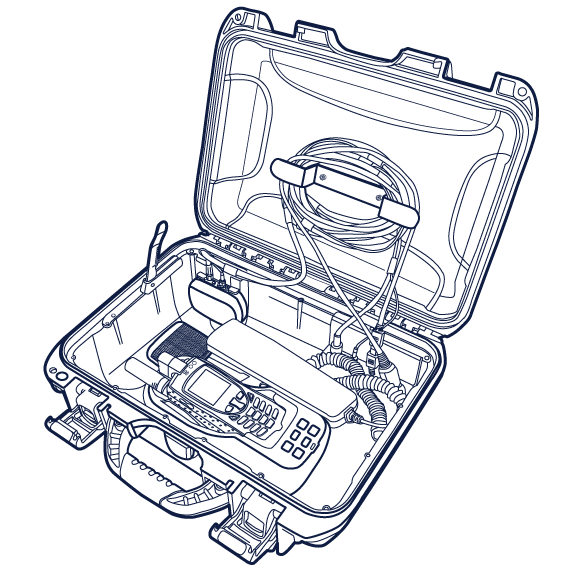

Iridium Extreme® PTT Grab ‘N’ Go Privacy Handset Kit (PTTGNG-P)

MSRP $1,395 USD

The Beam Iridium Extreme Push-To-Talk Grab ‘N’ Go Privacy handset kit is an alternative solution that has the ability to receive audio via push of a button to the iridium PTT Extreme device when paired with the Beam DriveDOCK.

Read more product features
  • Privacy Handset
  • Docking
  • Supports PTT
  • Supports Voice via 9575
  • UPS Battery (optional)
  • All Weather Resistant Case
  • Dual Mode Antenna
  • AC/DC Power

Iridium Extreme® PTT Grab ‘N’ Go Privacy Handset Kit Features

The Beam PTT Grab ‘N’ Go Privacy Handset solution provides clear and improved PTT audio quality via the loudspeaker when cupped and it allows for private conversations when un-cupped. The PTT Grab ‘N’ Go kit supports the Extreme Handset in either PTT mode or standard voice mode. The same set up is available in a large case with in-built UPS battery.

Key Benefits and Features

• Durable speaker and mic handset
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Optional UPS battery kit
• Integrated Iridium and GPS Antenna

Kit
Iridium Extreme PTT Grab ‘N’ Go Privacy + UPS Handset Kit - PTTGNG-PB

Similar items you may be interested in

Iridium Extreme® PTT Grab ‘N’ Go Privacy Handset Kit Specifications

DriveDOCK Extreme Power

Average Power Consumption Current @ 12VDC Watts
Rated Input 9-32V DC 2A max
Standby 70mA 0.84W
Transmit + Charging 0.7A 8.4W
Sleep Mode 5mA 60mW

DriveDOCK Extreme Environmental

Temperature Degrees °C Degrees °F
Operating Range -30°C to +70°C* -22°F to +158°F
Charging Range 0°C to 45°C # +32°F to 113°F
Storage -35°C to +85°C -31°F to 185°F
Operating Humidity Range < 85% RH non-condensing
Notes * When 9575 Battery is fully charged # Derived from the charging temperature range of the Iridium 9575 handset battery.

Privacy Handset Physical

Dimensions mm inches
Cable Cord (relaxed length) 595 23.43

Beam Dual Mode MAG Antenna Environmental

Temperature Degrees °C Degrees °F
Operating Temp -40°C to +70°C -40°F to 158°F

Beam Dual Mode Antenna Frequency

Iridium 1616 – 1626MHz
GPS 1575.42 ± 5MHz

PTT Grab ‘N’ Go Case Physical

Dimensions mm inches
Case 401L x 307W x 173H 15.8L x 12.1W x 6.8H

BLUETOOTH® Legal

Bluetooth® The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners.

Brochures

PTT Grab 'N' Go Cases Kit Brochure

For more information please download our PTT Grab 'N' Go Cases Kit Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
