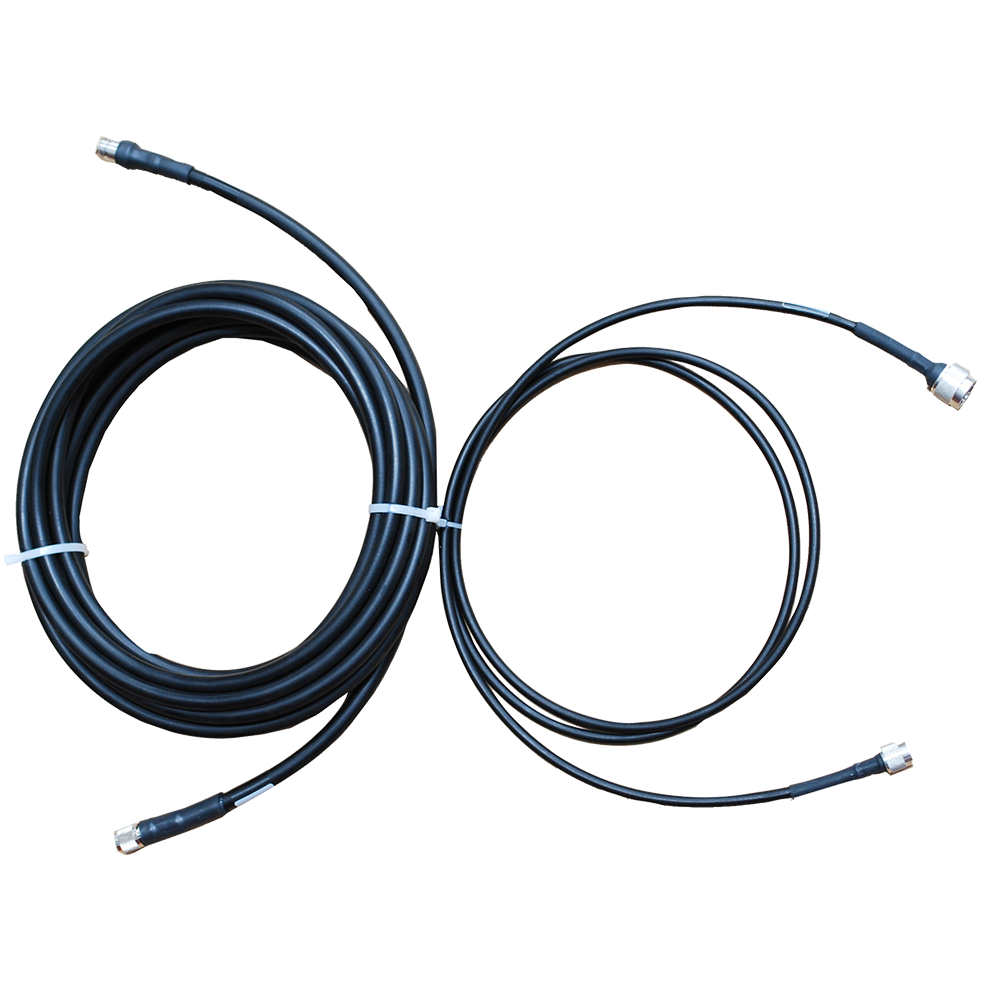

Iridium Beam Passive Antenna Cable Kit - 9m/29.5ft (RST930)
Beam RST930 Iridium 9 meter (29 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.
Iridium Beam Passive Antenna Cable Kit - 9m/29.5ft Features
Features
• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested
• Assembled in Australia
Download Certificate of Origin
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested
• Assembled in Australia
Iridium Beam Passive Antenna Cable Kit - 9m/29.5ft Specifications
Main Cable (Passive)
| Length | m | feet |
| Main Cable | 7 | 22.97 |
| Dimensions | mm | inches |
| Bend Radius | 25.4 | 1.0 |
| Bend Radius - repeated | 101.6 | 4.0 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Fly-Lead (Passive)
| Length | m | feet |
| Fly-Lead | 2 | 6.56 |
| Dimensions | mm | inches |
| Bend Radius | 19.01 | 0.75 |
| Bend Radius - repeated | 63.5 | 2.5 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Connectors
| Main Cable | TNC-Male to N-Female |
| Fly-Lead | N-Male to TNC-Male |
Total Kit Weight
| kg | lbs |
| 0.80 | 1.76 |
Iridium Beam Passive Antenna Cable Kit - 9m/29.5ft Features
Features
• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested
• Assembled in Australia
Download Certificate of Origin
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested
• Assembled in Australia
Iridium Beam Passive Antenna Cable Kit - 9m/29.5ft Specifications
Main Cable (Passive)
| Length | m | feet |
| Main Cable | 7 | 22.97 |
| Dimensions | mm | inches |
| Bend Radius | 25.4 | 1.0 |
| Bend Radius - repeated | 101.6 | 4.0 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Fly-Lead (Passive)
| Length | m | feet |
| Fly-Lead | 2 | 6.56 |
| Dimensions | mm | inches |
| Bend Radius | 19.01 | 0.75 |
| Bend Radius - repeated | 63.5 | 2.5 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Connectors
| Main Cable | TNC-Male to N-Female |
| Fly-Lead | N-Male to TNC-Male |
Total Kit Weight
| kg | lbs |
| 0.80 | 1.76 |
