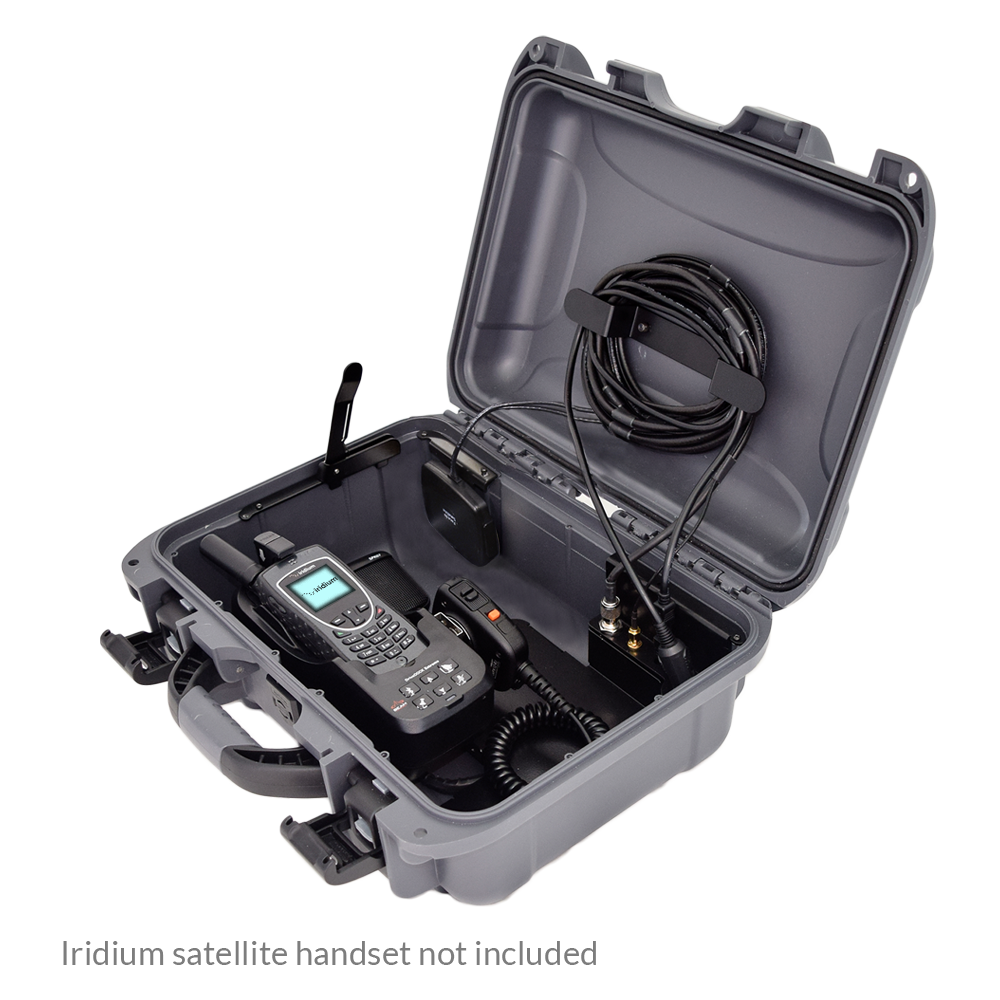

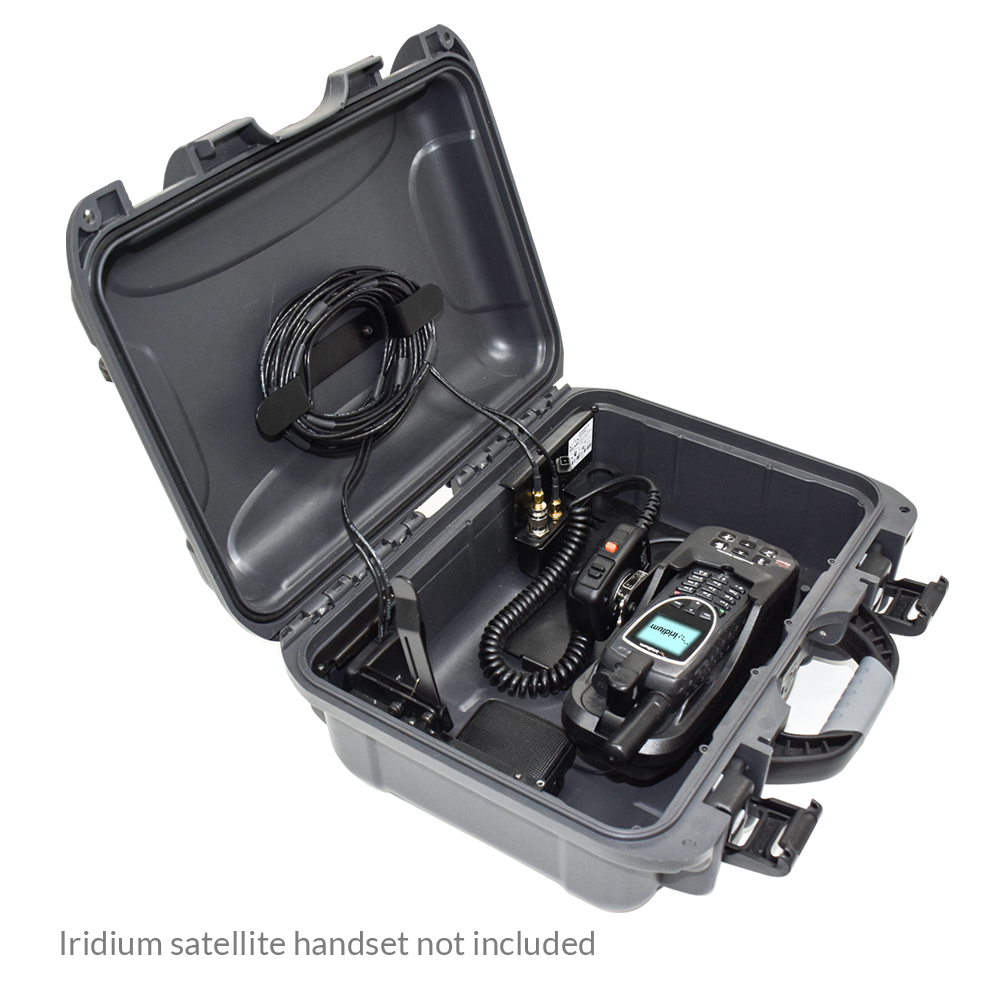

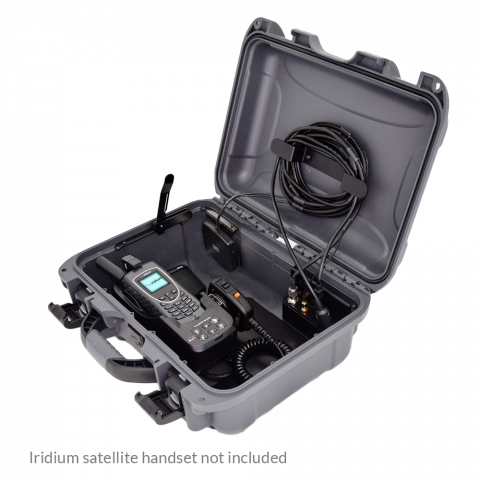

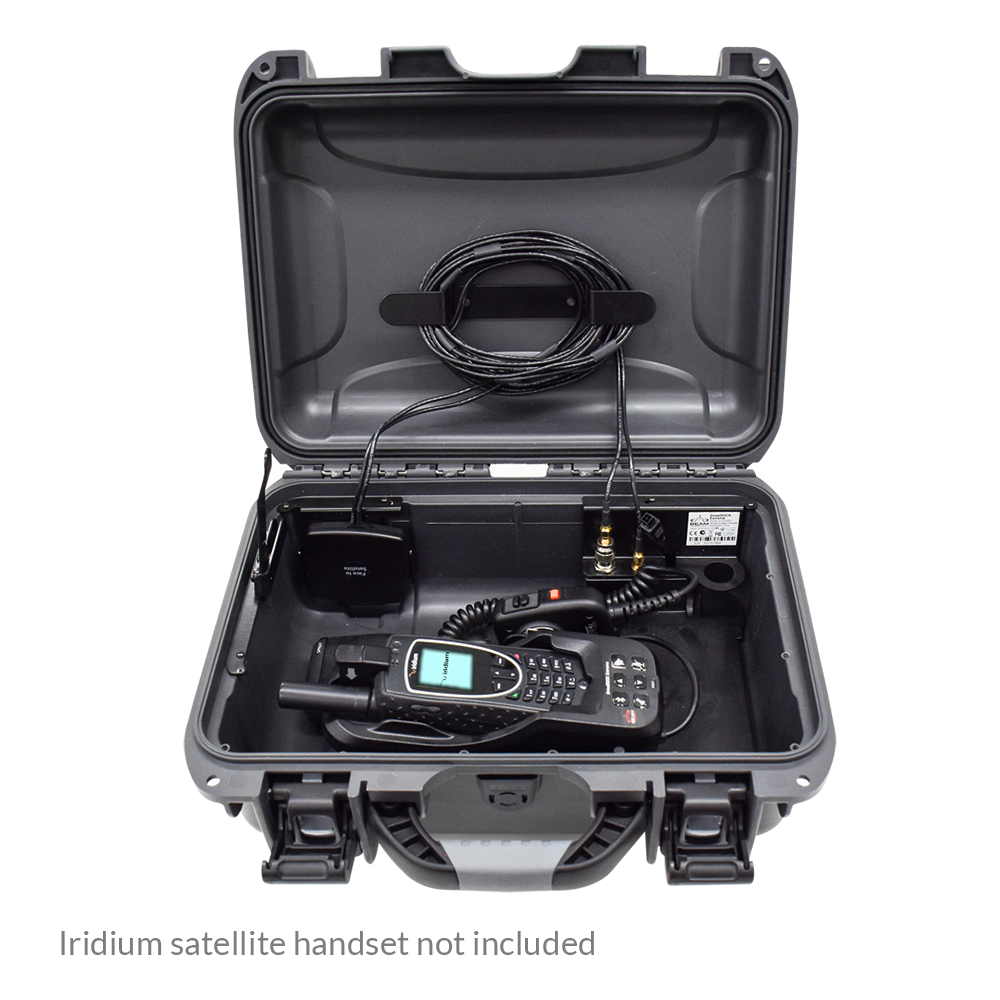

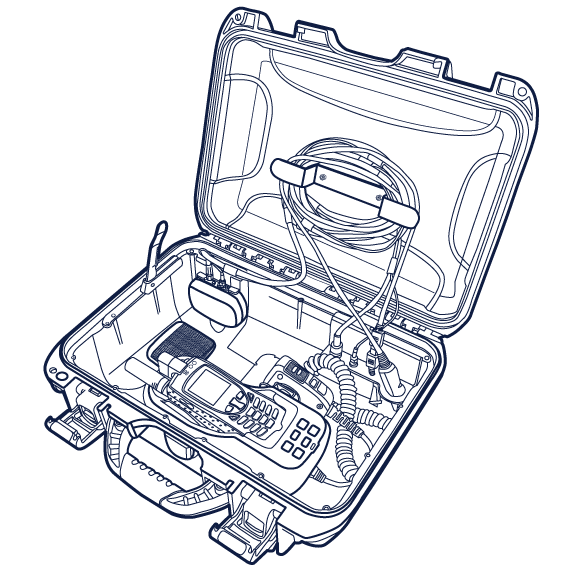

Iridium Extreme® PTT Grab ‘N’ Go Corded Kit (PTTGNG-C1)
The Beam iridium Extreme Push-To-Talk Grab ‘N’ Go Corded Kits are a cost-effective PTT solution. The in-built DriveDOCK supports all features of the Iridium Extreme® PTT service complete with a speaker and microphone making it ideal for a range of applications
- Docking
- Supports PTT
- Supports Voice via 9575
- All Weather Resistant Case
- Dual Mode Antenna
- AC/DC Power
- Corded PTT Handset
Iridium Extreme® PTT Grab ‘N’ Go Corded Kit Features
Beam PTT Grab ‘N’ Go Corded solution provides clear and improved PTT audio quality via the loudspeaker in the corded handset. The PTT Grab ‘N’ Go Corded kit supports the Extreme® handset in either PTT mode or standard voice mode.
Key Benefits and Features
• Durable speaker and mic handset
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Integrated Iridium and GPS Antenna
• Includes 5m dual mode antenna
Kits
Iridium Extreme PTT Grab ‘N’ Go Corded Small Kit - PTTGNGS-C1
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Integrated Iridium and GPS Antenna
• Includes 5m dual mode antenna
Kits
Iridium Extreme PTT Grab ‘N’ Go Corded Small Kit - PTTGNGS-C1
Similar items you may be interested in
This Iridium Extreme Beam RapidSAT with Privacy Handset solution provides clear and improved audio quality ...
View product
This Beam PTT Grab 'N' Go Corded + UPS solution provides clear and improved PTT ...
View product
Iridium Extreme® PTT Grab ‘N’ Go Corded Kit Specifications
DriveDOCK Extreme Power
| Average Power Consumption | Current @ 12VDC | Watts |
| Rated Input | 9-32V DC | 2A max |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 5mA | 60mW |
DriveDOCK Extreme Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C* | -22°F to +158°F |
| Charging Range | 0°C to 45°C # | +32°F to 113°F |
| Storage | -35°C to +85°C | -31°F to 185°F |
| Operating Humidity Range | < 85% RH non-condensing | |
| Notes | * When 9575 Battery is fully charged | # Derived from the charging temperature range of the Iridium 9575 handset battery. |
Corded Push-To-Talk Connectors/Interfaces
| Speaker | 1 Watt 8 Ohms |
Beam Dual Mode MAG Antenna Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +70°C | -40°F to 158°F |
Beam Dual Mode Antenna Frequency
| Iridium | 1616 – 1626MHz |
| GPS | 1575.42 ± 5MHz |
PTT Grab ‘N’ Go Case Physical
| Dimensions | mm | inches |
| Case | 401L x 307W x 173H | 15.8L x 12.1W x 6.8H |
BLUETOOTH® Legal
| Bluetooth® | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
Brochures
Brochure Iridium Extreme PTT Grab 'N' Go Kits
For more information please download our Iridium Extreme PTT Grab 'N' Go Kits Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
