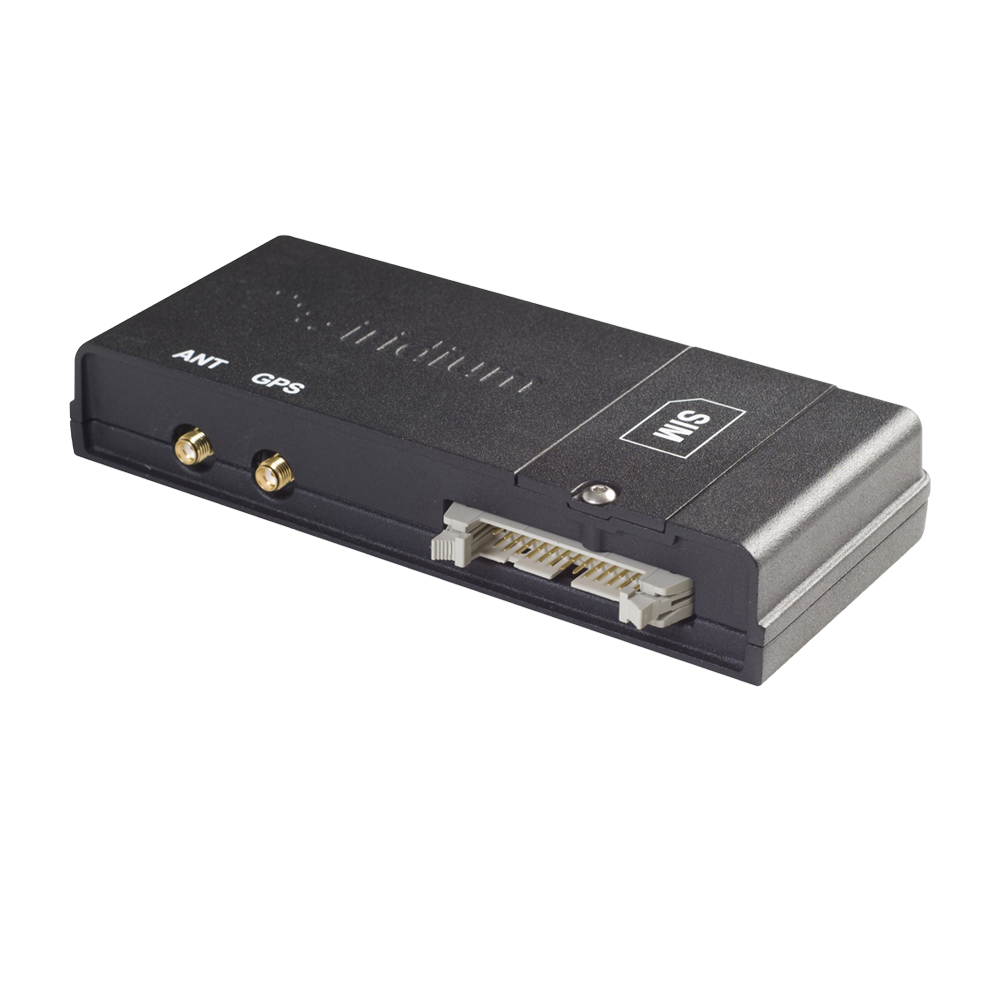

Iridium L-Band Transceiver 9522B (LBT9522B)
The 9522B is Iridium’s 2nd-generation satellite transceiver for truly global voice and data communications. It is ideal for sending and receiving voice and data from equipment everywhere on the planet.
- Data
- Voice
- SBD
- SIM
Iridium L-Band Transceiver 9522B Features
Integrated Solution
It easily integrates into a wide variety of applications through a RS232 serial interface and AT command set, and a pass-thru connector allows a GPS receiver to use the same antenna as the Iridium 9522B LBT.
The 9522B functionality supports
Voice Telephony
Short Burst Data (SBD) and Circuit Switched Data
Short Message Service (SMS)
