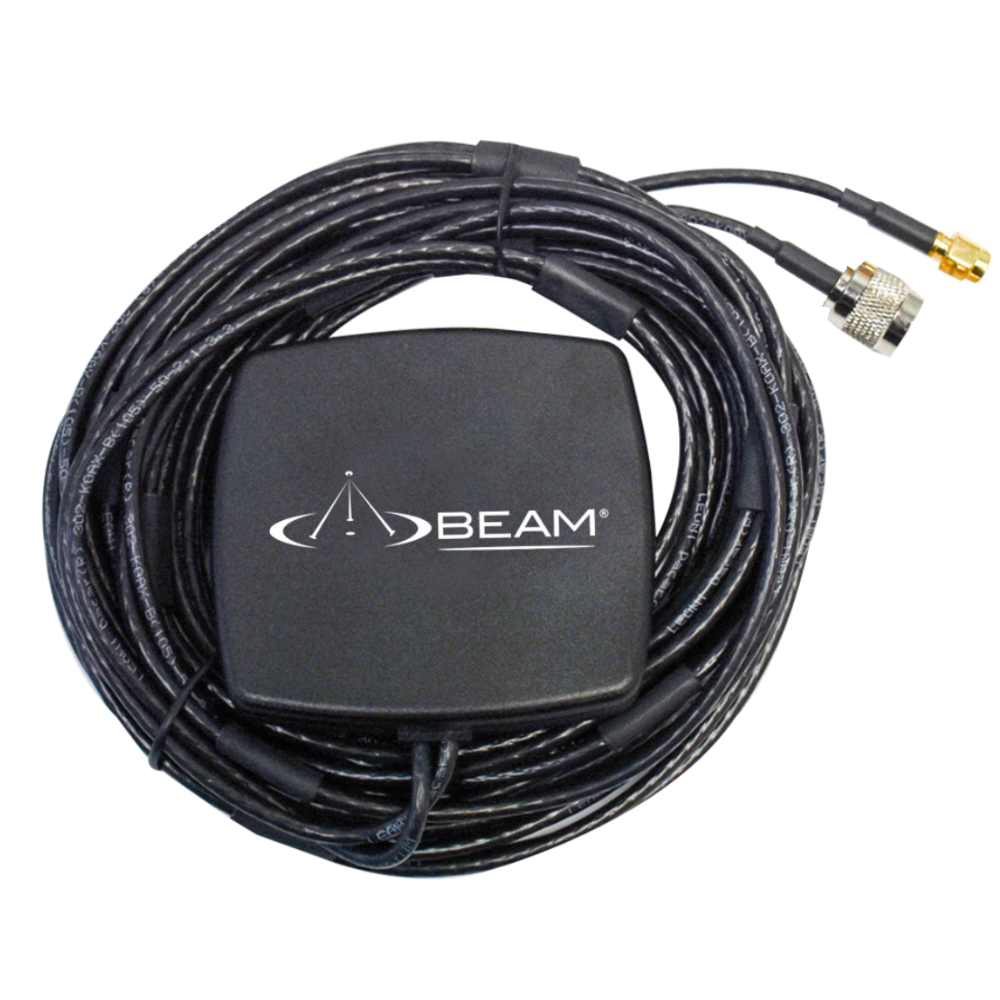

Beam Magnetic Dual Mode Antenna (Lightweight) (RST250)
The Beam RST250 Magnetic Dual Mode Antenna (Lightweight) is designed for land-based vehicular applications or in locations where a temporary antenna installation may be required. The RST250 antenna is designed for lightweight land-based vehicles.
- GPS
Beam Magnetic Dual Mode Antenna (Lightweight) Features
Key Benefits and Features
• Iridium Approved
• Dual Mode Iridium / GNSS (GPS/QZSS/Galileo)
• Small and Lightweight
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67)
• Ground Plane Independent
• Includes 5m of both GPS & Iridium antenna cables attached
• 12-Month Warranty
• Dual Mode Iridium / GNSS (GPS/QZSS/Galileo)
• Small and Lightweight
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67)
• Ground Plane Independent
• Includes 5m of both GPS & Iridium antenna cables attached
• 12-Month Warranty
Beam Magnetic Dual Mode Antenna (Lightweight) Specifications
PHYSICAL
| Colour | Black | |
| Material | ABS | |
| Mounting Type | Magnetic | |
| Dimensions | mm | inches |
| Antenna (L x W x H) | 80 x 74 x 15.7 | 3.15 x 3 x 0.5 |
| Box (L x W x H) | 165 x 150 x 84 | 6.5 x 6 x 3.3 |
| Weight | kg | lb |
| Antenna | 0.27 | 0.60 |
| Box | 0.36 | 0.80 |
ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating and Storage | -40 to +85 | -40 to 185 |
| IP Rating | IP67 |
GENERAL
| Antenna | Iridium | GNSS (GPS) |
| Frequency | 1616 -1626.5 MHz | 1575.42 ± 5MHz |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3dB Max | NA |
| Amplifier Gain | Passive | 28 @ 2.7 V |
| Voltage | Passive | 1.5VDC - 3.6VDC |
| Current | Passive | 9 @ 2.7 V |
| Noise Figure | Passive | 1.8 @ 2.7 V |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ~1.2:1 | <=1.4:1 dB |
| Cable | 5m of DACAR 302 | 5m of DACAR 302 |
CONNECTORS
| Iridium | TNC-Male |
| GNSS (GPS) | SMA-Male |
Brochures
Brochure RST250 Magnetic Dual Mode Antenna
For more information please download our RST250 Magnetic Dual Mode Antenna Brochure.
Download brochure
