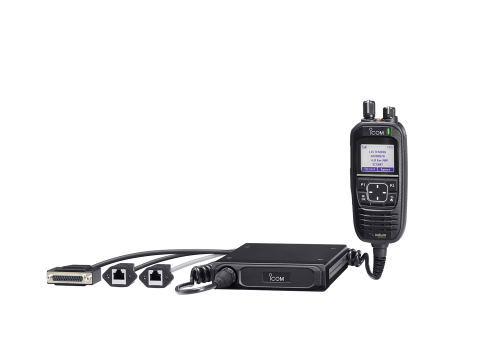

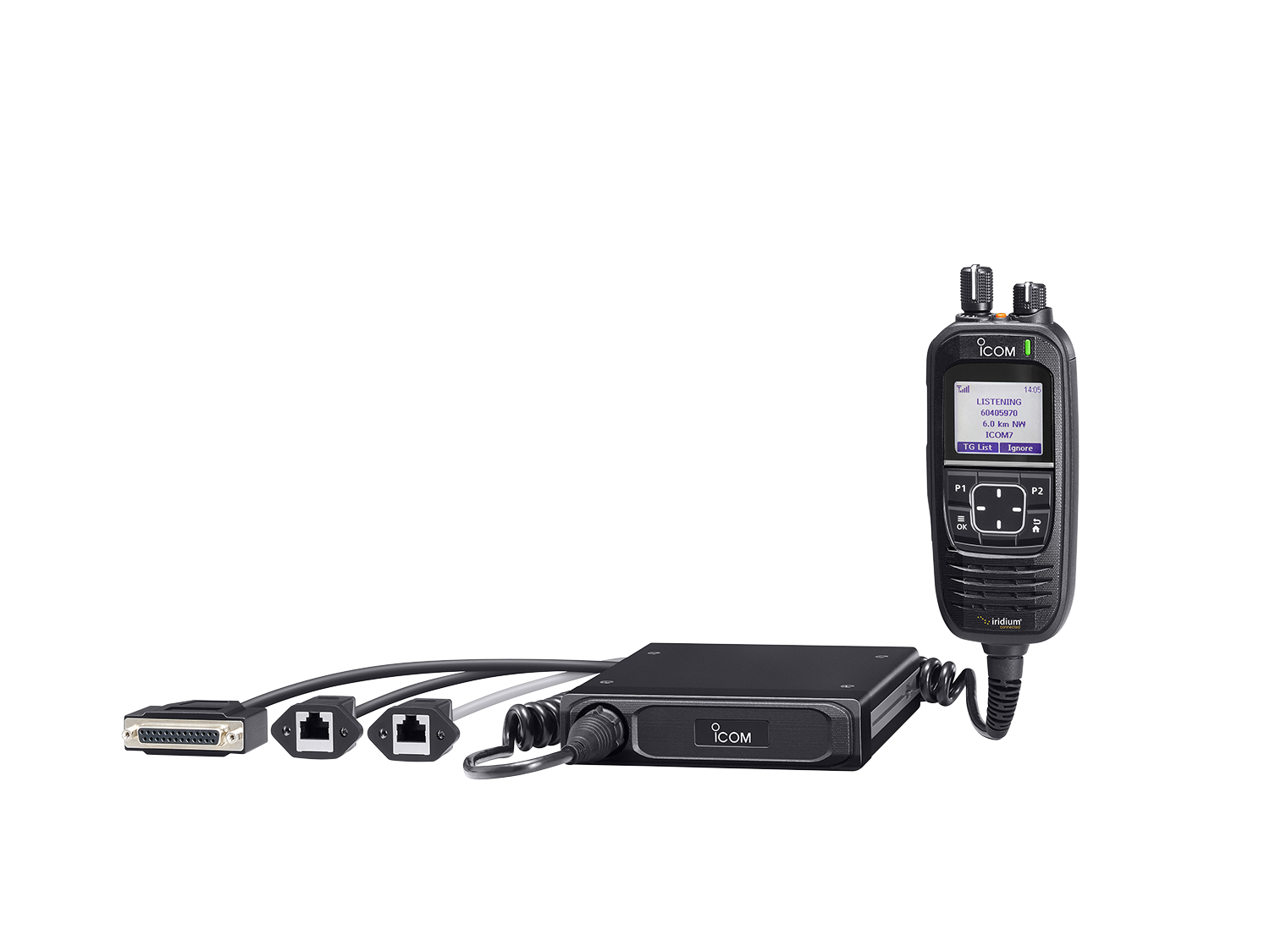

Icom Fixed in Vehicle / Building Satellite PTT terminal (IC-SAT100M-NBT)
The IC-SAT100M is a PTT satellite radio designed for fixed mount operations. Unlike handheld satellite radios, users with the IC-SAT100M do not need to stay outside for a clear view of the sky for a stable communication connection. This global satellite mobile radio's design easily provides coverage from vehicle to in-building use. The IC-SAT100M is backed by the Iridium® satellite network, covering the earth including both poles for a true wide-area global communication solution.
- Speakerphone
- Alert
- Instant Message
- Signal
- LCD
- Supports PTT
- AC/DC Power
- Corded PTT Handset
- External PTT Antenna
Icom Fixed in Vehicle / Building Satellite PTT terminal Features
Interoperability with Conventional Radios

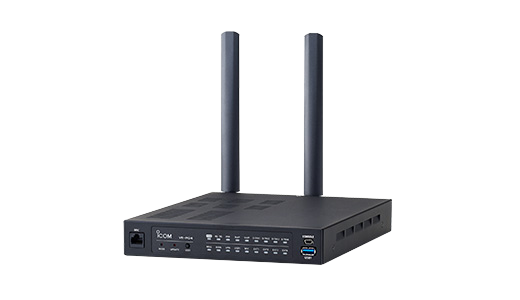

With a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with other communication systems, including*:
- IP phones
- WLAN and LTE
- IDAS digital
- Analogue transceivers
* Supports Type-D multi-site trunking and conventional systems.
Key Benefits and Features
- Easy wiring between the antenna unit (with RF unit) and main unit using a LAN cable (Cat 5e)*1
- Compatible with both 13.2 V and 26.4 V DC vehicle power sources
- Voice recording function
- Multiple language display (English, Chinese, French, Japanese, and Spanish)
- Integrated GPS receiver shows received signal position
- Short Data Message
- AES 256-bit encryption for security
- Tested to MIL-STD-810 environmental standards
Icom Fixed in Vehicle / Building Satellite PTT terminal Specifications
General
| Frequency range | 1616 MHz to 1626.5 MHz |
| Talkgroup | 15 groups (maximum) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Power Supply Voltage | 13.2 V / 26.4 V DC (10.5–32 V DC) |
| Ingress Protection Standard | Dust & Water- IP67 (antenna with RF unit), IP55 (mic), IP54 (main unit) |
Physical
| Dimensions | mm | inches |
| Main Unit | 125 × 29 × 156.5 mm | 4.9 × 1.1 × 6.2 in |
| Antenna Unit | 76.8 × 200 × 76.8 mm | 3 × 7.9 × 3 in |
| Microphone | 59.5 × 134.6 × 30.1 mm | 2.3 × 5.3 × 1.2 in |
| Weight | g | lb |
| Main unit + Microphone | 1200 g | 2.6 lb |
| Antenna Unit | 500 g | 1.1 lb |
Audio
| Internal Speaker | 1500 mW typical (8 Ω load) |
| External Speaker | 4 W typical (4 Ω load) |
Kit Contents
| Main unit |
| Antenna unit with RF unit |
| Multi-functional speaker-microphone |
| OPC-2435 DC power cable |
| OPC-2102 LAN cable (20 m, 65.6 ft) |
| Mobile bracket for the main unit |
| Antenna angle and mounting kits |
Interfaces
| Antenna Connector | SMA (for external antenna) |
Accessories
 |
 |
 |
External Speakers |
AC Adapters |
Antennas |
