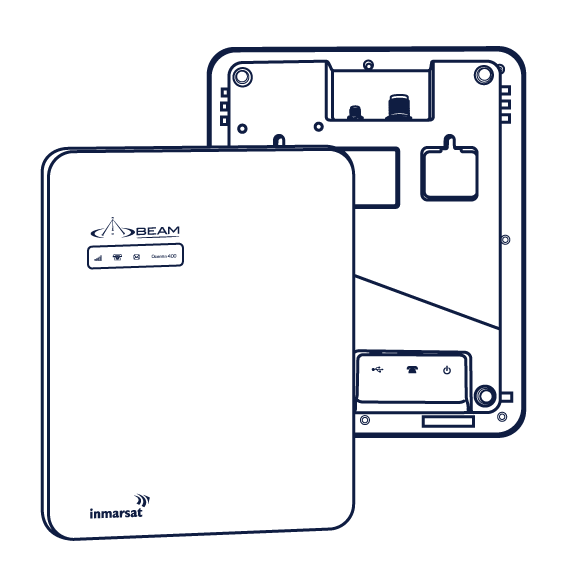

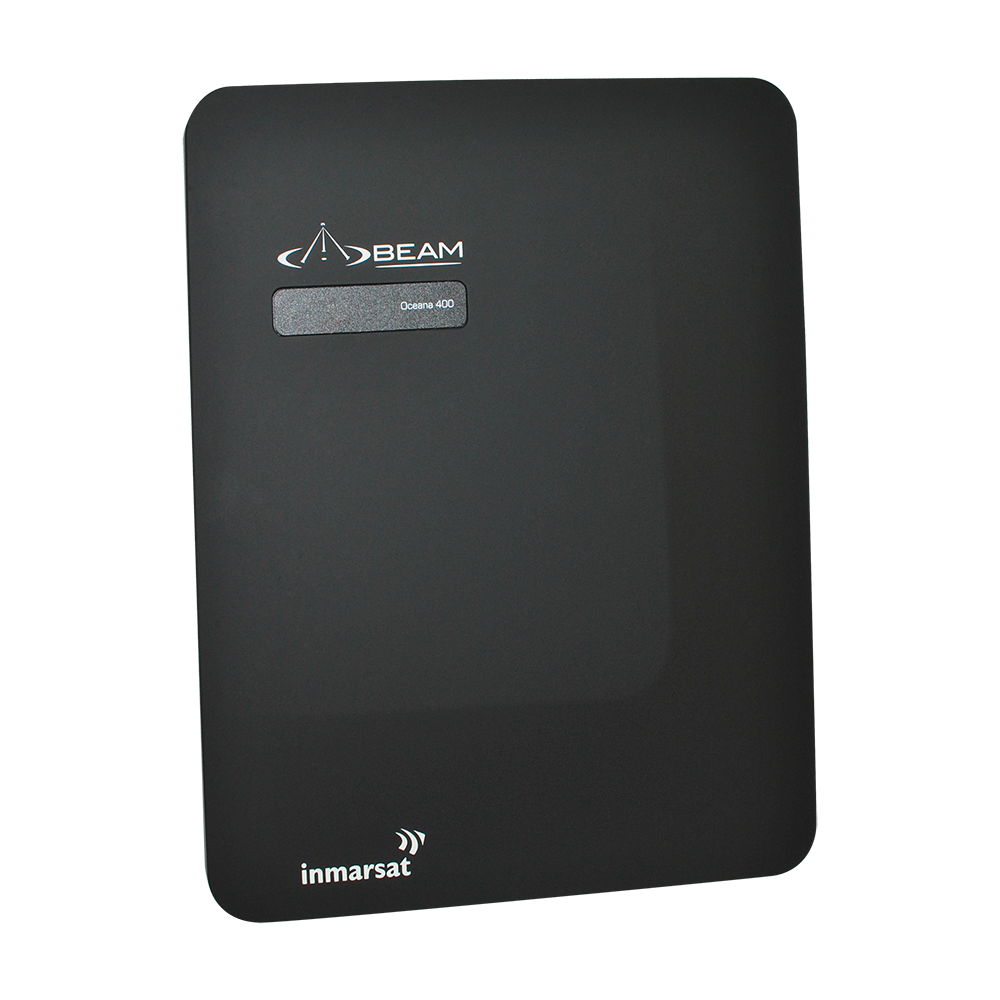

Oceana 400 (OC400)
MSRP $1,515 USD
Beam Oceana 400 is a cost-effective, high quality, slimline satellite terminal that allows connection to the Inmarsat GSPS, IsatPhone Link and FleetPhone satellite services.
- Data
- Voice
- SMS
- RJ11/POTS
- PABX Integration
- USB

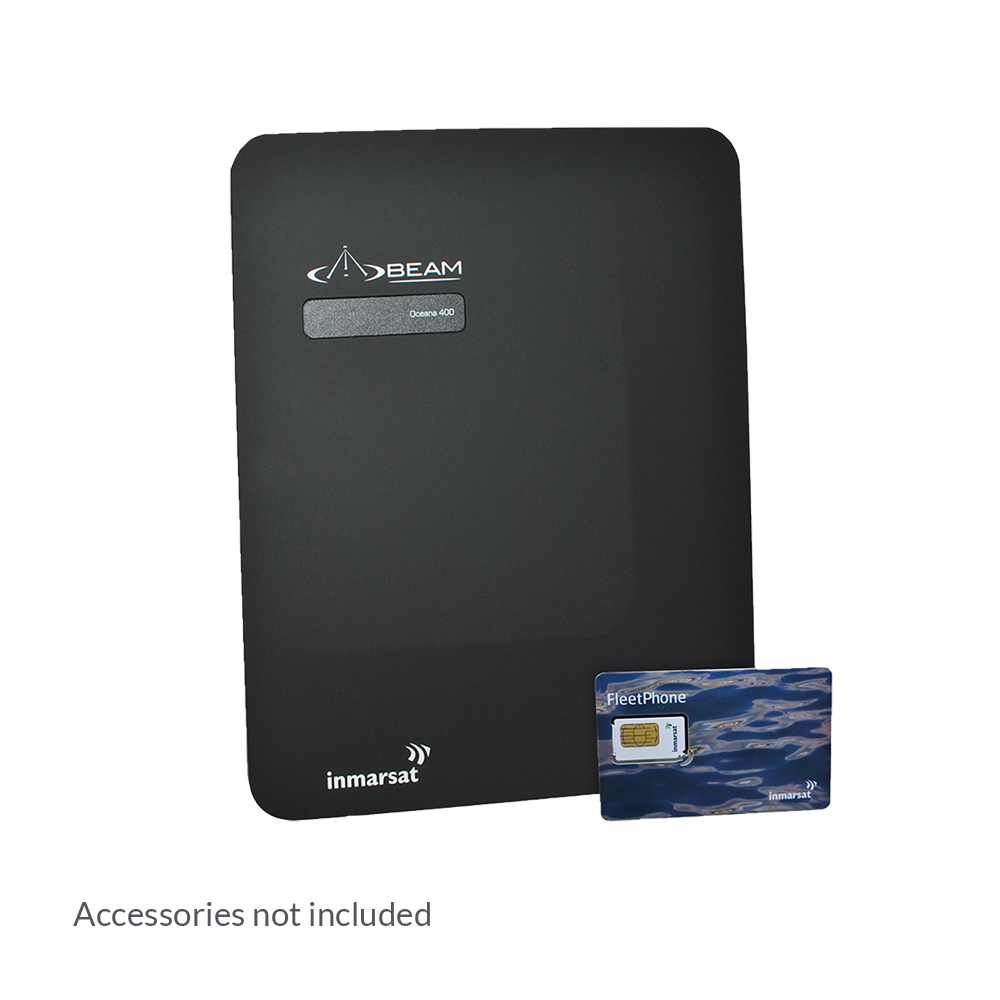

- SIM
Oceana 400 Features
Integrated Solution

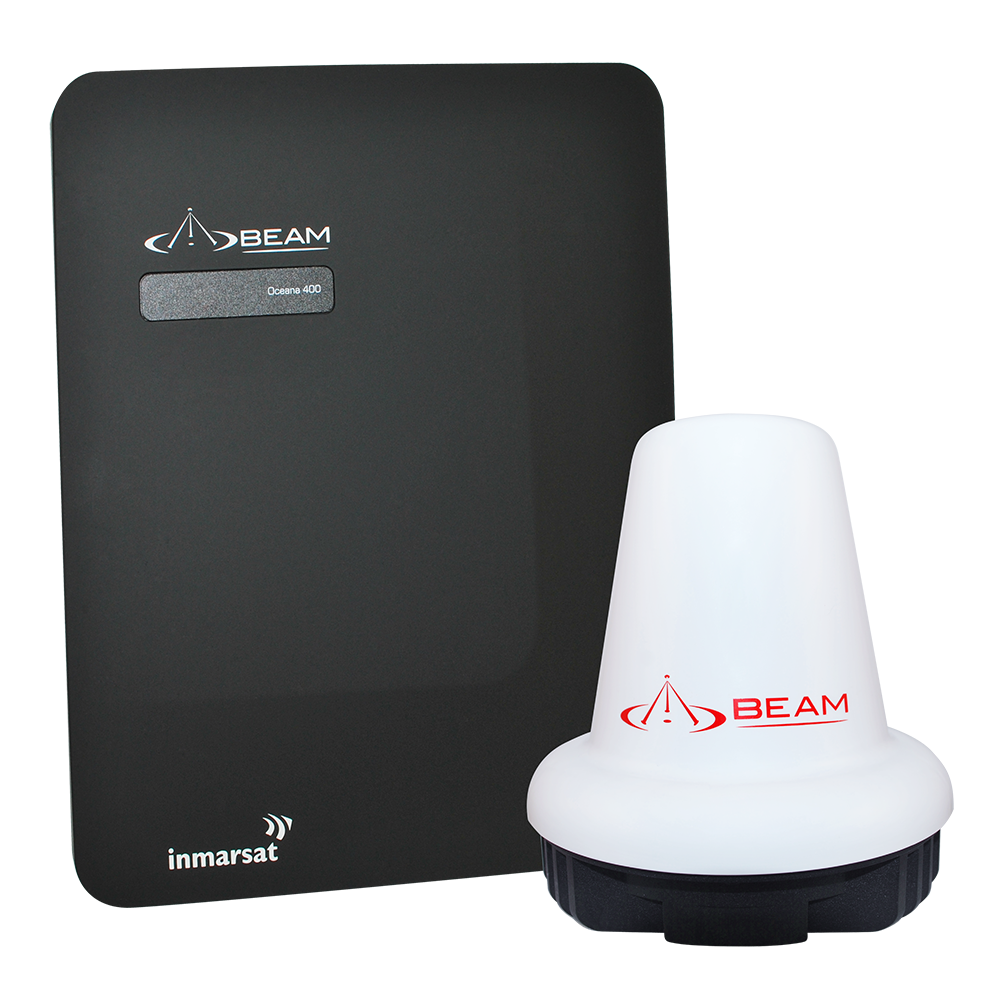

The Oceana 400 terminal is supplied with the Beam Active Mast Mount Antenna (ISD710) providing a complete integrated solution that is ready for use anytime, anywhere.
On-board Vessel Communications
The terminal was purposely designed for maritime applications to meet an IP53 ingress rating making the terminal suitable for on-board vessel communications the terminal can easily be used in any land based fixed site application.
Key Benefits and Features
• High quality design, IP53 rating
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Basic SMS support via Falcon application (via USB port)
• Active Marine Grade Fixed site Antenna included in Kit
• Supports optional Active Vehicular Magnetic or Bolt antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 1 year repair or replacement warranty
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Basic SMS support via Falcon application (via USB port)
• Active Marine Grade Fixed site Antenna included in Kit
• Supports optional Active Vehicular Magnetic or Bolt antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 1 year repair or replacement warranty
Watch the Oceana 400 Video
Oceana 400 is a complete slimline terminal that allows connection to the Inmarsat GSPS satellite network, where the simplest access to reliable voice and data communication services are required.

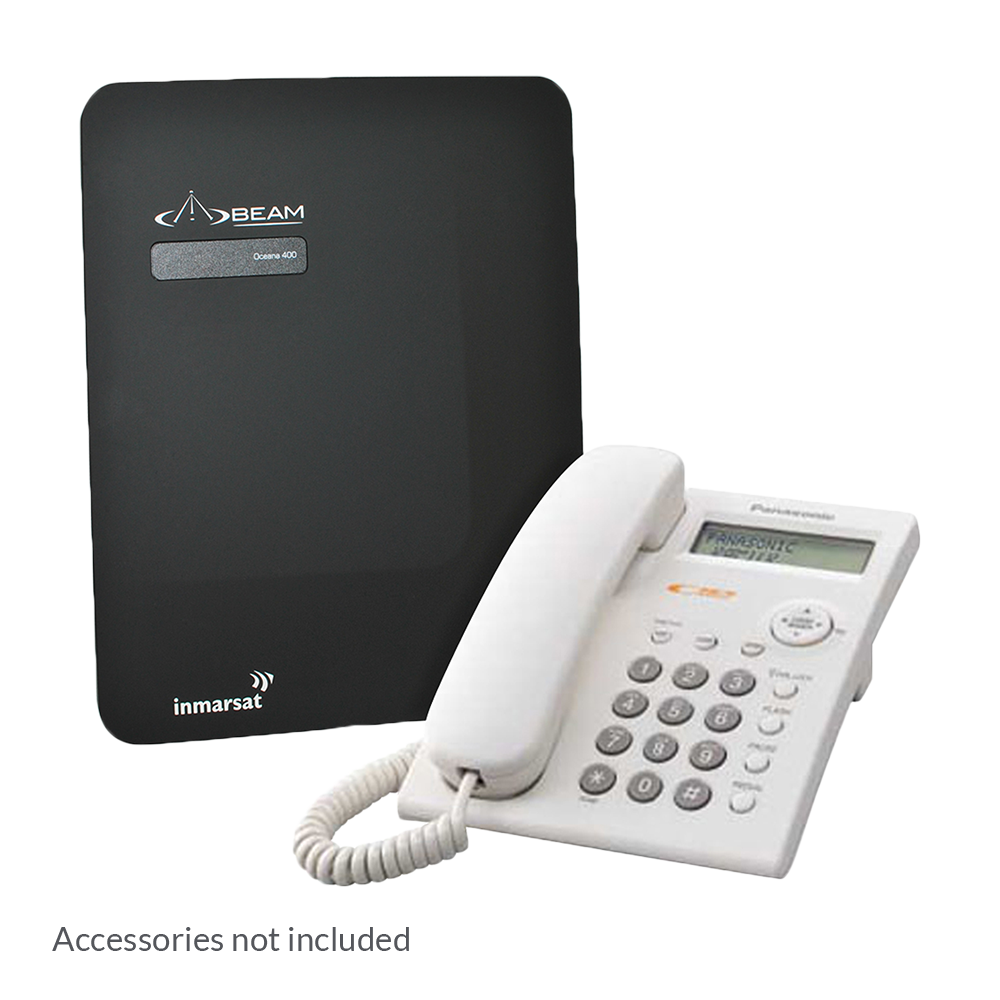

Featuring an intelligent RJ11/POTS interface, it enables connection of up to 5 standard corded/cordless phones or integration to a PABX system.
The Oceana 400 is designed to operate with the Inmarsat GSPS, IsatPhone Link & FleetPhone SIM’s to provide reliable voice, data & SMS communication services.
The Oceana 400 terminal provides access to reliable voice and data communications services, offering a cost-effective and high quality solution for land based as well as maritime users.
Similar items you may be interested in
The OC400 Basic Piracy Bundle includes:
Oceana 400 terminal
Beam Inmarsat Covert Antenna
ISD934 18.5m Cable Kit
POTS Phone
...
View product
Beam Oceana 800 is a highly featured satellite terminal that allows connection to the Inmarsat ...
View product
RemoteSAT RST100B satellite terminal combines the robust design with the intelligent technology to support RJ11 ...
View product
Oceana 400 Specifications
Inmarsat Transceiver
| Inmarsat-4 Satellite GMR-2+ Frequency Bands |
||
| Carrier Frequencies | Channel 0 = 1626.525 MHz | Channel 169 = 1660.475 MHz |
| Tx Operating Frequency | 1626.5 - 1660.5 MHz | |
| Rx Operating Frequency | 1518 – 1565 MHz (Inmarsat) | 1565.19 – 1585.65 MHz (GPS) |
| RF Output Impedance | 50 Ohms | |
| TX Modulation | GMSK | |
| RX Modulation | OQPSK |
Power
| Average Power Consumption (Active antenna connected) |
Current @ 15v DC | Power |
| Standby | 0.21A | 3.1W |
| Transmit | 0.57A | 8.5W |
| Sleep Mode | 4mA | 60mW |
| Peak Current | 1.73A | 25.9W |
| Average Power Consumption (Passive antenna connected) |
Current @ 15v DC | Power |
| Standby | 0.17A | 2.5W |
| Transmit | 0.29A | 4.4W |
| Sleep Mode | 4mA | 60mW |
| Peak Current | 0.56A | 8.4W |

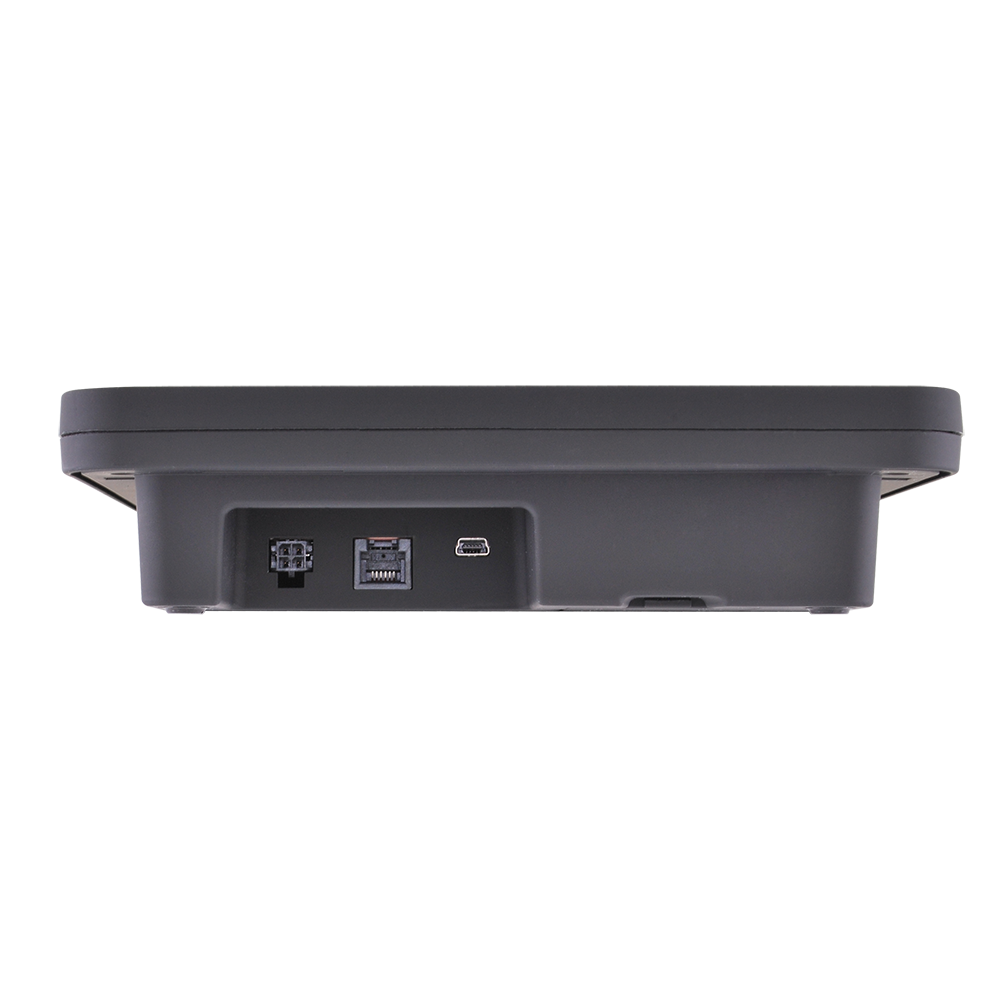

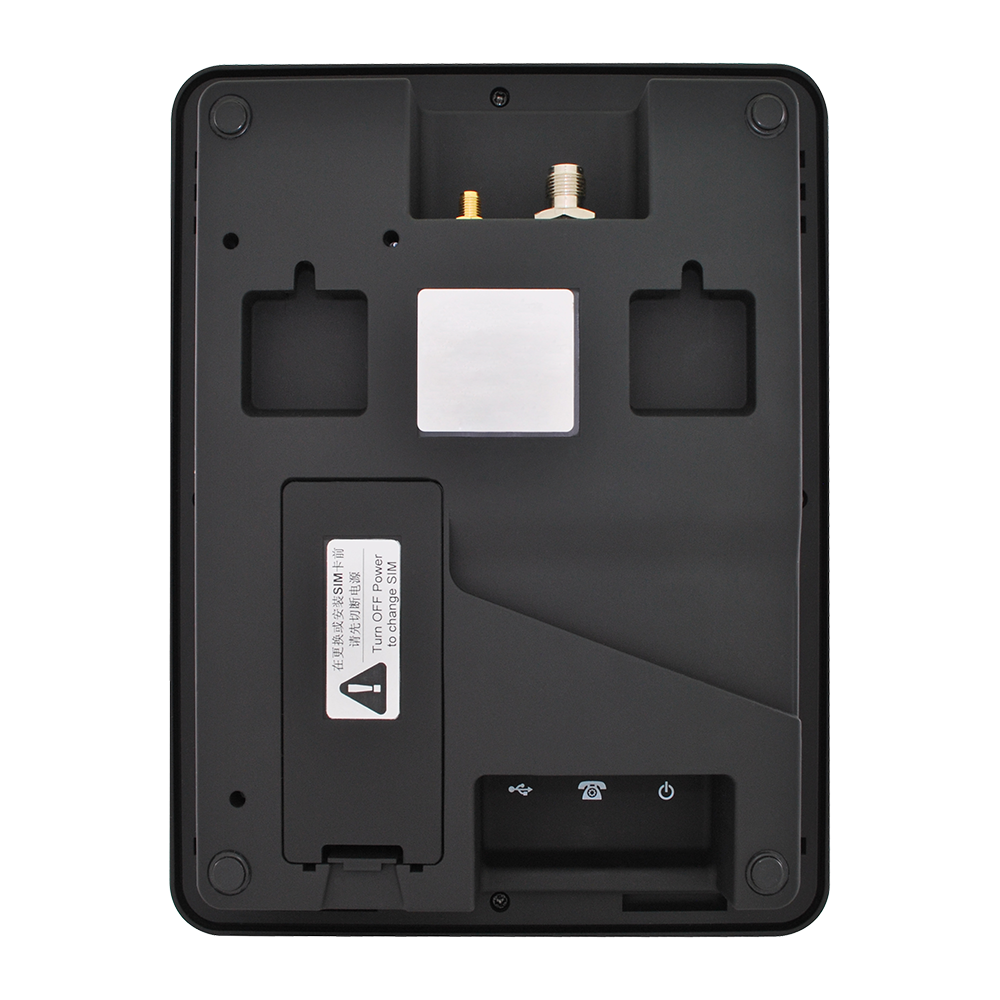

Connectors / Interfaces
| POTS/RJ11 | RJ11/2-wire, 5REN @ 600m, adjustable dial, ring, busy tone configured frequency and adaptive impedance. |

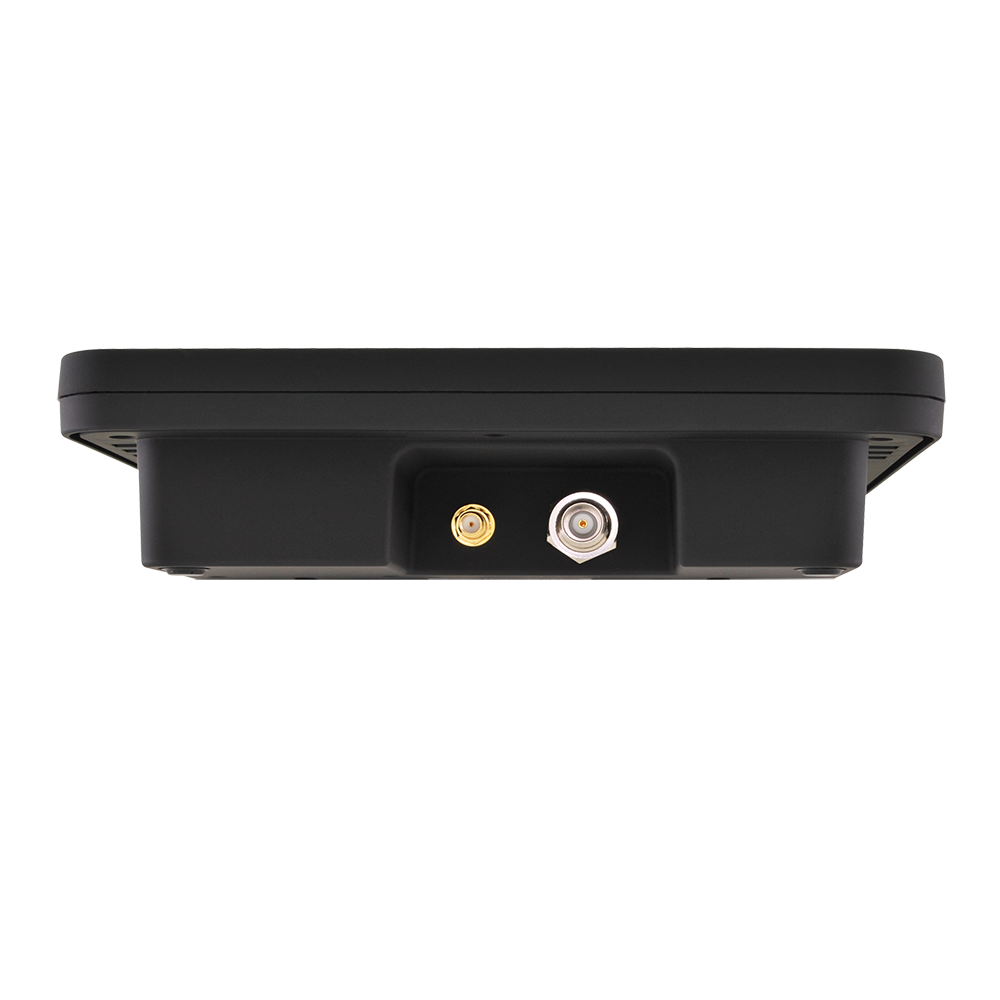

| Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| 10-32vDC | 4-way microFit (AC/DC adaptor, or DC lead) |
| Configuration/data | USB Mini B |
| LEDs | Signal, Call, Message |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -20°C to +55°C | -4°F to +131°F |
| Storage | -30°C to +80°C | -22°F to +176°F |
| Humidity | < = 75% RH |
Physical
| Dimensions | mm | inches |
| Unit | 240 x 190 x 53 | 8.0 x 7.5 x 2.1 |
| Outer Box | 420W x 180D x 300H | 16.54W x 7.09D x 11.81H |
| Weight | kg | lbs |
| Unit | 0.58 | 1.28 |
| Box | 3.2 | 7.05 |
Kit Contents Oceana 400
| Oceana 400 terminal |
| ISD710 Maritime antenna (active) |
| 110-240V AC plug pack 15v DC out |
| 10-32V DC power cable & USB cable |
| 2 x screws for wall mounting |
| User manual & Quick Start Guide |
| Antenna installation guide |
Certifications
| Inmarsat Type Approval |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
Brochures
Brochure Oceana Series
For more information please download our Oceana Series Brochure.
Download brochure
