Iridium Beam Whip Antenna - DISCONTINUED (RST714)

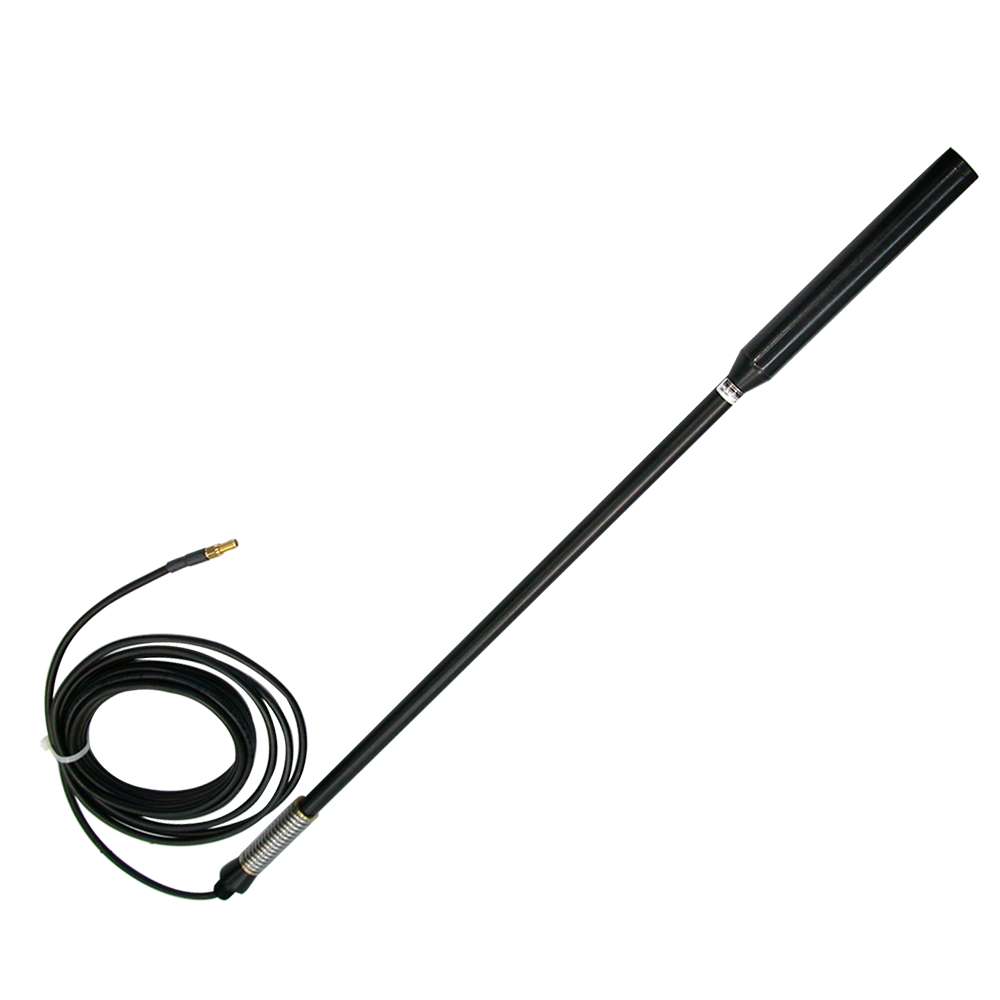

The Iridium WHIP Antenna (RST714) is designed for vehicular or fixed site applications.
Iridium Beam Whip Antenna - DISCONTINUED Features
The whip design provides for increased roofline clearance and is designed to be extremely flexible in its installation options, from bull bars, roof racks or pole mounts.
The antenna includes 5m of Iridium and is terminated with an SMA connector, however a TNC adaptor is also supplied as it's the most common terminal connection for Iridium products. The RST714 is a very cost effective solution.
The antenna includes 5m of Iridium and is terminated with an SMA connector, however a TNC adaptor is also supplied as it's the most common terminal connection for Iridium products. The RST714 is a very cost effective solution.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 5m cable attached
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 5m cable attached
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
The dual mode all in one Iridium and GPS Whip Antenna (RST706B) is designed for ...
View product
Iridium Beam Whip Antenna - DISCONTINUED Specifications
General
| Polarization | Right Hand Circular |
| Axial Ratio | 3.0db Max at bore sight |
| Impedance | 50 OHMS |
| VSWR | < 2.0 : 1 |
| Power Handling | 20 Watts |
| Altitude | 6,000m/20,000ft |
| Cable | Includes 5m or 16.4 feet of LMR240 attached |
Frequency
| Iridium | 1616 – 1626MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +85°C | -40° to 185° |
Physical
| Colour | Black | |
| Finish | Weatherable Polymer Black | |
| Dimensions | mm | inches |
| Antenna | 713.23H x 25.4Dia | 28.08H x 1.0Dia |
| Box | 870 W x 190 D x 65 H | 34.25 W x 7.48 D x 2.56 H |
| Weight | kg | lbs |
| Antenna | 0.56 | 1.25 |
| Box | 1.2 | 2.64 |
Connector
| Iridium | TNC Male |
