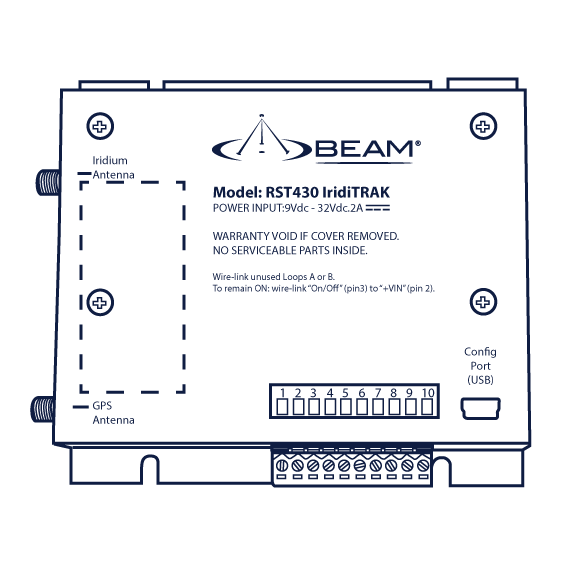

IridiTRAK (RST430)

MSRP $495 USD

IridiTRAK RST430 is an Alert, Monitoring and Tracking terminal designed to support a standalone alert/alarm management system or it can be used in conjunction with a tracking application.

Read more product features
  • Data
  • SBD
  • Tracking

IridiTRAK Features

Tracking Integration

IridiTRAK is an Alert, Monitoring and Tracking terminal designed to support a standalone alert/alarm management system or it can be used in conjunction with a tracking application. IridiTRAK integrates seamlessly with tracking systems. This makes it possible to track any asset or personnel on a regular basis whilst having the peace of mind of an alert system operating in the background at all times. Tracking and alert messages are sent via the Iridium system can be delivered to an email address or direct IP connection.

Key Features & Benefits

• In-built transceiver Iridium 9601 SBD module
• Sensitive In-built GPS engine
• Global coverage
• Alert button loops x 2
• Power saving modes
• Supports Man Down device
• Remotely configurable
• Alarm acknowledgement configurable
• Fully Certified, Iridium, RoHS, CE

IridiTRAK Features

With its in-built 16 channel GPS engine and its Iridium Short Burst Data modem you can track your vehicles, vessels, assets and personnel virtually anywhere.

The Iridium Short Burst Data (SBD) is a simple and efficient network transport capability for transmitting short data messages between equipment and centralized host computer systems.

Capability to send emergency messages, including the GPS position from the IridiTRAK terminal to a predetermined IP or email address to notify of an emergency.

Similar items you may be interested in

IridiTRAK Specifications

Iridium Module

9601 L-Band transceiver frequency 1616 - 1626.5 MHz
Average Power 7W during a transmit slot (max) 0.6W during a frame (typical)
Receiver Sensitivity -118.5db at 50W (typical)
Duplexing method TDD (Time Domain Duplex)
Multiplexing Method: TDMA/FDMA
Antenna Connector -50 Ohms
SBD (Short Burst Data) Mobile Originated: 205 Bytes Mobile Terminated: 135 Bytes
Minimum charge per transmission: 10 Bytes

Power

Input Voltage DC 9 - 32VDC, 2A
Plug Pack (not included) 90 – 250VAC, 50/60Hz input
Power Consumption
Idle (registered) Mode 1.5W
Transmit Mode 1.8W
Sleep Mode 20mA Current (0.02A)

I/O Specification / Interface

2 x Alarm Loops
(2 inputs and 2 outputs)
Alarm Mode:
“Normally-Closed”
Loop IN to OUT
Up to 500m cable run / multiple buttons.
Ignition/Key/Accessory Sense and ON/OFF inputs High (1) > +7Vdc
Low (1) 0V < +1Vdc
USB Config Port 5 – pin Mini-B Female socket
Suits standard '5-pin Mini-B-Male to A-Male

GPS Module

Receiver Type 16 Channel – ANTARIS4 positioning, L1 frequency (1575.42MHz), C/A Code (Standard Positioning Service), 8192 time/frequency search windows.
Operational Limits Altitude 18000m Velocity 515m/s
Antenna Connector SMA Female socket – 50 ohms
Acquisition Cold <41s, Warm 33s, Hot <3.5s, Re-acquisition <1s
Accuracy Position 2.5mCEP1, 5.0mSEP2
Position DGPS/SBAS 2.0mCEP, 3.0mSEP
Max Navigation Update Rate 4 Hz (default 1Hz)
Antenna Supply 3.3Vdc
NOTE:
1 CEP = Circular Error Probability
2 SEP = Spherical Error Probability

Environmental

Atmospheric Protection Conformal Coating to Circuit Board
Temperature Degrees °C Degrees °F
Operating Range -30°C to +70°C -22°F to +158°F
Storage -35°C to +85°C -31°F to 185°F
Humidity 85% non condensing

Physical

Enclosure Construction Powder - coated Aluminium
Dimensions mm inches
Unit 114 x 104 x 28 4.5 x 4.1 x 1.1
Packed Box 335 x 228 x 69 13.2 x 9.0 x 2.7
Weight kg lbs
Unit 0.3 0.66
Packed Box 1.0 2.2

Kit Contents

IridiTRAK unit - RST430
Main Power Loom
USB Configuration Cable
CD-ROM - IridiTRAK Management Configuration Software, User Manual
User Manual
Quick Start Guide

Certifications

IEC60945:2002 (sections 9 &10)
A – Tick #N13271
CE, C-Tick , A-Tick
Fully ROHS compliant EU2002/95/EC (All 6 substances)
Iridium Approved
Flame Retardant – UL94.0
Safety – Low Voltage Directive - IEC / EN / AS / NZ 60950-1

Brochures

Brochure RST430 IridiTRAK

For more information please download our RST430 IridiTRAK Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product
