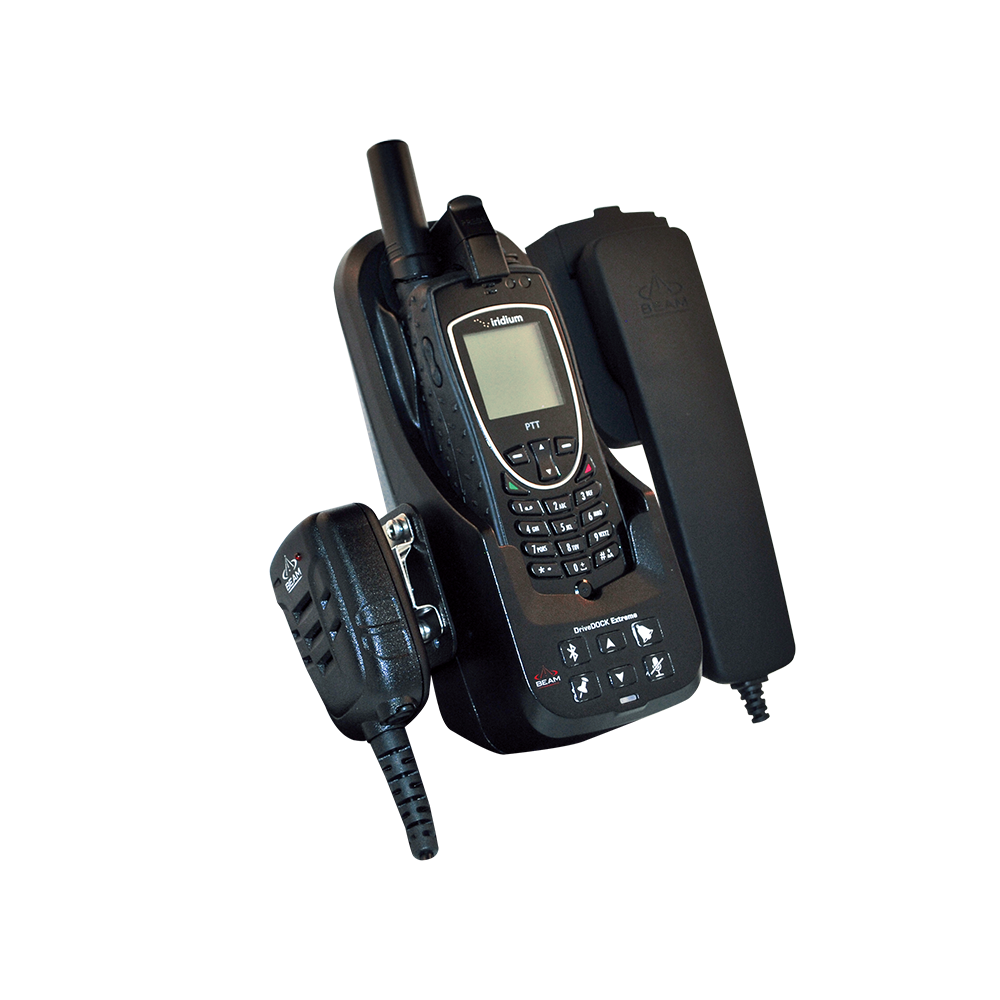

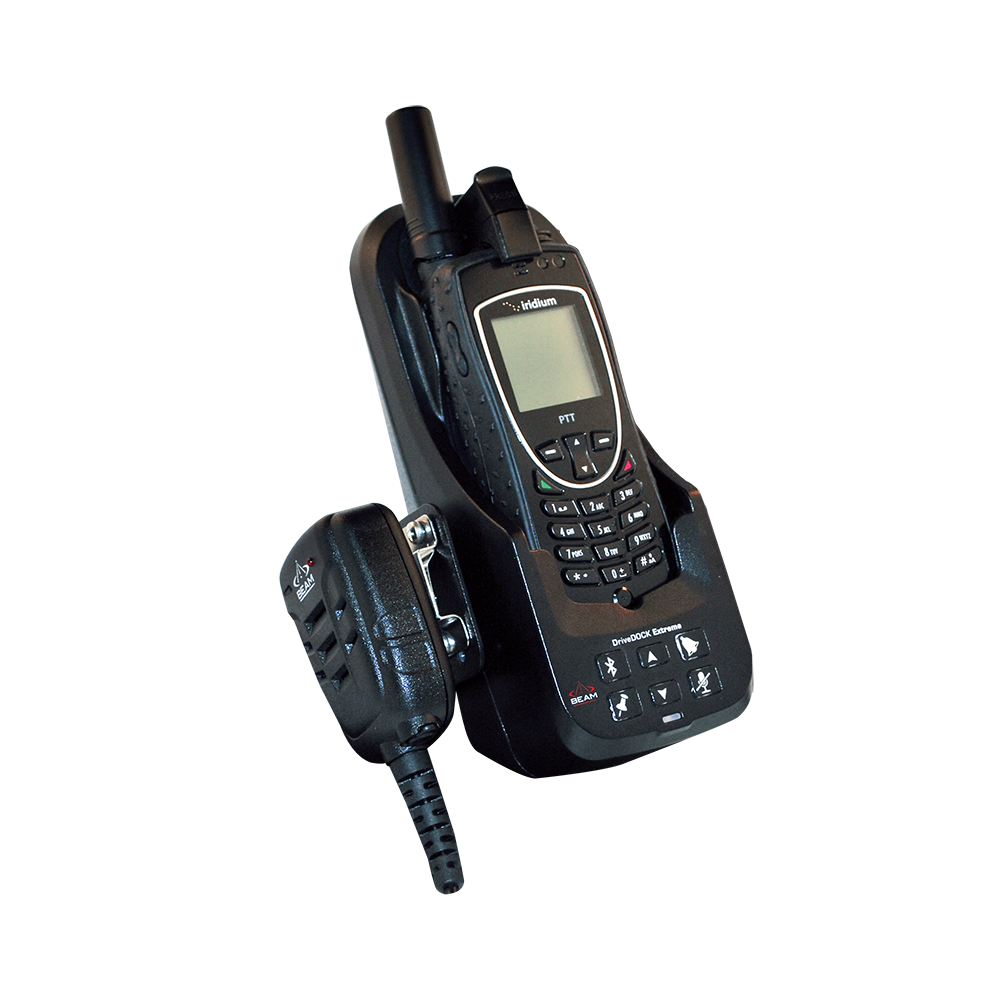

DriveDOCK Extreme Corded Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-C1)
The DriveDOCK Extreme Corded PTT Bundle is a cost effective PTT solution and supports all features of the Iridium Extreme® PTT service. It also supports handsfree speakerphone attached to the dock, extending the power of the Extreme® PTT Device to the palm of your hand, in a fixed location or in a vehicle.
- Data
- Voice
- SMS
- Bluetooth
- SBD
- Handsfree
- Privacy Handset
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- Horn Alert
- Intelligent Handset
- USB
- SOS
- Supports PTT
- Supports Voice via 9575

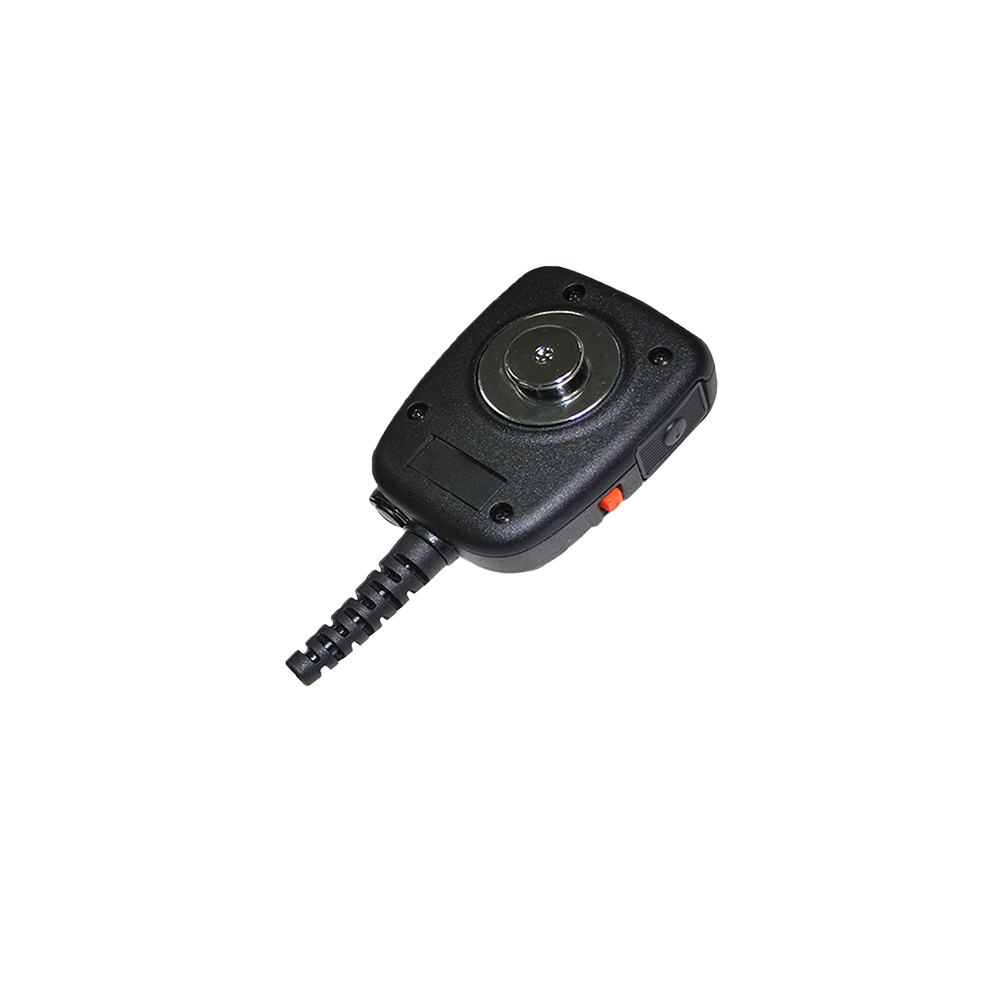

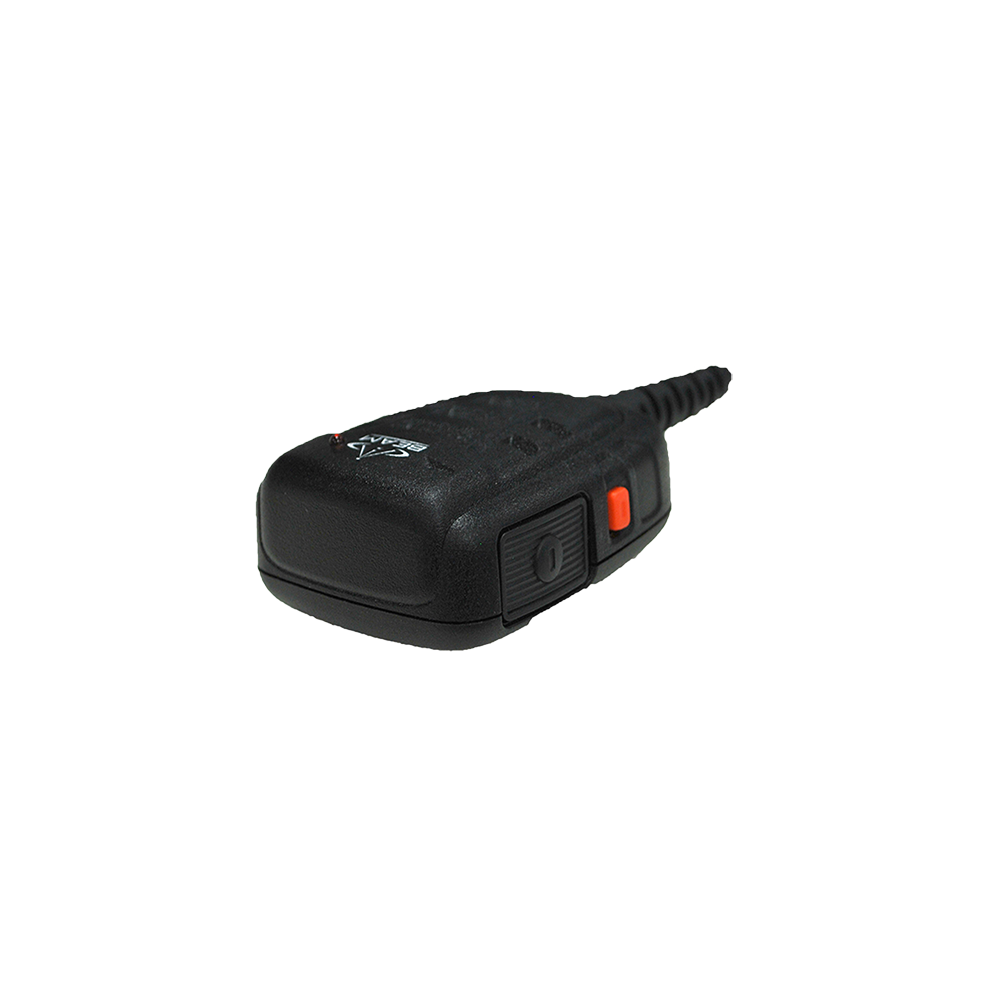

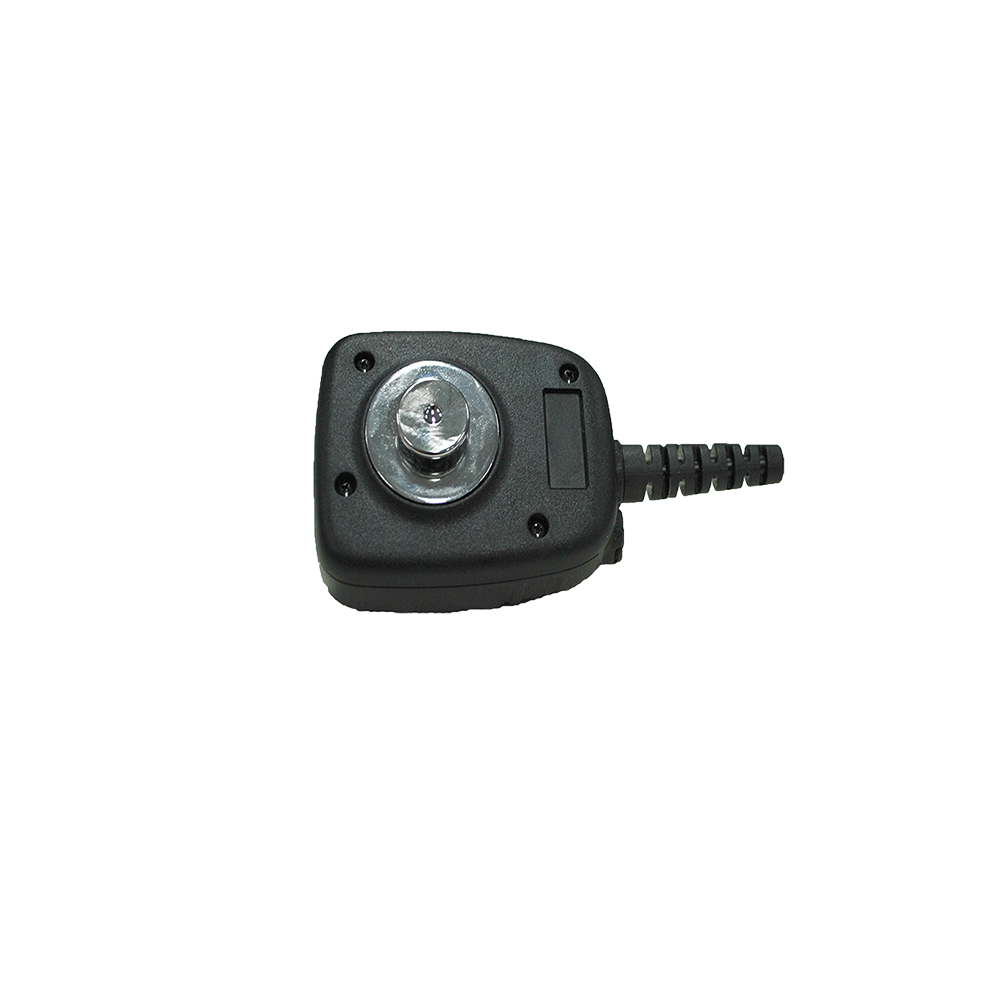

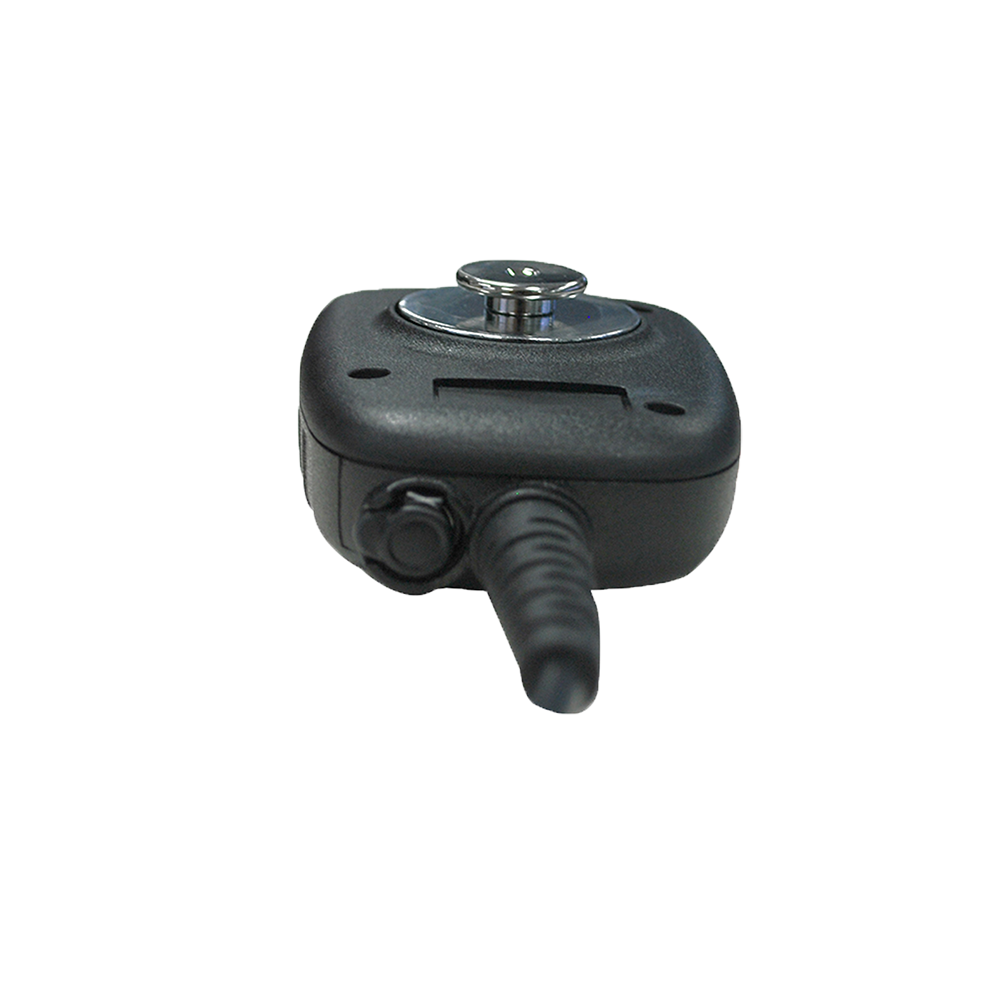

- Corded PTT Handset
DriveDOCK Extreme Corded Push-To-Talk (PTT) Bundle Features
BEAM's Corded PTT Bundle solution provides a clear and high quality audio that surpasses the output of the Extreme® Handset via the loudspeaker in the corded handset. It is the perfect partner for your Iridium Extreme® PTT device. This Beam solution provides clear and improved PTT audio quality
Key Benefits and Features
• Rugged mic/speaker handset
• Improved audio quality
• Supports Iridium phone and PTT mode
• Improved audio quality
• Supports Iridium phone and PTT mode
Similar items you may be interested in
The DriveDOCK Extreme hands-free docking solution provides a high quality transport installation using the Iridium ...
View product
DriveDOCK Extreme Corded Push-To-Talk (PTT) Bundle Specifications
Connectors / Interfaces
| Speaker | 1 Watt 8 Ohms |
DriveDOCK Extreme Power
| Average Power Consumption | Current @ 12VDC | Watts |
| Rated Input | 9-32V DC | 2A max |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 5mA | 60mW |
DriveDOCK Extreme BLUETOOTH® MODULE (INTERNAL)
| Legal | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
| Regulatory | Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: DriveDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E Japan: 07215089/AA/00 |
| Antenna | Integrated chip antenna |
| Power | Default = Class 2 (< 10 metres). 2.4GHz - 2.4835GHz Unlicensed ISM Band |
| Profiles | HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Profile v.1.5 & SPP - Serial Port Profile |
| System | Bluetooth® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence. |
DriveDOCK Extreme Interfaces
| Privacy Handset (Line In/Out) | 4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle. |
| External Speaker and Microphone | One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone. |
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile. |
| Alarm (Alert) Loop | Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output. |
| Horn Output / Audio System Mute | Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability. |
| Power Cable | 4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc |
| LEDs/Buttons | Bluetooth, Ringer, Track, Mute, Up & Down |
DriveDOCK Extreme Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C* | -22°F to +158°F |
| Charging Range | 0°C to 45°C # | +32°F to 113°F |
| Storage | -35°C to +85°C | -31°F to 185°F |
| Operating Humidity Range | < 85% RH non-condensing | |
| Notes | When 9575 Battery is fully charged | # Derived from the charging temperature range of the Iridium 9575 handset battery. |
DriveDOCK Extreme Physical
| Dimensions | mm | inches |
| Dock | 83W x 76D x 212H | 3.3 W x 3D x 8.3H |
| Outer Box | 140W x 125D X 330H | 5.51W x 4.92D x 13H |
| Weight | kg | lbs |
| Dock | 0.48 | 1.1 |
| Box | 1.5 | 3.4 |
DriveDOCK Extreme Kit Contents
| DriveDOCK Extreme |
| DC Power Cable/Fuse Kit |
| Universal Mounting Bracket (RAM) |
| Speaker & Microphone |
| User Manual |

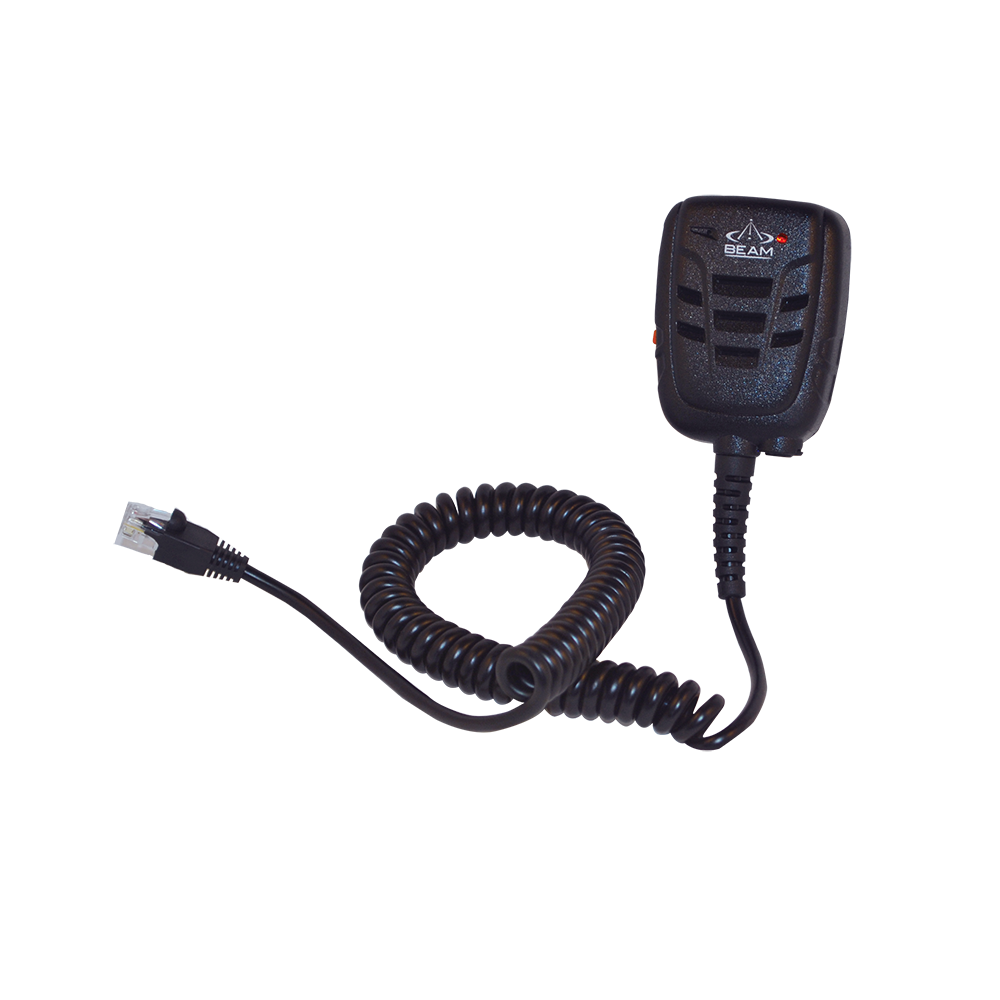

| C1 Corded PTT Microphone / Speaker |
| Universal Mounting Bracket for C1 microphone / speaker |
DriveDOCK Extreme Certifications
| Iridium |
| EMC Compliance |
| CE Compliance |
| Electrical Safety |
| RoHS |
| C-Tick |
Brochures
DriveDOCK Extreme PTT Handset Bundles
The DriveDOCK Extreme PTT Bundle (wireless or corded) solution provides a high quality transport installation
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
