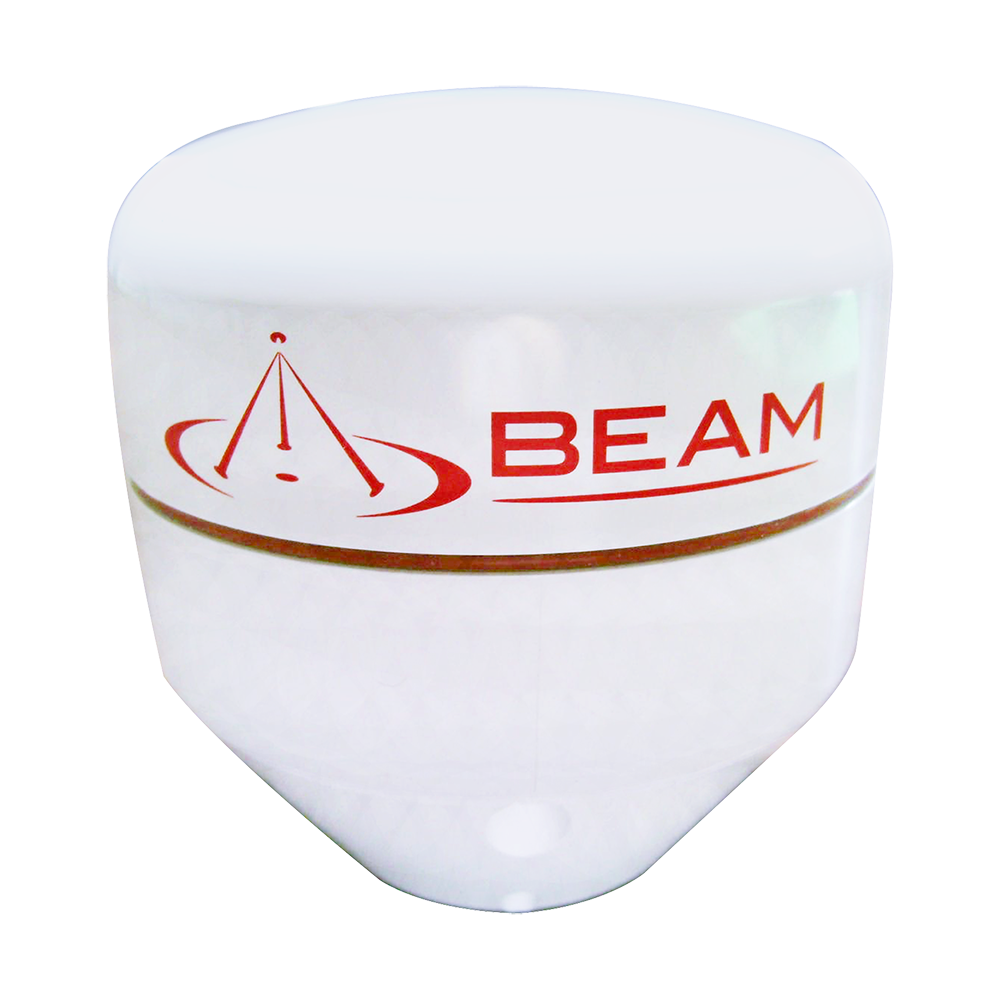

Beam Mast GPS Antenna Active - DISCONTINUED (RST700)
MSRP $275 USD
The Beam Active GPS Antenna RST700 is designed predominantly for maritime applications.
Beam Mast GPS Antenna Active - DISCONTINUED Features

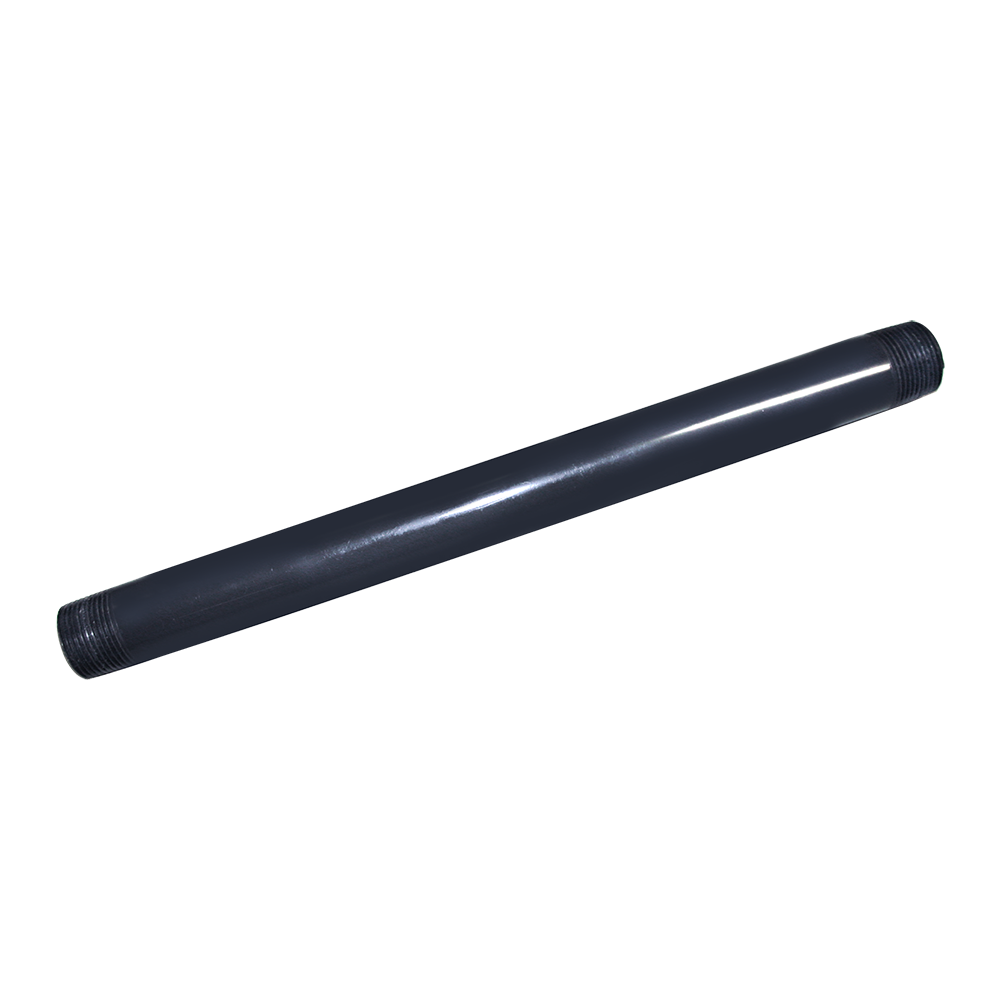

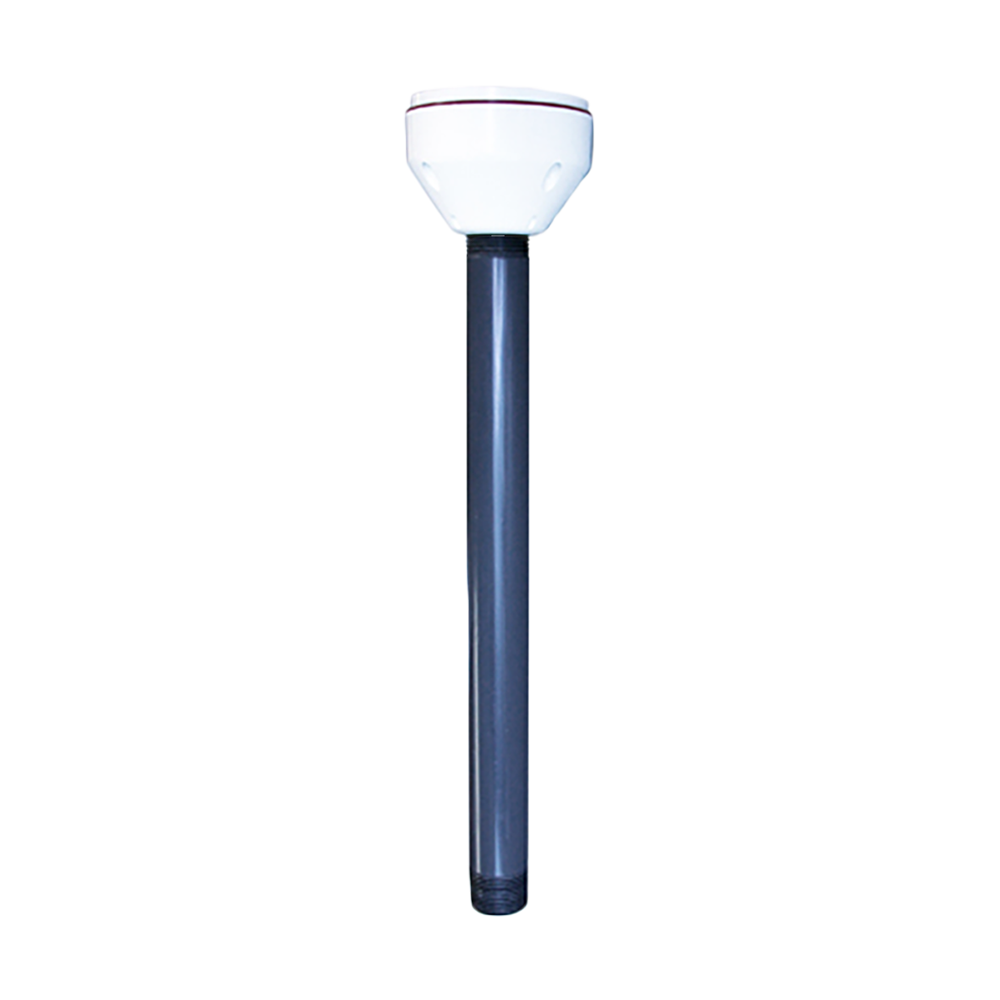

The RST700 antenna is supplied complete with a PVC pipe, 30cm (12 inches) that enables it to be securely mounted without the connector being exposed to the environment. The Beam Active GPS Antenna RST700 is fitted with a SMA female connector and will work with all Beam tracking products or other GPS based devices.
Similar items you may be interested in
The Beam RST701 Active GPS Bulkhead Patch Antenna is designed predominantly for vehicle and asset ...
View product
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
Beam Mast GPS Antenna Active - DISCONTINUED Specifications
General
| Polarization | Right Hand Circular |
| Axial Ratio | 1.5db Max |
| Amplifier | < 1.5:1 |
| Noise Figure | 2.5db Max |
| Impedance | 50 Ohms |
| VSWR | < 2.0 : 1 |
| Band Rejection | 30db @ 1535 MHz 60db @ 1615 MHz |
| Power handling | 1 Watt (including in-band) |
| Altitude | 16,764m/55,000ft |
Frequency
| Iridium | 1575 ± 10MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -55° to +85° | -67° to 185° |
Physical
| Colour | White | |
| Finish | Weatherable Polymer | |
| Dimensions | mm | inches |
| Antenna | 80.52H x 76.2Dia | 3.17H x 3Dia |
| PVC Pole | 305 | 12.0 |
| Weight | kg | lbs |
| Antenna Weight | 0.2 | 0.5 |
Connector
| Connector | SMA Female |
Brochures
Brochure RST700 Active GPS Antenna
For more information please download our RST700 Active GPS Antenna Brochure.
Download brochure
