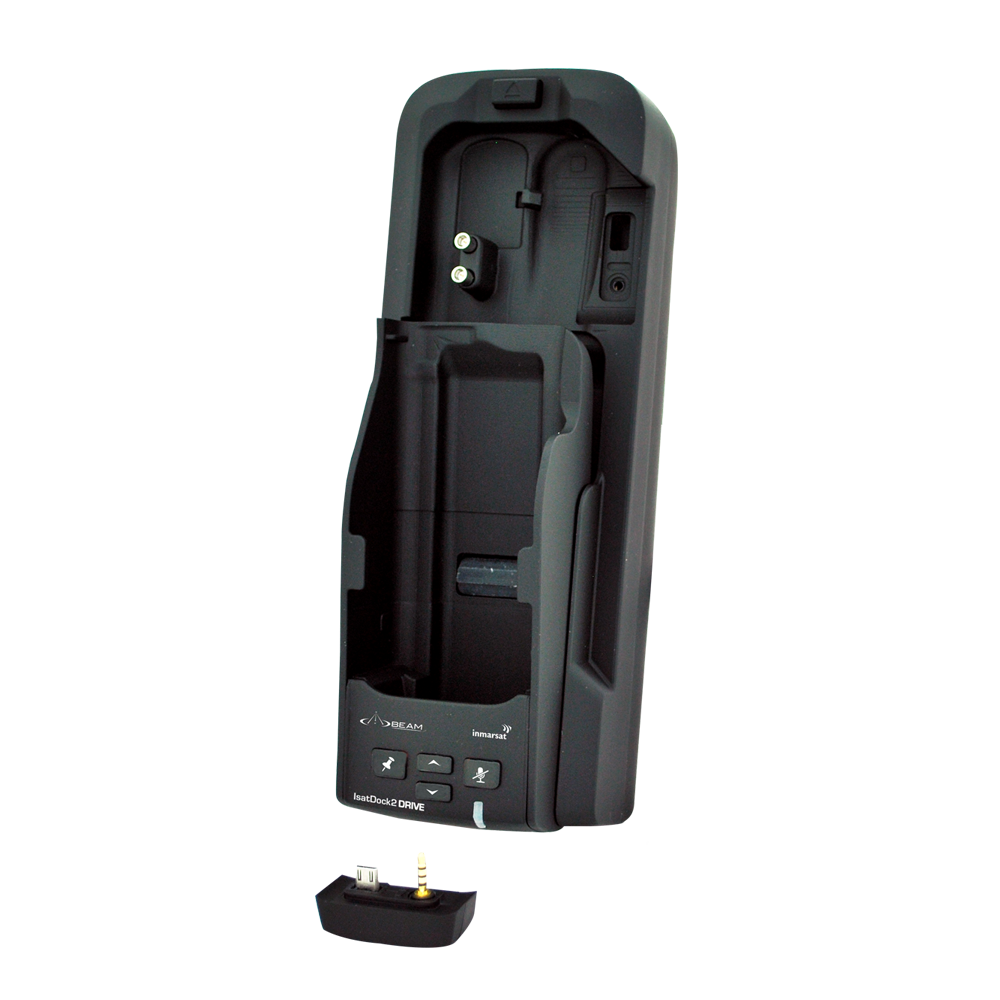

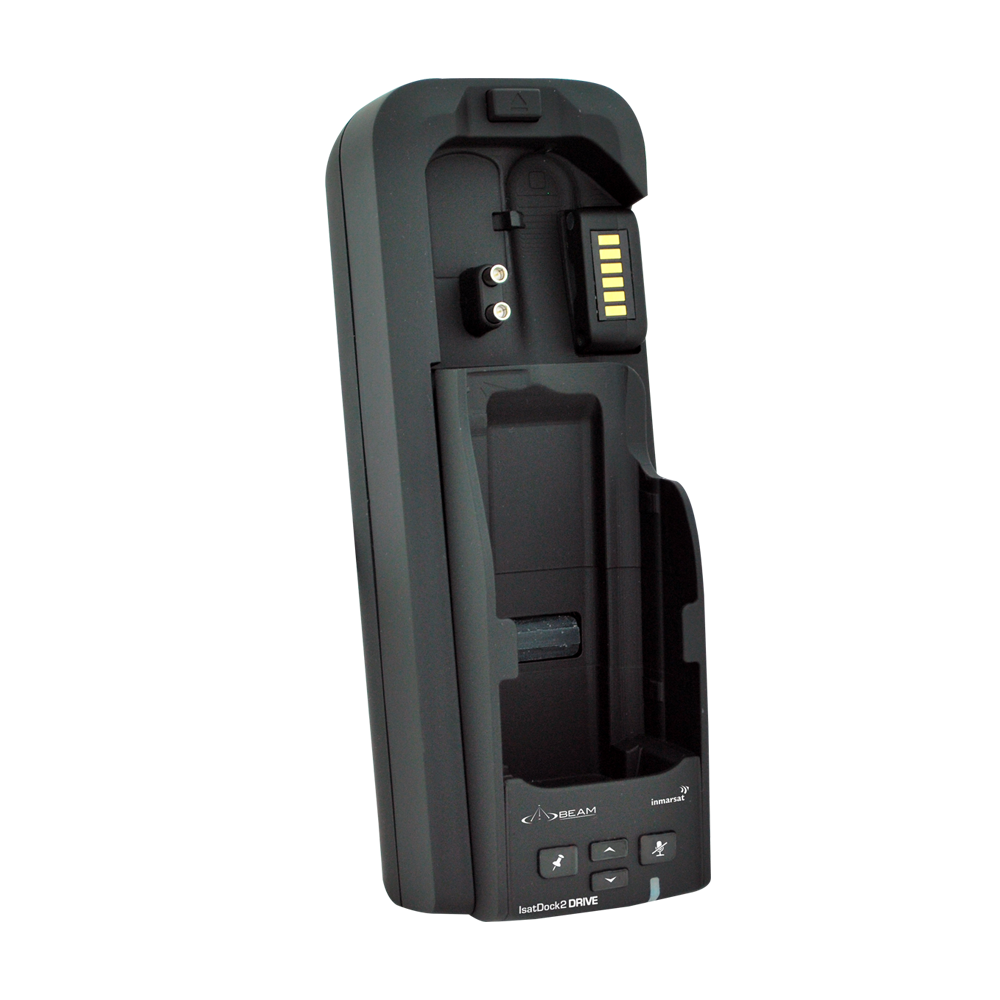

IsatDock2 DRIVE (ISD2 DRIVE)

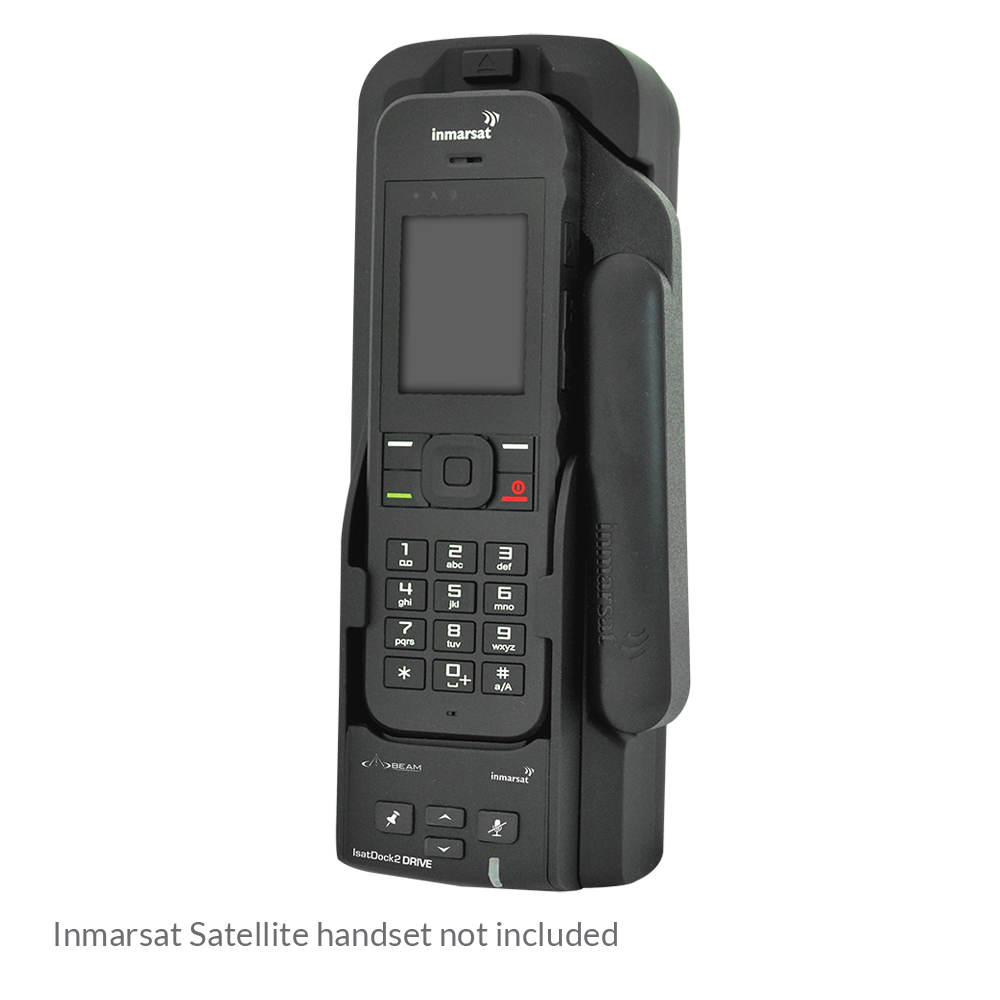

The Beam IsatDock2 DRIVE, the only Inmarsat Certified dock for the IsatPhone 2, is a highly featured docking station for the Inmarsat satellite handset that can be used in various maritime and transport applications considerably extending the functionality of the handset.
- Handsfree
- Privacy Handset (optional)
- Tracking
- Docking
- Charging
- Ringer
- Mute
- Horn Alert
- USB
- External IO
- Alert
IsatDock2 DRIVE Features
Handsfree Solution
The IsatDock2 DRIVE enables voice calling capabilities via a full in in-vehicle hands-free installation with superior echo cancelling technology to minimise background noise or via the inbuilt Bluetooth or an optional privacy handset.
Supports Alert Functionality
The IsatDock2 DRIVE supports the IsatPhone 2 Personal Alert and Assistance Alert functionality. Personal Alert messages can be triggered via a single button press on the IsatDock2 DRIVE. It will instantly send your GPS position as well as your pre-configured message via SMS or email.
Key Benefits and Features
• Slim line compact installation
• Handsfree

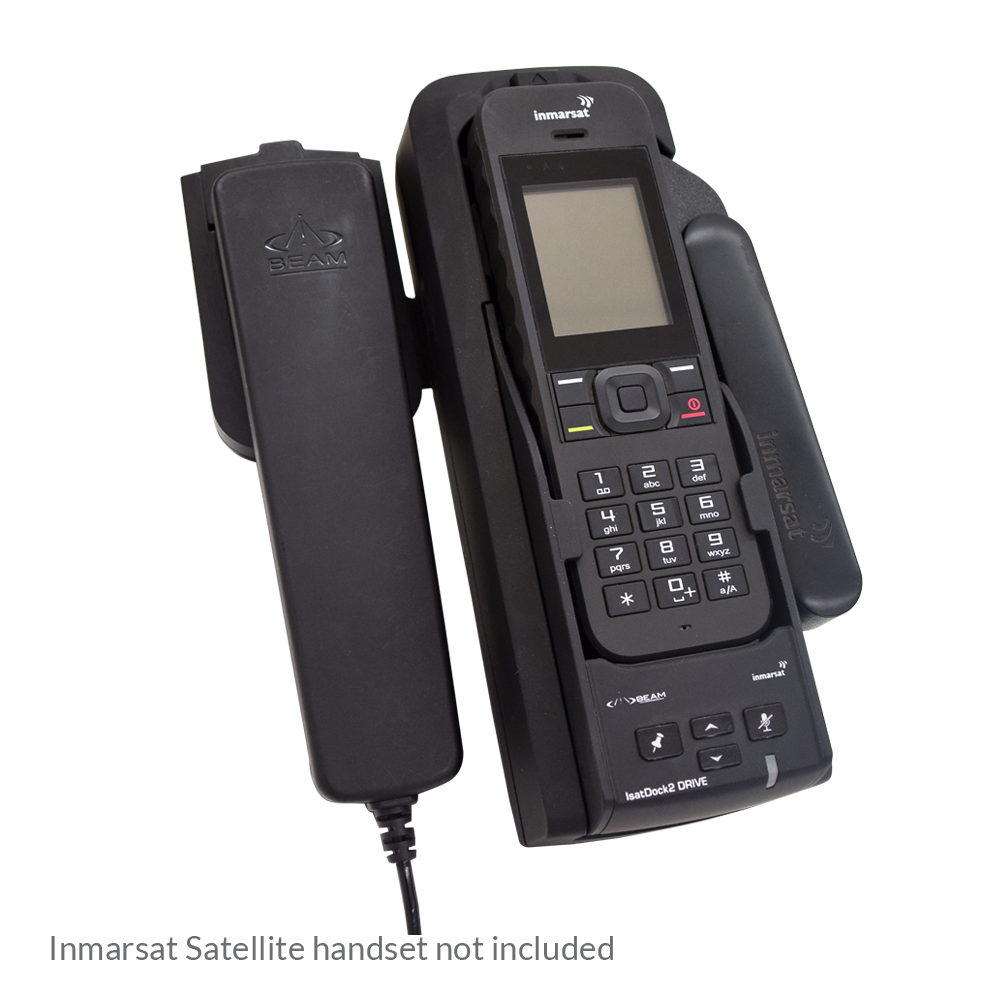

• Privacy Handset option (ISD955)
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2)
• USB data interface
• Accessory / Ignition sense / Horn Alert
• 10-32V DC power input
• AC Plug pack 110/240 input (optional)
• SMA Connectors – Inmarsat Antenna / GPS Antenna
• Full certified, FCC, Industry Canada, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
• Handsfree
• Privacy Handset option (ISD955)
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2)
• USB data interface
• Accessory / Ignition sense / Horn Alert
• 10-32V DC power input
• AC Plug pack 110/240 input (optional)
• SMA Connectors – Inmarsat Antenna / GPS Antenna
• Full certified, FCC, Industry Canada, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
Watch IsatDock2 DRIVE Video
The perfect partner for your Inmarsat IsatPhone 2, the DRIVE dock is ideal for various transport applications.
Personal Alert messages can be triggered via a single button press on the IsatDock2 DRIVE. It will instantly send your GPS position as well as your pre-configured message via email.
Beam IsatDock2 DRIVE has in-built echo cancelling and full duplex technologies to provide superior voice quality and professional handsfree or privacy calls for various transport applications.
The mute function of the IsatDock2 DRIVE allows the user to mute the uplink microphone audio on the privacy handset and/or external hands-free microphone.
Similar items you may be interested in
The IsatDock2 DRIVE bundle is well suited for the transport market. This bundle includes:
IsatDock2 DRIVE
ISD715 Active ...
View product
Beam IsatDock2 PRO, the only Inmarsat Certified Dock for the IsatPhone 2, is an intelligent ...
View product
IsatDock2 DRIVE Specifications
Power
| Average Power Consumption Current @ 12V | Average | Watts |
| Standby + Charging | 360mA | 4.3W |
| Transmit + Charging | 875mA | 10.5W |
| Sleep Mode | 5mA | 60mW |
| Peak Current | 3.5mA | 42W |
I/O Alert
| 1 x Beam Alert Loop | Bare Wire - Normally Closed loop IN to OUT |
| Track (Personal Alert*) button | In-built - single key press |
| * NOTE | This action is optional, only when the Personal Alert Mode for your IsatPhone 2 is configured |
Connectors / Interfaces
| Configuration Port | USB Micro |
| Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| Microphone | 2-way microFit |
| Speaker | 2-way microFit |
| 10-32 VDC | 4-way microFit (AC/DC adaptor, or DC lead) |
| Privacy Handset Port | RJ9 connector |
| LEDs/Buttons | Status LED, Track, Mute, Up and Down |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C | -22°F to +158°F |
| Storage | -35°C to +85°C | -31°F to +185°F |
| Battery Charging | 0°C to +45°C | 32°F to +113°F |
| Humidity | < =75% RH |
Physical
| Dimensions | mm | inches |
| Dock | 229 x 99 x 76 | 9.0 x 3.9 x 3.0 |
| Outer Box | 290W x 170D x 190H | 11.42W x 6.69D x 7.48H |
| Weight | kg | lbs |
| Dock | 0.67 | 1.47 |
| Box | 1.7 | 3.75 |
Kit Contents
| IsatDock2 DRIVE |

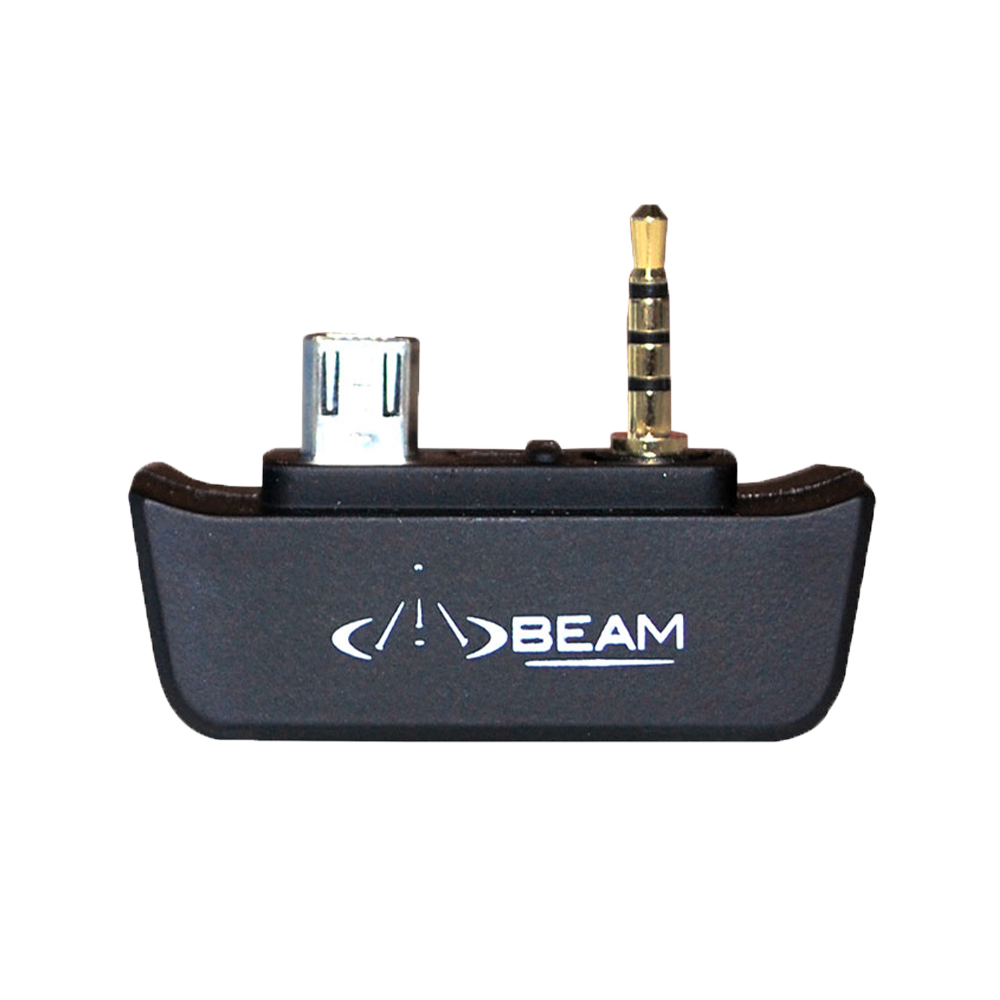

| 2 x IsatDock2 Adaptors |
| Universal Mounting Bracket (RAM) |

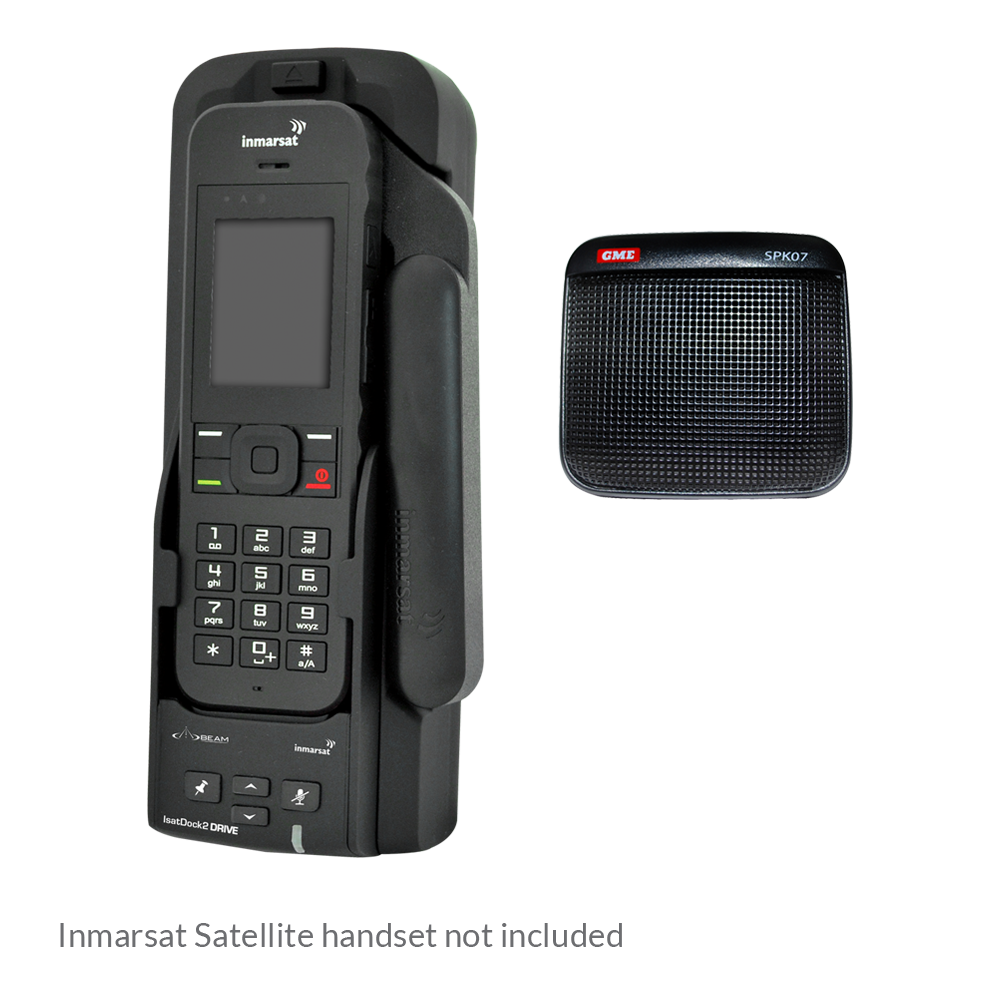

| Speaker & Microphone |
| 10-32V DC Power Cable/fuse kit |
| User Manual |
| Quick Start Guide |
Certifications
| Inmarsat Type Approval |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
| EMC Compliance |
Brochures
Brochure IsatDock2 DRIVE
For more information please download our IsatDock2 DRIVE Brochure.
Download brochure
Brochure IsatDock2 Series
.jpg)
For more information please download our IsatDock2 Series Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
