IsatDock2 PRO (ISD2 PRO)

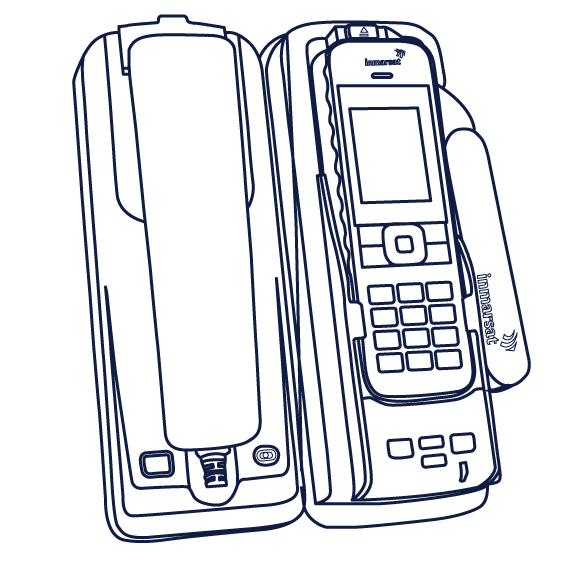

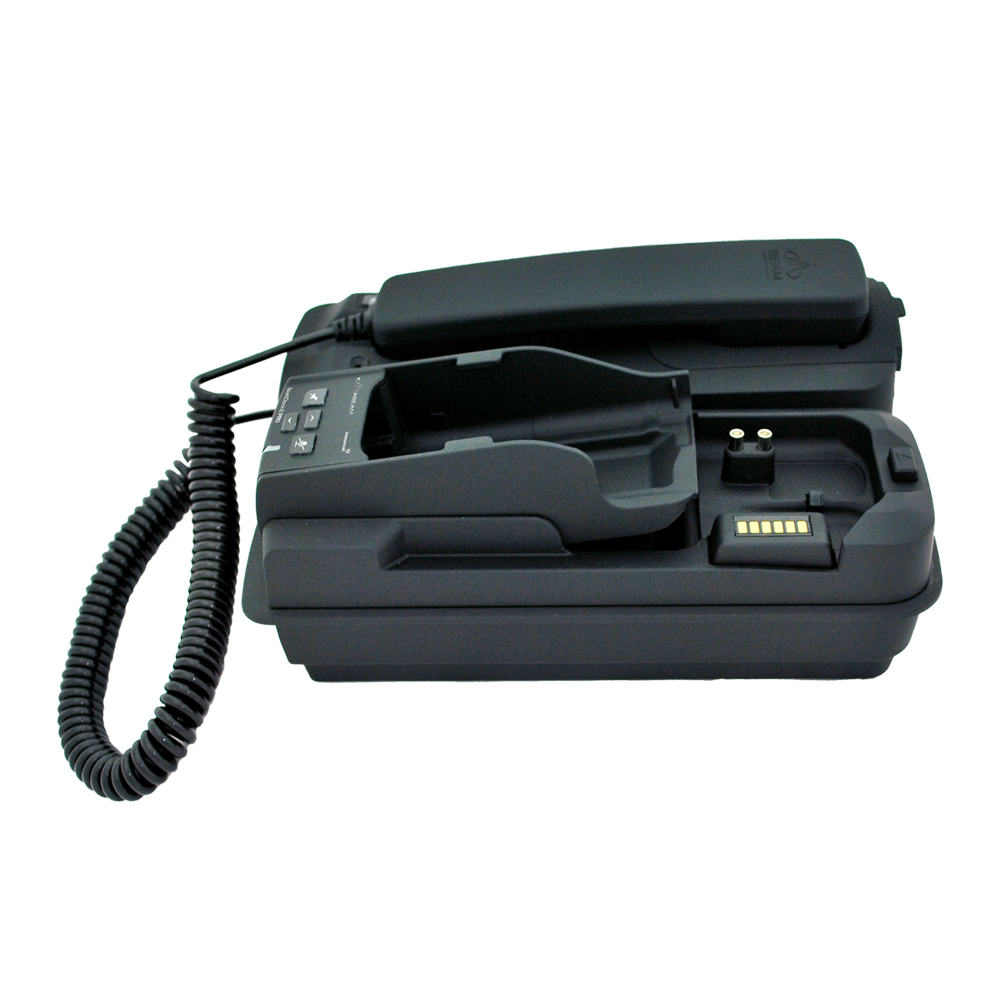

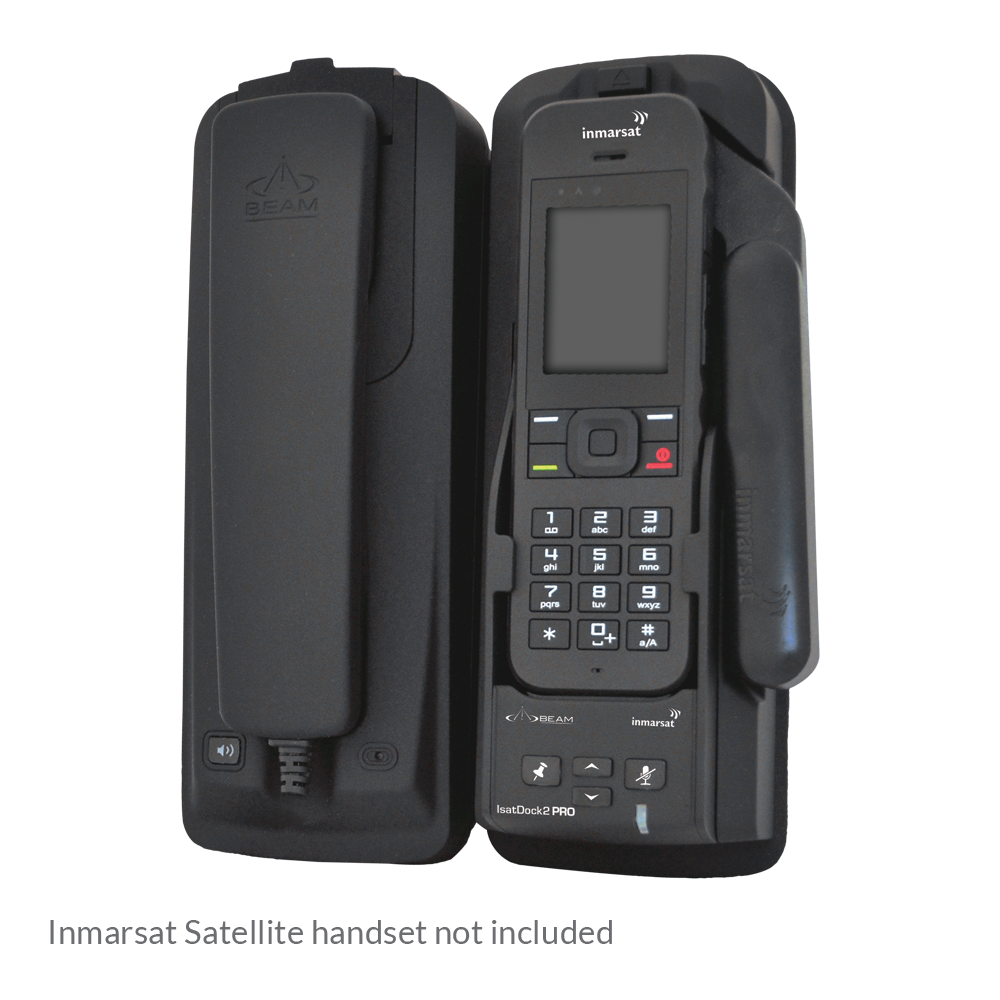

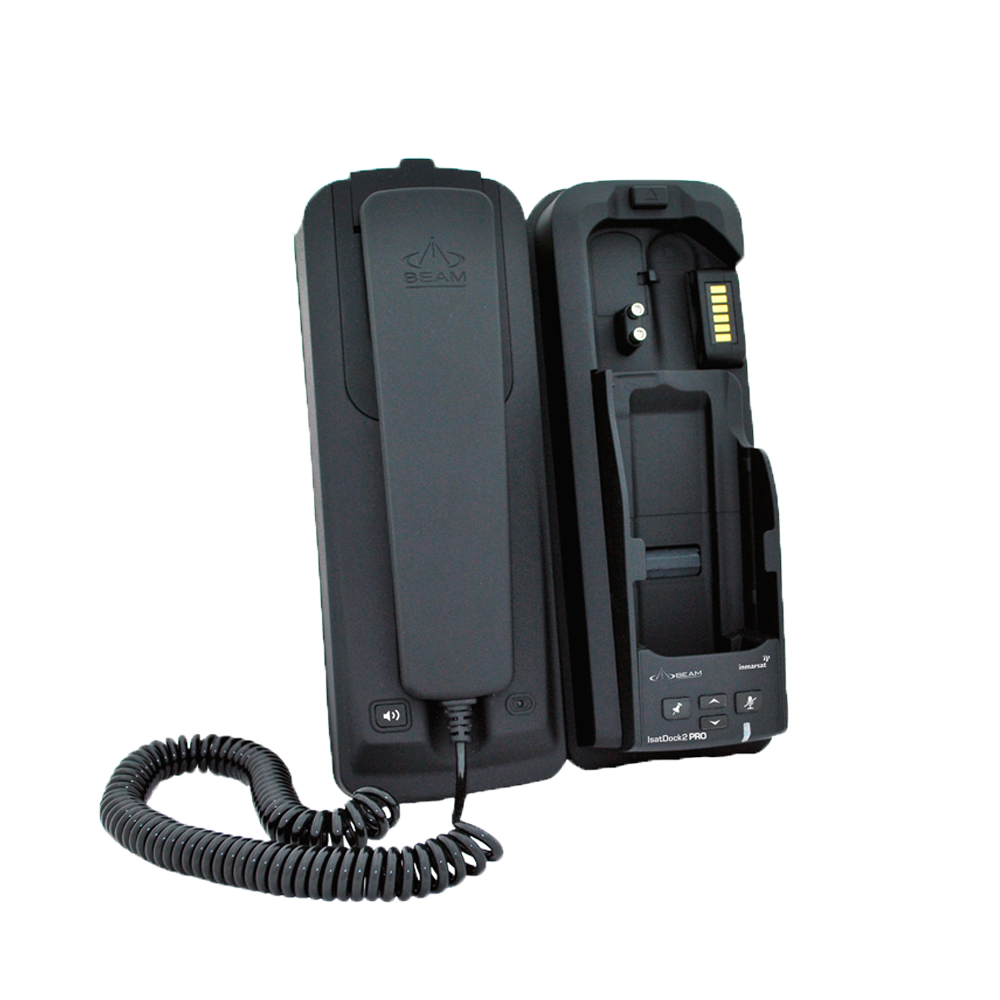

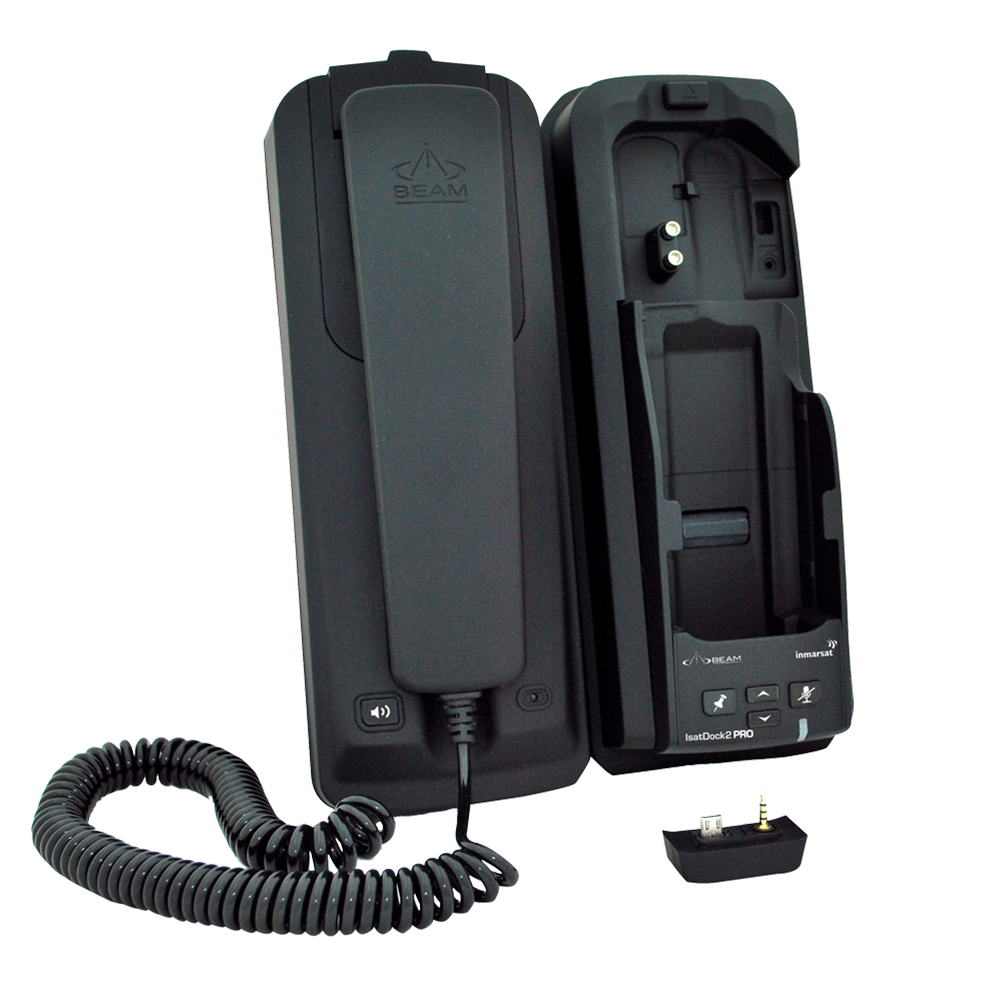

Beam IsatDock2 PRO, the only Inmarsat Certified Dock for the IsatPhone 2, is an intelligent docking station specifically designed for maritime, transport and fixed site applications. The IsatDock PRO 2 Dock supports voice services via Bluetooth, RJ11/POTS, hands-free speakerphone or the active privacy handset inbuilt to the terminal.
- RJ11/POTS
- PABX Integration
- Speakerphone
- Privacy Handset
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- External IO
- Alert
IsatDock2 PRO Features
Intelligent RJ11/POTS interface
The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones up to 600m or 2000’ from the dock itself.
Key Benefits and Features
• High quality all in one design
• Bluetooth connectivity, via IsatPhone 2
• RJ11 POTS interface, cable runs up to 600m/2000ft
• Dedicated Privacy Handset
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the IsatPhone 2 handset)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
• Bluetooth connectivity, via IsatPhone 2
• RJ11 POTS interface, cable runs up to 600m/2000ft
• Dedicated Privacy Handset
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the IsatPhone 2 handset)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
Watch IsatDock2 PRO Video
The perfect partner for your IsatPhone 2, the IsatDock PRO is a versatile dock for use in various applications.
The IsatDock2 PRO supports Personal Alert, Assistance Button and Tracking functionality of the IsatPhone 2 handset whilst docked.
The intelligent RJ11/POTS interface enables cable runs of up to 600m to connect standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
IsatDock2 PRO has an in-built speakerphone for convienent handsfree operation.
Similar items you may be interested in
This bundle includes the following accessories:
IsatDock2 PRO
ISD710 Active Mast/Pole Marine Antenna
Important note: Must use a ...
View product
This bundle includes the following accessories:
IsatDock2 PRO
ISD700 Passive Fixed/Directional Antenna
ISD937 20m Passive Cable Kit
Important note: ...
View product
Beam IsatDock2 MARINE, the only Inmarsat Certified Dock for the IsatPhone 2, is an IP54 ...
View product
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for ...
View product
The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for ...
View product
IsatDock2 PRO Specifications
Power
| Average Power Consumption Current @ 12V | Average | Watts |
| Power w/o IsatPhone 2 | 130mA | 1.6W |
| Standby + Charging | 360mA | 4.3W |
| Transmit + Charging | 875mA | 10.5W |
| Sleep Mode | 5mA | 60mW |
| Peak Current | 3.5A | 42W |
Connectors / Interfaces
| POTS/RJ11 | RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance. |
| Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| 10-32 VDC | 4-way microFit (AC/DC adator, or DC lead) |
| Privacy Handset Port | RJ9 connector |
| Configuration / Data | USB Micro |
| Speakerphone | In-built speaker/microphone |
| LEDs/Buttons | Status LED, Track/Personal Alert, Mute, Up, Down and Speakerphone |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C | -22°F to +158°F |
| Storage | -35°C to +85°C | -31°F to +185°F |
| Battery Charging | 0°C to +45°C | 32°F to +113°F |
| Humidity | <= 75% RH |
Physical
| Dimensions | mm | inches |
| Dock | 245 x 197 x 100 | 9.6 x 7.7 x 3.9 |
| Outer Box | 330 W x 190 D x 230 H | 13 W x 7.5 D x 9.1 H |
| Weight | kg | lbs |
| Weight - Dock | 1.45 | 3.19 |
| Box | 2.45 | 5.39 |
Kit Contents
| IsatDock2 PRO |

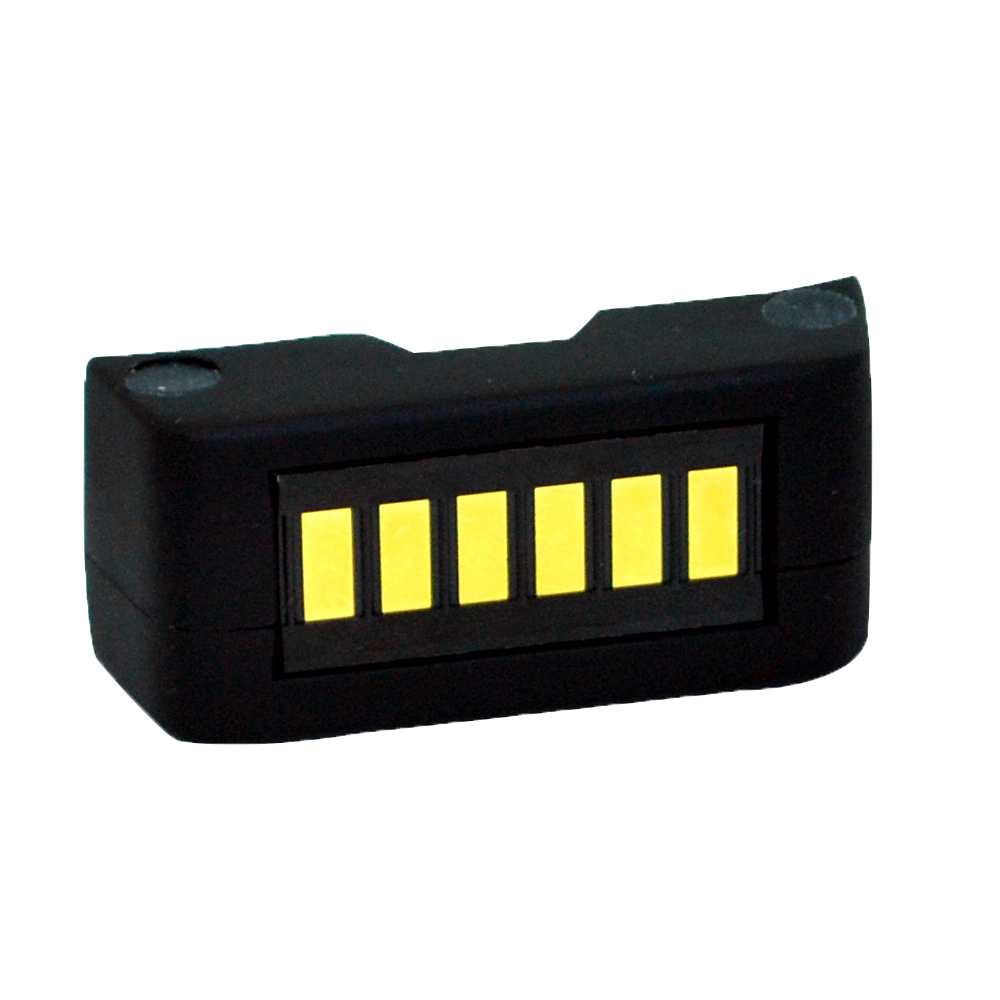

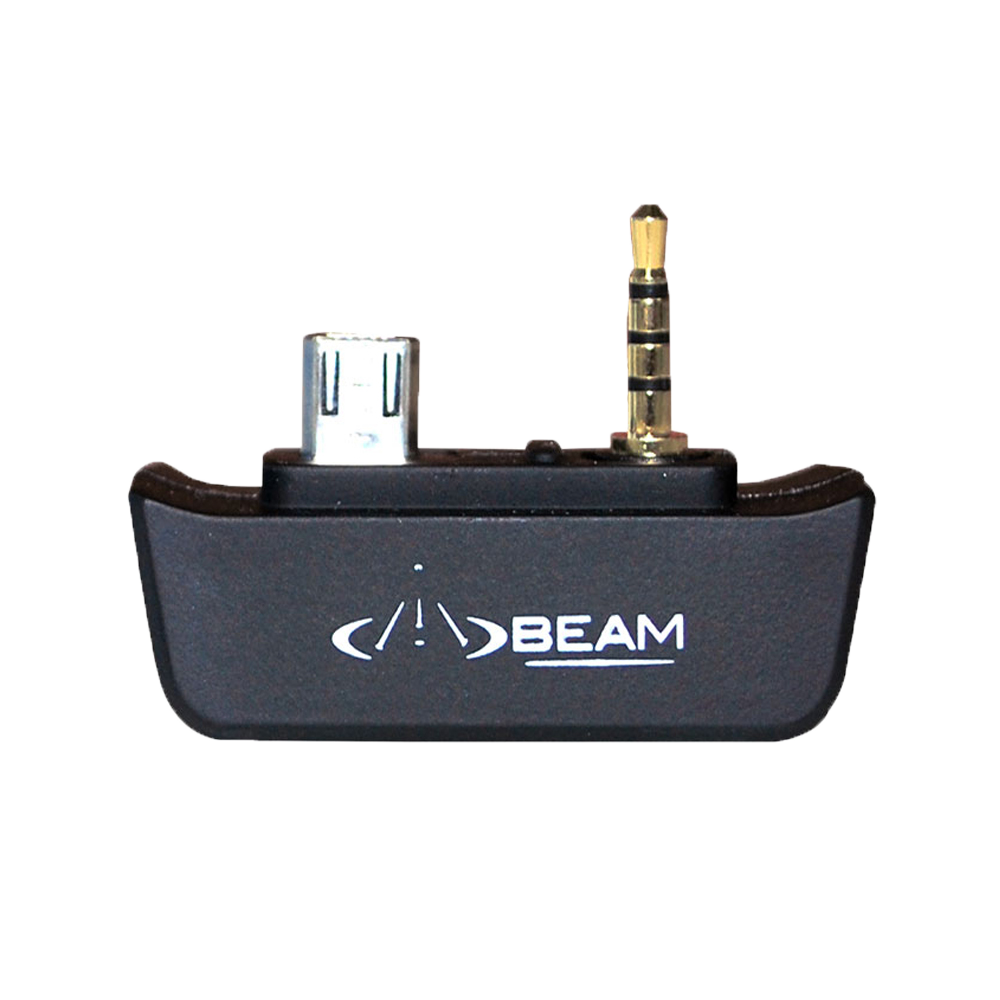

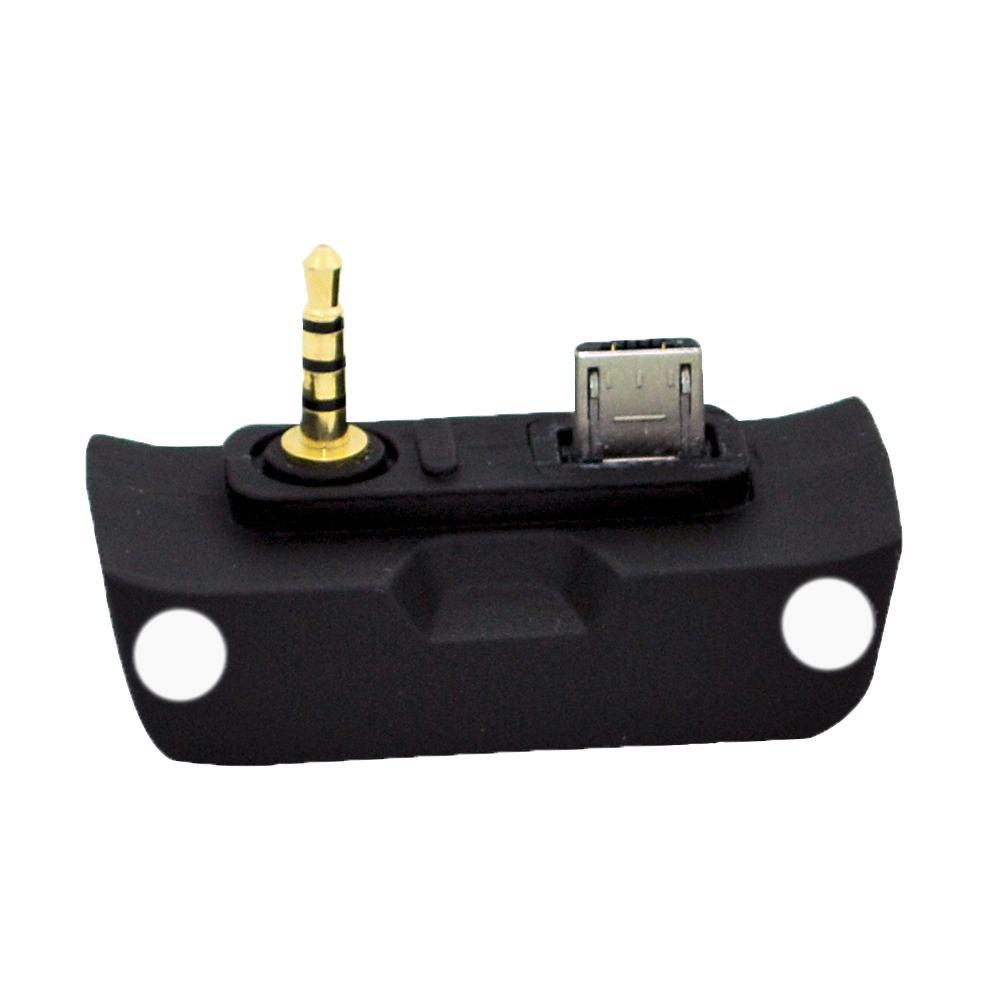

| 2 x IsatDock2 Adaptors |
| 10-32 DC Power Cable |
| 110-240V AC Plug Pack |
| Privacy Handset |
| Wall mounting plate |
| User Manual |
| Quick Start Guide |
Certifications
| Inmarsat Type Approval |
| EMC Compliance |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
Brochures
Brochure IsatDock2 PRO
For more information please download our IsatDock2 PRO Brochure.
Download brochure
Brochure IsatDock2 Series
.jpg)
For more information please download our IsatDock2 Series Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
