Oceana 800 Deluxe Anti-Piracy Kit - DISCONTINUED (OC800-DPB)
MSRP $3,595 USD
The Oceana 800 Anti-Piracy solution ensure that communication is not broken down or lost when all power or communication equipment on board a vessel has been cut off or destroyed by pirates.
- Data
- Voice
- SMS
- RJ11/POTS
- PABX Integration
- Speakerphone
- Bluetooth
- Privacy Handset
- GPS
- Tracking
- Ringer
- Mute
- Intelligent Handset (optional)
- USB
- USB/Data Access
- External IO
- SOS
- Personal Alert
- SIM
- Second SIM
- Instant Message
- LCD
- Phonebook
Oceana 800 Deluxe Anti-Piracy Kit - DISCONTINUED Features
Inmarsat Anti-Piracy Solution
Pinpoint Accuracy
Emergency and Alert
Key Benefits and Features
• Anti-Piracy Covert Antenna
• Dedicated Privacy Handset
• Bluetooth connectivity
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supplied with Active Mast Mount antenna ISD710
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 1 year repair or replacement warranty
Instant Message and Tracking Features
• Tracking
• Periodic location messages
• SMS, SMS to email
• Location message sent upon button press
• Ignition ON/OFF reporting
• Remote location polling via SMS Instant Message Mode
• Single button press on terminal
• Instant GPS location messages
• Supports external “man down” pendant or button
• Remote clearing of alert via SMS
• Tracking/Instant Message content includes:
- Message ID#
- Header
- Latitude/Longitude
- Speed
- Direction
Watch Anti-Piracy Solutions Video
The Beam Piracy Solution is a complete bundled installation that provides an immediate contact/message under threat with the added ability to be able to make or receive a telephone call from the "safe room" at any time.
The Oceana 800 has 2 options for SIM installation. When the side SIM is present, this takes priority over the rear (default) SIM and will automatically register on the Inmarsat service.
The Oceana 800 is water resistant with an Ingress Protection (IP) rating of 54.
When tracking mode is configured and activated, the Oceana 800 can trigger instant messages with a single button press either to a phone number, email address, or any tracking application via SMS/email.
Oceana 800 Deluxe Anti-Piracy Kit - DISCONTINUED Specifications
Inmarsat Transceiver
Inmarsat-4 Satellite | ||
GMR-2+ Frequency Bands | ||
Tx Operating Frequency | 1626.5 - 1660.5 MHz | |
Rx Operating Frequency | 1518 – 1565 MHz (Inmarsat) | 1565.19 – 1585.65 MHz (GPS) |
RF Output Impedance | 50 Ohms | |
Carrier frequencies | Channel 0 = 1626.525 MHz | Channel 169 = 1660.475 MHz |
TX Modulation | GMSK | |
RX Modulation | OQPSK |
Power
Average Power Consumption (Active Antenna Connected) | Current @ 15V Average | Power |
Standby | 0.22A | 3.2W |
Transmit (RJ11/POTS) | 0.58A | 8.7W |
Transmit (Speakerphone) | 0.53A | 7.9W |
Sleep Mode | 5mA | 75mW |
Peak Current | 1.7A | 26W |
GPS Module (Internal)
Channels | 14 tracking, 51 Channel Acquiring |
Update Rate | 1Hz |
Accuracy | Position 2.5mCEP, Velocity 0.1m/s, |
Acquisition TTFF | Timing 300ns |
Sensitivity | Cold 29sec, Hot 1sec |
Operational Limits | -161 dBm |
Dynamics | Altitude 18000m , Velocity 515m/s 4G |
Connectors / Interfaces
POTS/RJ11 | RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured | |
Inmarsat Antenna | frequency and adaptive impedance | |
GPS Antenna | TNC-Female | SMA-Female |
10-32 VDC | 4-way microFit (AC/DC adaptor, or DC lead) | |
Privacy Handset Port | RJ9 connector | |
Configuration / Data | USB Mini B | |
Speakerphone | In-built speaker/microphone |
Environmental Specifications
Temperature | Degrees °C | Degrees °F |
Operating Range | -20°C to +55°C | -4°F to +131°F |
Storage | -30°C to +80°C | -22°F to +176°F |
Humidity | 95% |
Physical
Dimensions | mm | inches |
Terminal | 241 x 185 x 93 | 9.49 x 7.28 x 3.66 |
Weight | kg | lbs |
Terminal | 1.27 | 2.80 |
BEAM Covert Marine Antenna
Physical Specifications | High quality Marine enclosure Active antenna Temp Range: -40°C to + 70°C / -40°F to 158°F Pole / Mast mounting SMA – SMA GPS / TNC – SMA GSPS Omni directional |
Antenna Power | DC Power supplied by IsatDock MARINE No additional power box required |
Physical Dimensions | Height – 250mm (9.84”) Weight – 1.1kg (2.42lbs) |
Instant Message
Instant Message | Single button press |
1 x Alarm Loop | Bare wire – Normally Closed, Loop IN to OUT |
Track | Inbuilt - single key press |

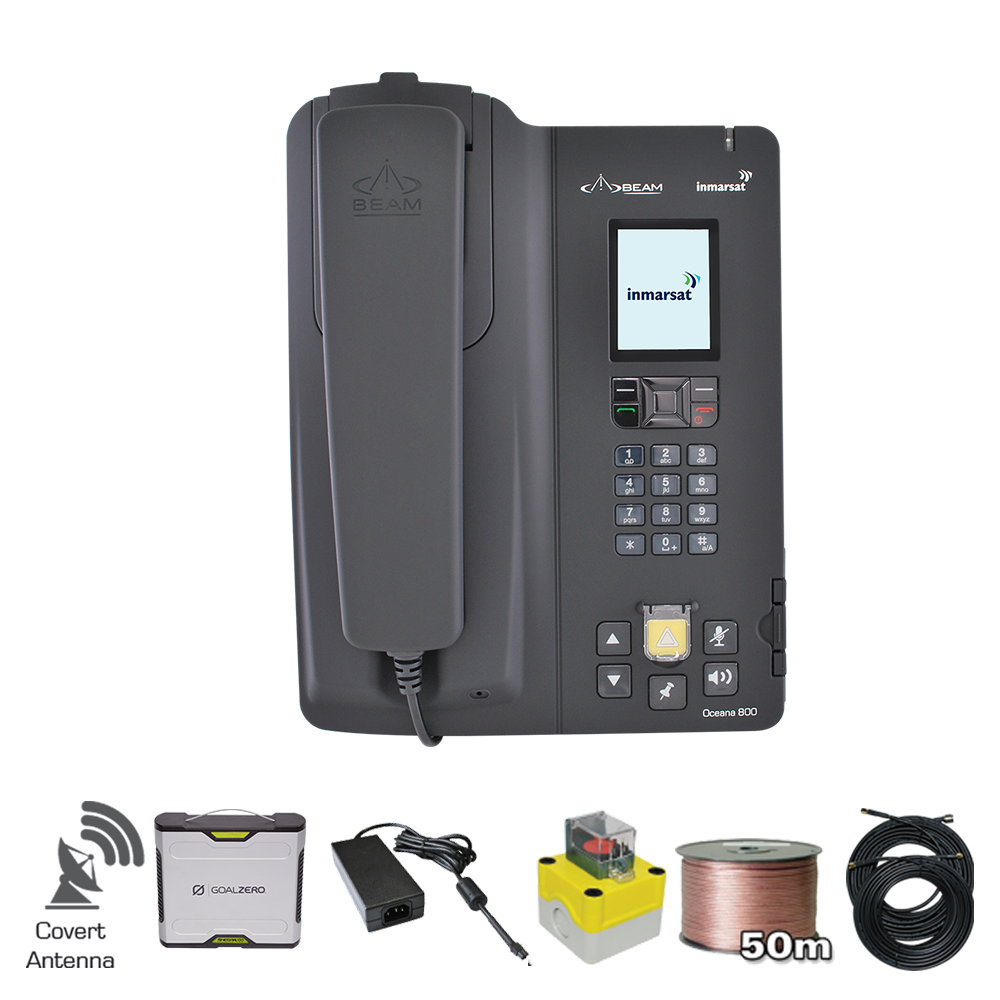

Kit Contents
Beam OC800 Terminal |
Beam Inmarsat Dual Mode Covert Antenna |
RST060 UPS Battery Pack |
ISD934 18.5m Cable Kit |
RST995 Beam Alert Button |
RST996 Beam Alert Button Loop Wire 50m |
Certifications
Inmarsat Type Approval |
Inmarsat |
FCC |
CE Compliance |
Electrical Safety |
RoHS |
Industry Canada |
C-Tick |
IP54 Rating 5 = Protected against dust limited ingress (no harmful deposits). 4 = Protection against water sprayed from all directions - limited ingress permitted. |
RST060 UPS Battery Pack Physical Specifications
Dimensions | mm | inches |
Dimensions | 147 x 38 x 133 | 5.8 x 1.5 x 5.25 |
Weight | kg | lbs |
Unit Weight | 0.8 | 1.9 |
RST060 UPS Battery Pack Environmental Specifications
Temperature | Degrees °C | Degrees °F |
Operating Usage Temperature | 0°C to -40°C | 32°F to -104°F |
Brochures
BEAM Anti-Piracy Solution for Inmarsat2
