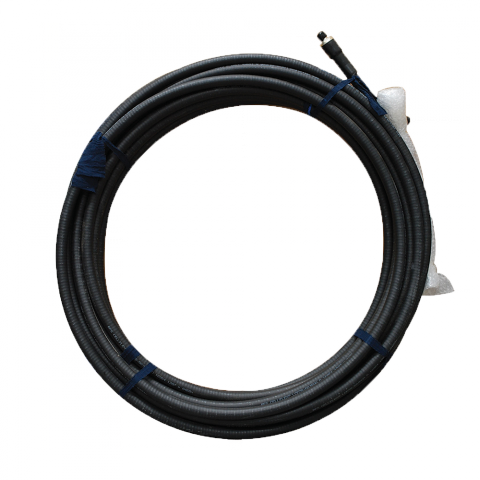

Iridium Beam Passive Antenna Cable Kit - 30m/98ft (RST936)
Beam RST936 Iridium 30 metre (98 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.
Iridium Beam Passive Antenna Cable Kit - 30m/98ft Features
Beam RST936 Iridium 30 metre (98 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.
Download Certificate of Origin
Similar items you may be interested in
Beam RST931 Iridium 3 m (10 feet) antenna cable provides a flexible installation option for ...
View product
Beam RST932 Iridium 6 m (19 feet) antenna cable provides a flexible installation option for ...
View product
Beam RST930 Iridium 9 meter (29 feet) antenna cable provides a flexible installation option for ...
View product
Beam RST933 Iridium 12 metre (39 feet) antenna cable provides a flexible installation option for ...
View product
Beam RST935 Iridium 20 metre (65 feet) antenna cable provides the ability to run long ...
View product
Iridium Beam Passive Antenna Cable Kit - 30m/98ft Specifications
Main Cable (Passive)
| Length | m | ft |
| Main Cable | 29 | 95.14 |
| Dimensions | mm | inches |
| External Diameter | 27.8 | 1.2 |
| Bend Radius | 120 | 4.72 |
| Bend Radius - repeated | 250 | 9.84 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -50°C to +85°C | -58°F to +185°F |
Fly-Leads (Passive)
| Length | m | ft |
| Fly-Lead 1 | 0.5 | 1.64 |
| Fly-Lead 2 | 0.5 | 1.64 |
| Dimensions | mm | inches |
| External Diameter | 6.1 | 0.24 |
| Bend Radius | 19.1 | 0.75 |
| Bend Radius - repeated | 63.5 | 2.5 |
| Temperature | Degrees °C | Degrees °F |
| Operating | -40°C to +85°C | -40°F to +185°F |
Connectors
| Main Cable | N-Male to N-Male |
| Fly-Lead 1 | N-Female to TNC-Male |
| Fly-Lead 2 | N-Female to TNC-Male |
Total Kit Weight
| kg | lbs |
| 11.94 | 26.32 |
