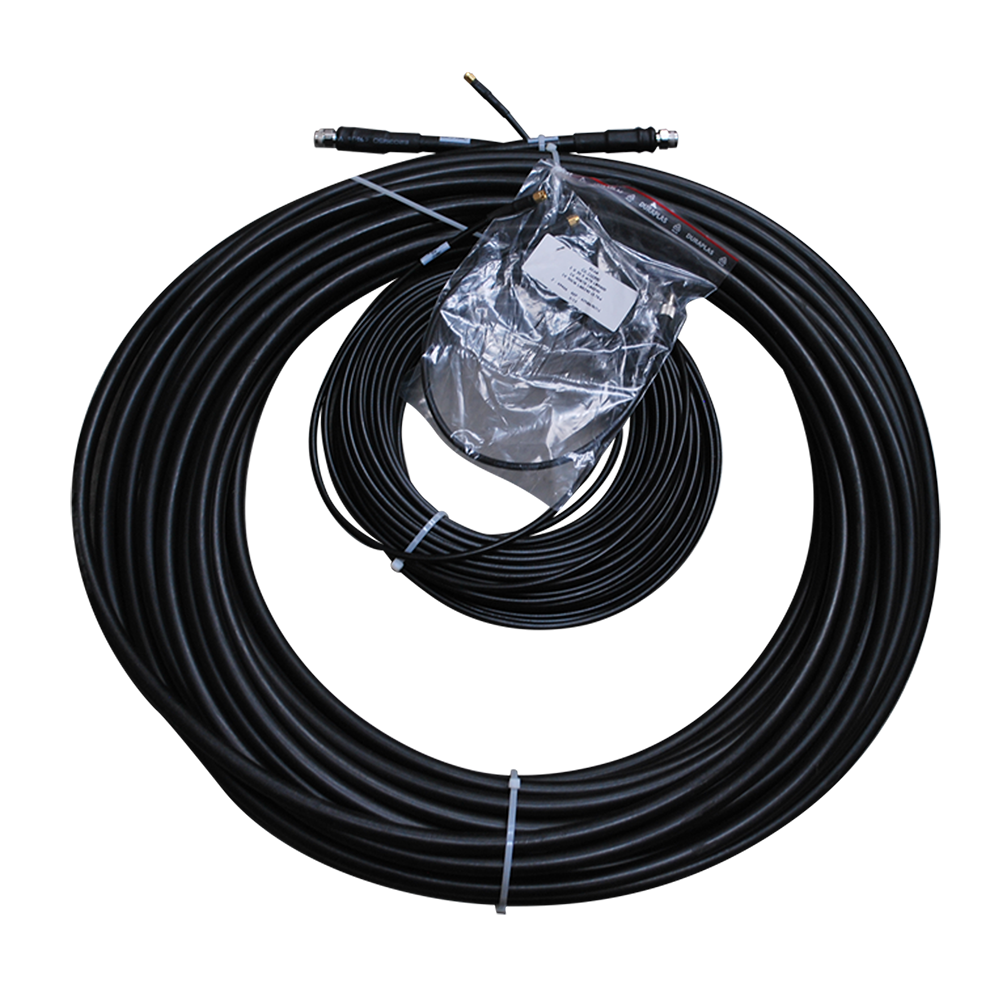

Inmarsat Beam Passive SMA/TNC Cable Kit - 40m/131ft (ISD940)
Beam ISD940 Inmarsat 40m (131 feet) antenna cable provides fixed site installations with the flexibility to run long distances and is pre-terminated with SMA/TNC connectors.
Inmarsat Beam Passive SMA/TNC Cable Kit - 40m/131ft Features
The kit includes 40m of Inmarsat antenna cable and 40m of GPS antenna cable. The cable is only for fixed installations.
Passive Cable kits can be specially ordered of lengths up to 50m. Allow up to 4-6 weeks.
* ONLY use with the ISD700 Passive Antenna
Download Certificate of Origin
Passive Cable kits can be specially ordered of lengths up to 50m. Allow up to 4-6 weeks.
* ONLY use with the ISD700 Passive Antenna
Similar items you may be interested in
Beam ISD936 Inmarsat 10m (33 feet) antenna cable provides fixed site installations and is pre-terminated ...
View product
Beam ISD937 Inmarsat 20m (66 feet) antenna cable provides fixed site installations with the flexibility ...
View product
Beam ISD939 Inmarsat 30m (98 feet) antenna cable provides fixed site installations with the flexibility ...
View product
Beam ISD941 Inmarsat 50m (164 feet) antenna cable provides fixed site installations with the flexibility ...
View product
Inmarsat Beam Passive SMA/TNC Cable Kit - 40m/131ft Specifications
Inmarsat Cable
| SAT Cable Length | Passive 39.5m SAT TNC(m)-TNC(m) | |
| Dimensions | mm | inches |
| Connector Diameter | 19.04/19.04 | 0.75 / 0.75 |
| Cable Diameter | 14.99 | 0.59 |
| Thickest Diameter | 22 | 0.87 |
| Bend Radius Single | 38 | 1.5 |
| Bend Radius Repeat | 152 | 5.98 |
Cable Kit
| Weight | kg | lb |
| Cable Kit | ~25 | ~55.12 (box) |
| Dimensions | m | ft |
| Cable Kit | 40 | 131 |
GPS Cable
| GPS Cable Length | Passive 40m GPS SMA(m)-SMA(m) | |
| Dimensions | mm | inches |
| Connector Diameter | 8.1/8.1 | 0.32 |
| Thickest Diameter | 9 | 0.35 |
| Cable Diameter | 6.1 | 0.24 |
| Bend Radius Single | 19.1 | 0.75 |
| Bend Radius Repeat | 63.5 | 2.5 |
Fly Lead Inmarsat Cable
| Adaptor length | Adaptor 1 50cm TNC(f)-SMA(m) | |
| Dimensions | mm | inches |
| Connector Diameter | 13.7/8.1 | 0.54 / 0.32 |
| Cable Diameter | 6.1 | 0.24 |
| Thickest Diameter | 14 | 0.55 |
| Bend Radius Single | 19.1 | 0.75 |
| Bend Radius Repeat | N/A | N/A |
Inmarsat Beam Passive SMA/TNC Cable Kit - 40m/131ft Features
The kit includes 40m of Inmarsat antenna cable and 40m of GPS antenna cable. The cable is only for fixed installations.
Passive Cable kits can be specially ordered of lengths up to 50m. Allow up to 4-6 weeks.
* ONLY use with the ISD700 Passive Antenna
Download Certificate of Origin
Passive Cable kits can be specially ordered of lengths up to 50m. Allow up to 4-6 weeks.
* ONLY use with the ISD700 Passive Antenna
