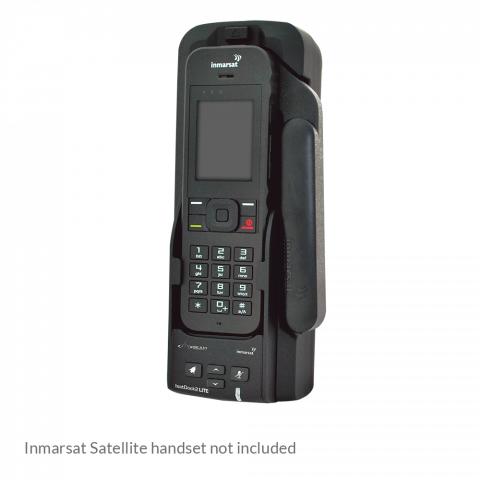

IsatDock2 LITE (ISD2 LITE)
MSRP $795 USD

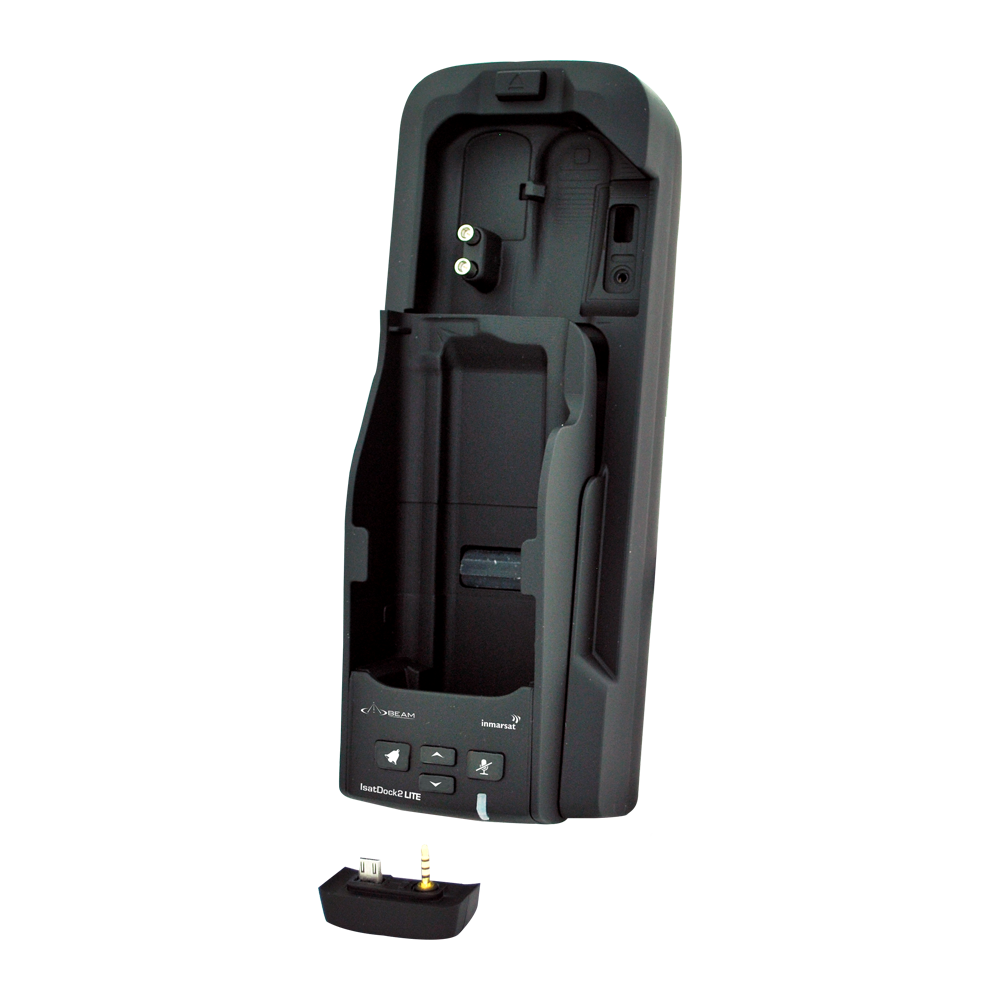

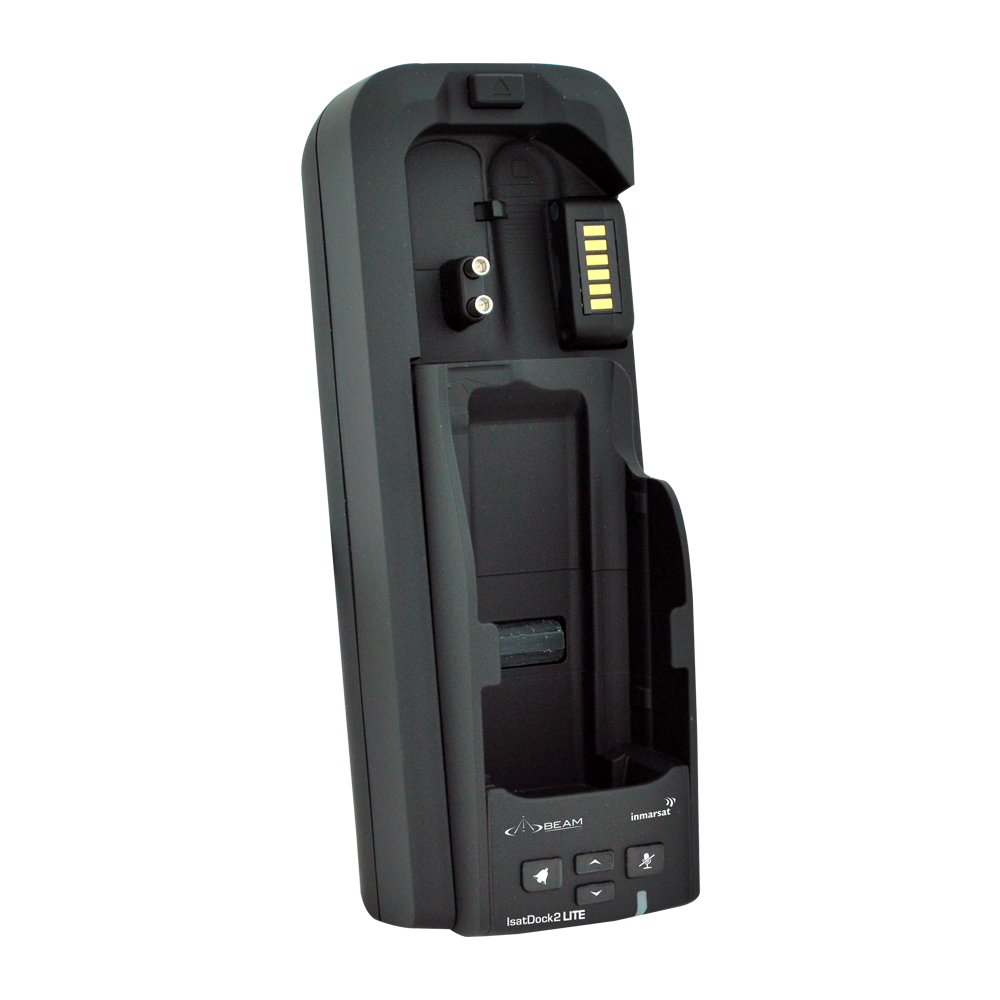

The Beam IsatDock2 LITE, the only Inmarsat Certified Dock for the IsatPhone 2, is an entry-level docking station for the Inmarsat satellite handset that can be used in various maritime and transport applications extending the functionality of the handset.
- Privacy Handset (optional)
- Docking
- Charging
- Ringer
- Mute
- USB
- Alert
IsatDock2 LITE Features
Bluetooth Connection
The IsatDock2 LITE enables voice calling capabilities via the inbuilt Bluetooth of the handset or an optional privacy handset simply connected to the dock.
Key Benefits and Features
• Slim line compact installation
• Privacy Handset option (ISD955)
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack 110/240 input (optional)
• SMA Connectors – Inmarsat Antenna / GPS Antenna
• Full certified, FCC, Industry Canada, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
• 100% factory tested
• Privacy Handset option (ISD955)
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack 110/240 input (optional)
• SMA Connectors – Inmarsat Antenna / GPS Antenna
• Full certified, FCC, Industry Canada, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
• 100% factory tested
Watch IsatDock2 LITE Video
The perfect partner for IsatPhone 2, the IsatDock LITE is a low cost universal solution.

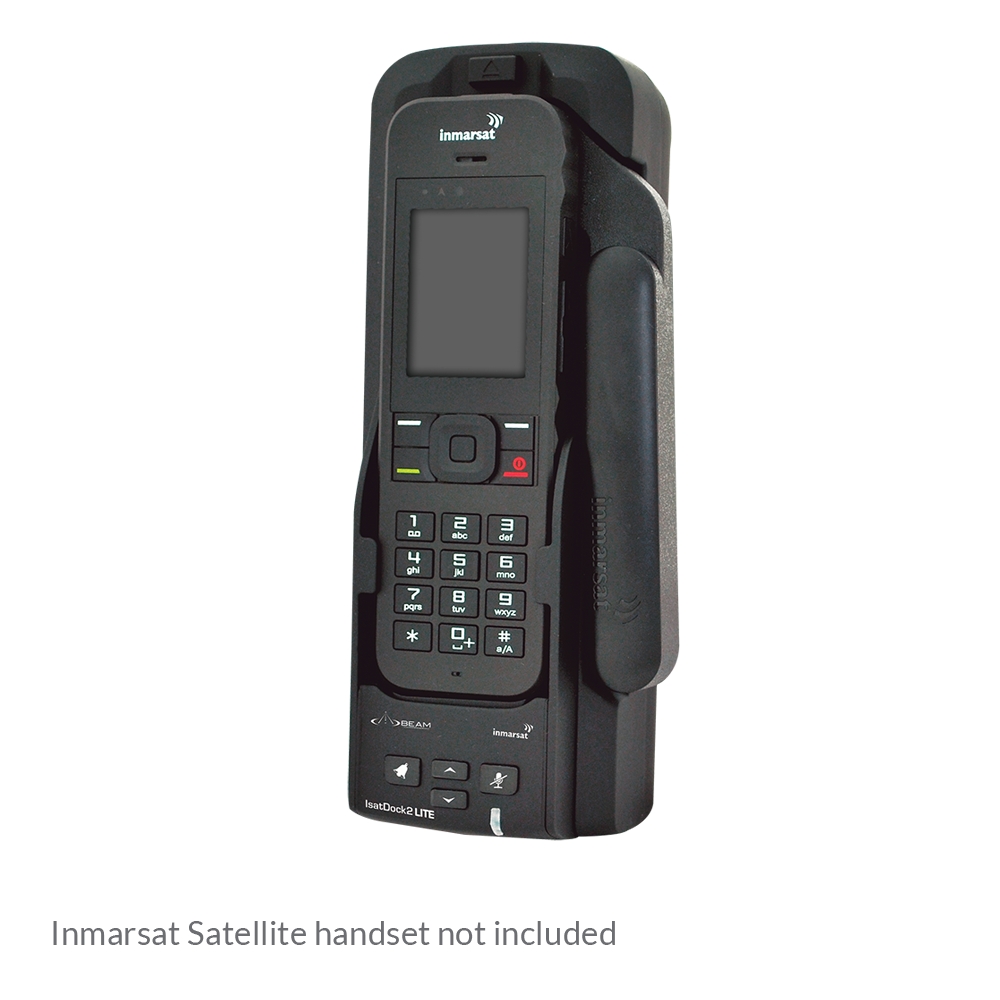

The IsatPhone 2 handset, fits securely in the dock, its features include phone charging, USB data port, in-built ringer and allows antenna and power to be permanently connected to the dock, ready for use.
Beam IsatDock2 LITE has an in-built ringer that allows you to toggle through the available ring tones

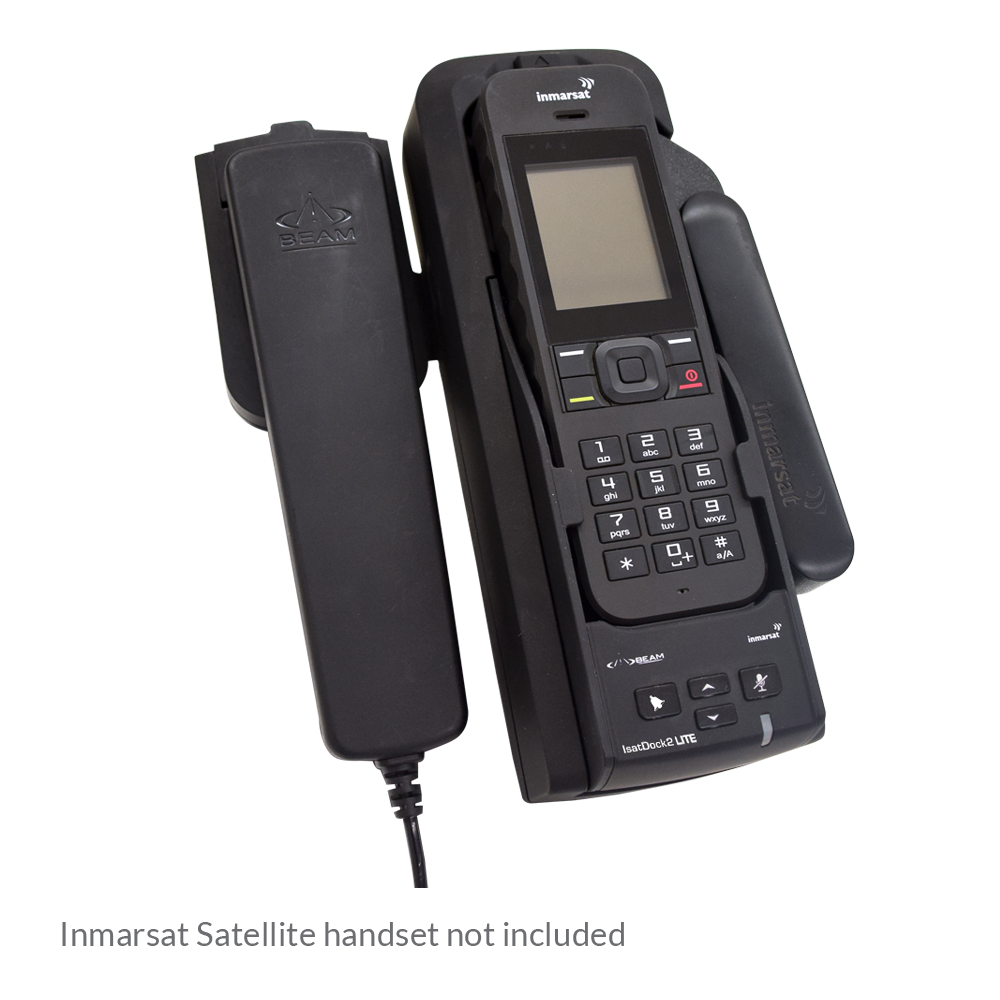

Beam IsatDock2 LITE supports optional Privacy Handset, ready to receive incoming calls. It features auto sensing answer and hang-up intelligence.
Similar items you may be interested in
This bundle includes the following accessories:
IsatDock2 LITE
ISD700 Fixed/Directional Antenna Passive
ISD955 Privacy Handset
ISD936 10m Cable Kit
...
View product
This bundle includes the following accessories:
IsatDock2 LITE
ISD710 Mast/Pole Marine Antenna Active
ISD955 Privacy Handset
...
View product
The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium 9555 ...
View product
IsatDock2 LITE Specifications
Power
| Average Power Consumption | Current @ 12V | Watts |
| Power w/o IsatPhone 2 | 130mA | 1.6W |
| Standby + Charging | 360mA | 4.3W |
| Transmit + Charging | 875mA | 10.5W |
| Sleep Mode | 5mA | 60mW |
| Peak Current | 3.5A | 42W |
Connectors / Interfaces
| Inmarsat Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| 10-32 VDC | 4-way microFit (AC/DC adaptor, or DC lead) |
| Privacy Handset Port | RJ9 connector |
| Configuration / Data | USB Micro |
| LEDs/Buttons | Status LED, Ringer, Mute, Up and Down |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -35°C to +85°C | -31°F to +185°F |
| Storage | -20°C to +70°C | -4°F to +158°F |
| Battery Charging Temp * It is ideal for the ambient temperature to be approximately 18 degrees below the 45°C upper limit for the handset to charge the battery whilst docked. |
0°C to +45°C | 32°F to +113°F |
| Humidity | <- 75% RH |
Physical
| Dimensions | mm | inches |
| Dock | 229 x 99 x 76 | 9.0 x 3.9 x 3.0 |
| Outer Box | 290 W x 170 D x 190 H | 11.42 W x 6.69 D x 7.48 H |
| Weight | kg | lbs |
| Dock | 0.56 | 1.23 |
| Box | 1.35 | 2.97 |
Kit Contents
| IsatDock2 LITE |

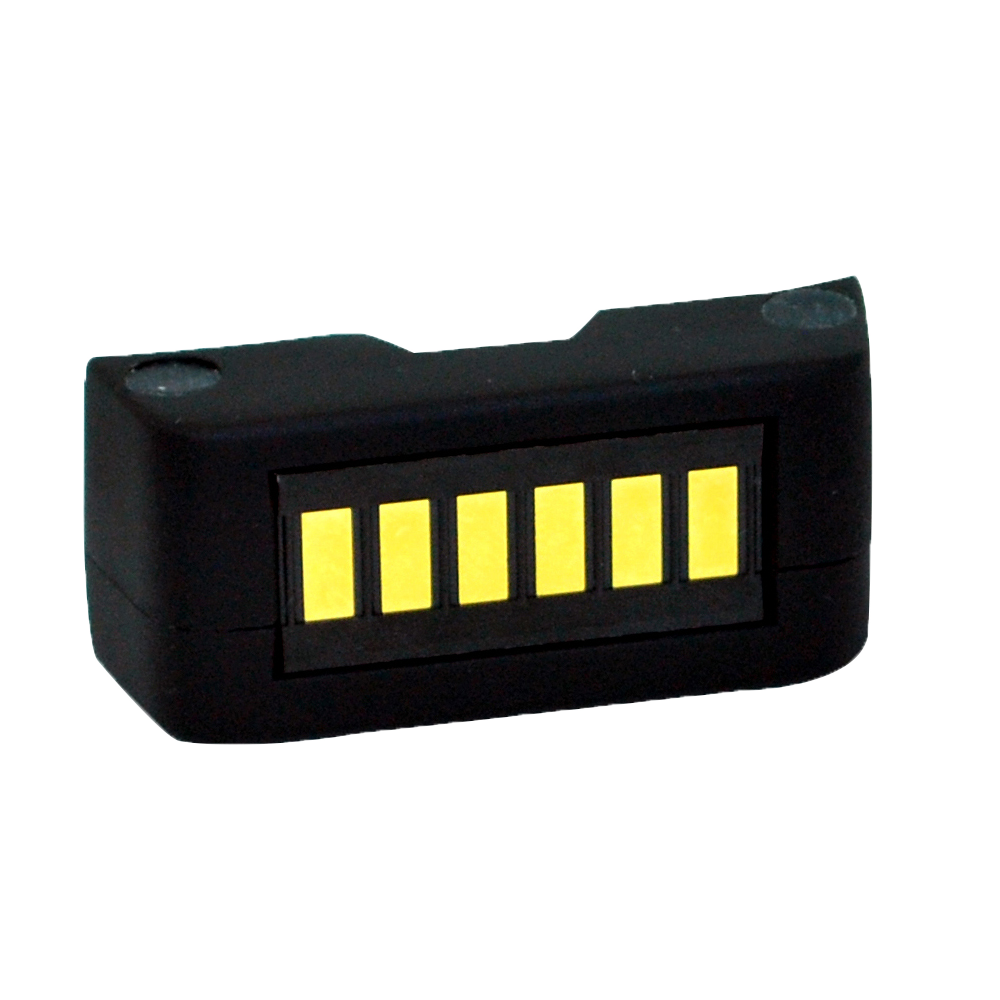

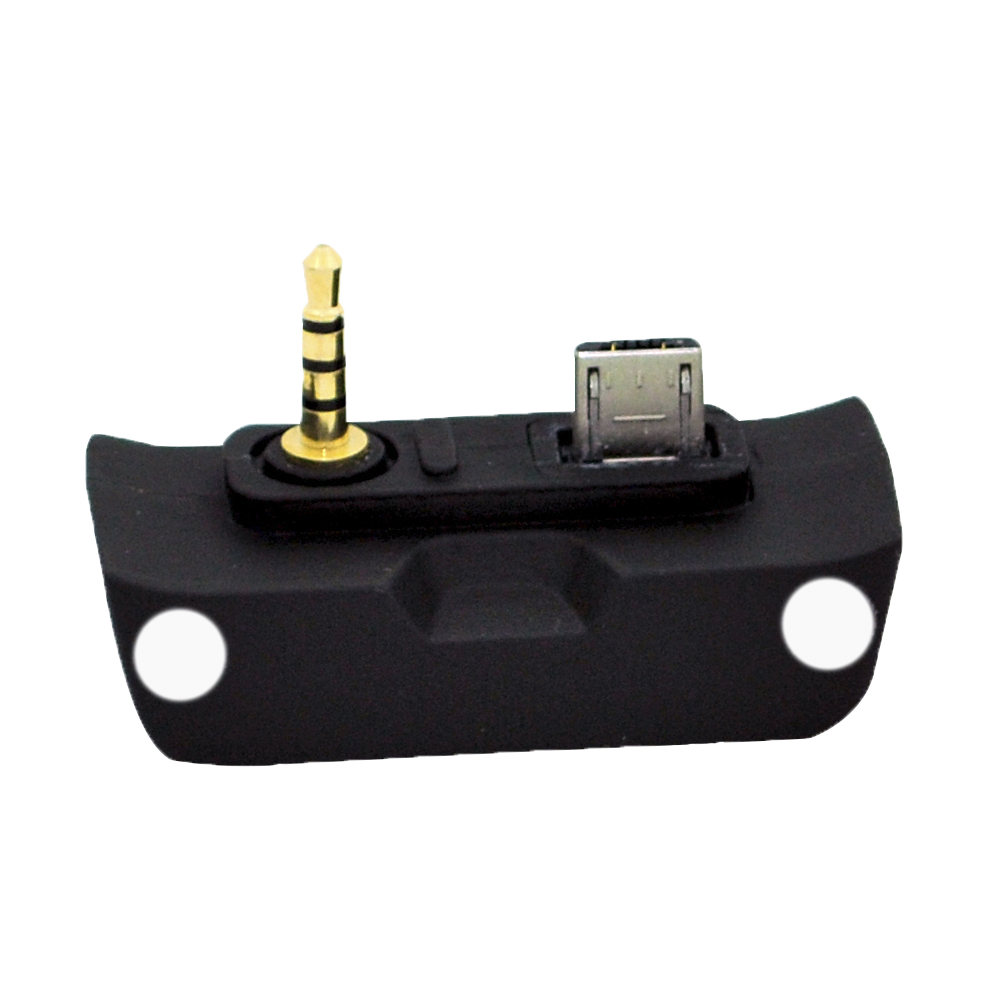

| 2 x IsatDock2 Adaptors |
| 10-32 DC Power Cable |
| Universal Mounting Bracket (RAM) |
| User Manual |
| Quick Start Guide |
Certifications
| Inmarsat Type Approval |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
| EMC compliance |
Brochures
Brochure IsatDock2 LITE
For more information please download our IsatDock2 LITE Brochure.
Download brochure
Brochure IsatDock2 Series
.jpg)
For more information please download our IsatDock2 Series Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportAccessories
The Beam ISD955 Privacy Handset is an optional accessory for IsatDock2 LITE, IsatDock2 DRIVE, IsatDock ...
View product
Beam ISD951 Power Pack is a 110-240V AC plug pack for use with most of ...
View product

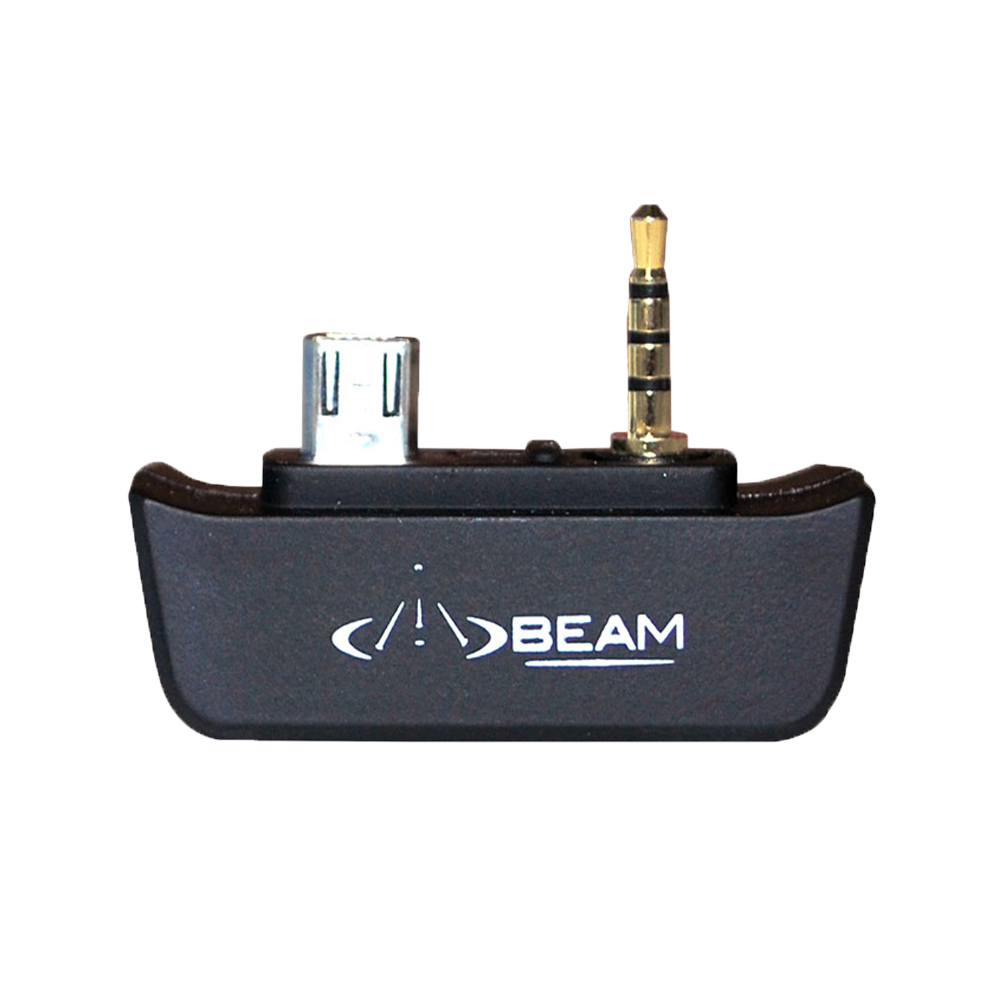

The IsatDock2 adapter has been designed to Inmarsat specifications to enhance docking mechanism for the ...
