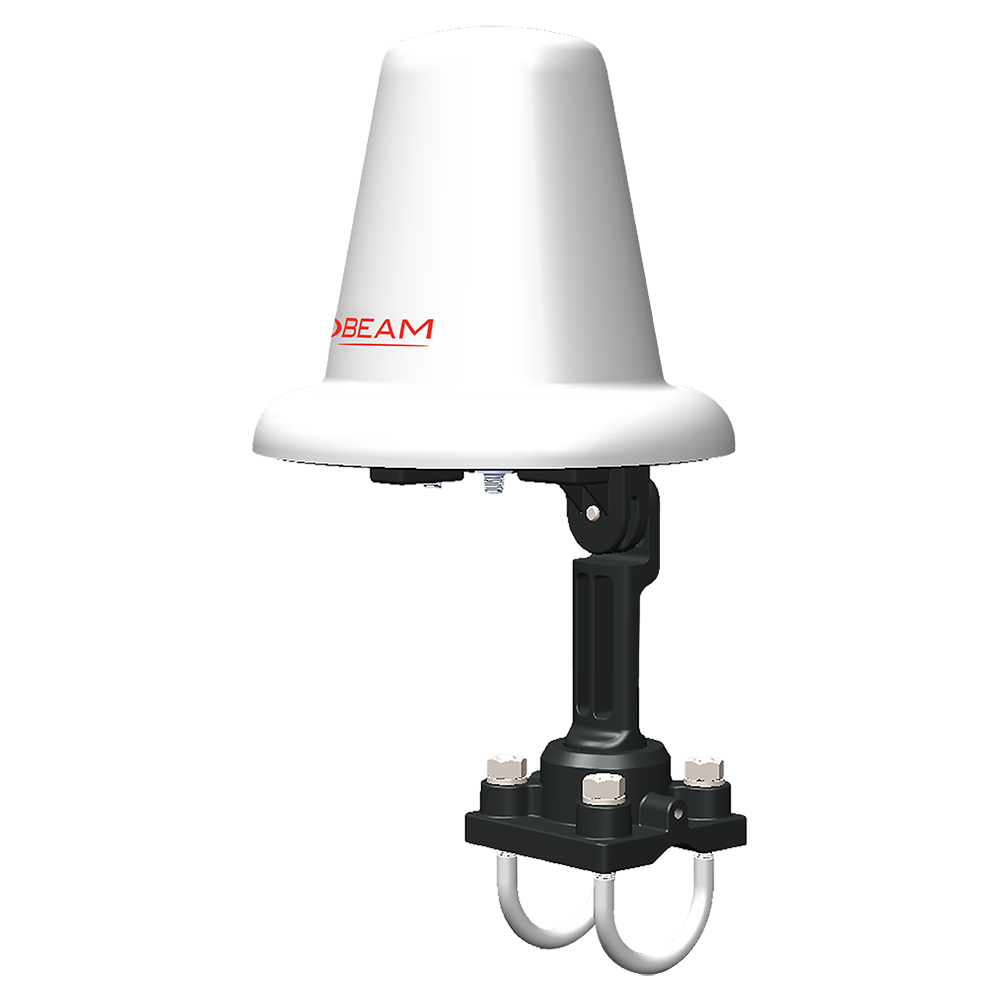

Inmarsat Beam Fixed/Directional Antenna Passive (ISD700)
The Beam Inmarsat GSPS Direction passive Antenna ISD700 is a land based antenna for the Inmarsat GSPS service and is specifically designed for fixed site application.
Inmarsat Beam Fixed/Directional Antenna Passive Features

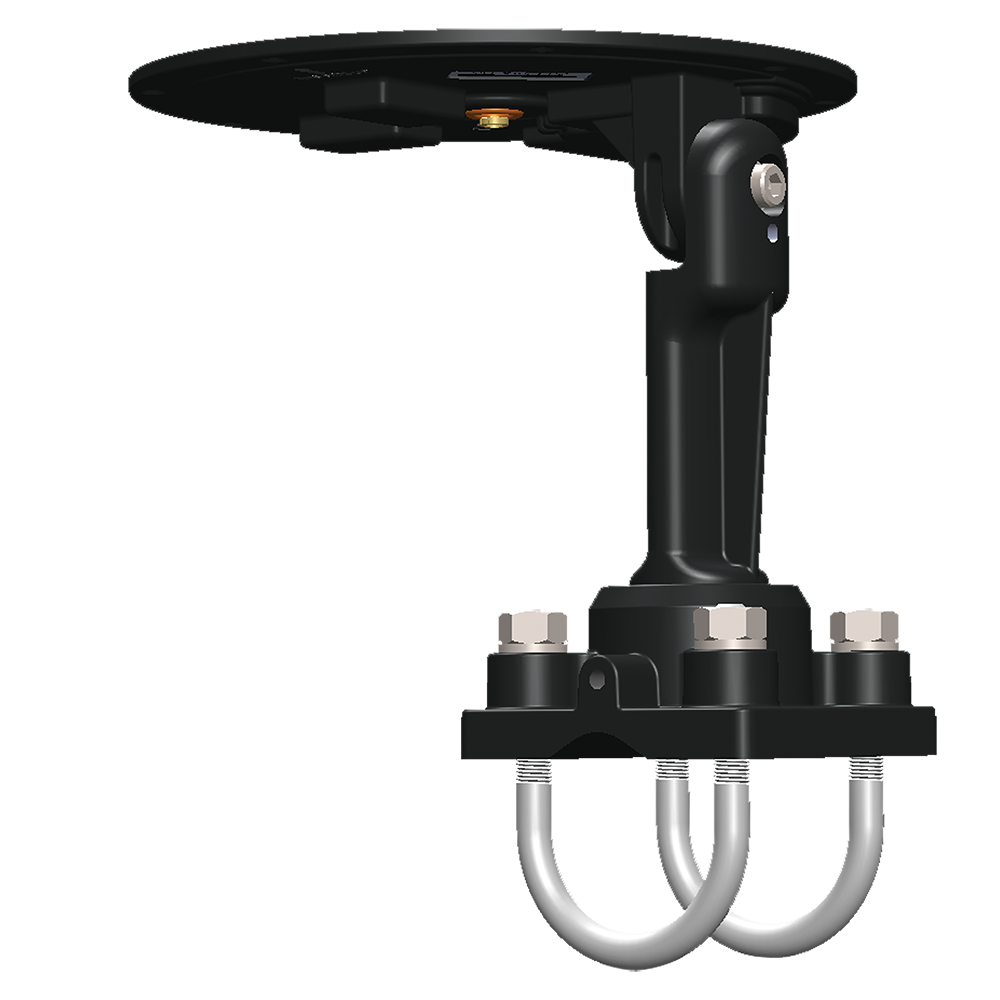

The ISD700 is supplied with an adjustable mounting bracket it allows the antenna to be mounted and then pointed in the direction of the Inmarsat GSPS satellite within the coverage area of installation.

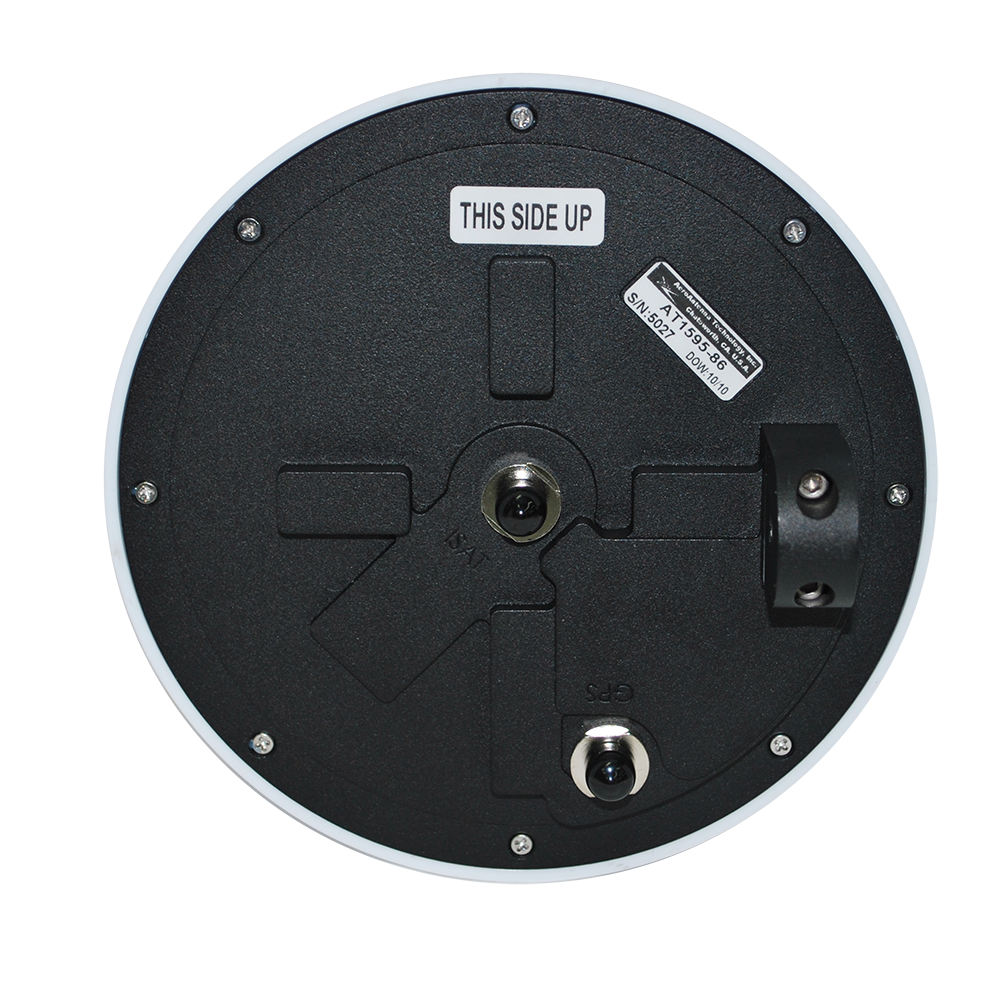

The antenna connections (GSPS and GPS) are connected directly to the base of the antenna.
The ISD700 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals, however MUST only be used with Beam certified passive antenna cables and should never be used in a maritime or vehicular installation.
Key Features
• Inmarsat type approved
• High quality fixed antenna
• Passive antenna
• Temp range: -40°C to +70°C
• Pole / mast mounting
• SMA / SMA
• Directional
• 12 month repair or replacement warranty
• High quality fixed antenna
• Passive antenna
• Temp range: -40°C to +70°C
• Pole / mast mounting
• SMA / SMA
• Directional
• 12 month repair or replacement warranty
Similar items you may be interested in
The Inmarsat Magnetic Antenna ISD715 is used for the Inmarsat GSPS service and whilst designed ...
View product
The Inmarsat Bolt Mount Antenna ISD720 is used for the Inmarsat GSPS service and whilst ...
View product
The Iridium Pole Mount Antenna RST710 is designed for Maritime and fixed site based applications. ...
View product
Inmarsat Beam Fixed/Directional Antenna Passive Specifications
General
| RF Output Impedance | 50 Ohms |
| Equipment Type | Fixed Base Station |
| Antenna Description | Type Transport |
| Intended Operating Environment | - Commercial - Light Industry & Heavy Industry |
Frequency
| Inmarsat Transmit (operational) | 1626.5 to 1660.5 MHz |
| Inmarsat Transmit (extended) | 1668.0 to 1675.0 MHz |
| Inmarsat Receive (operational) | 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GNSS (GPS) L1) |
| Inmarsat Receive (extended) | 1518.0 to 1525.0 MHz |
Environmental
| Temperature | Degrees ºC | Degrees ºF |
| Operating | -40 to +70 | -40 to +158 |
Physical
| Dimensions | mm | inches |
| Antenna | 231 x 142 x 142 | 9.10 x 5.60 x 5.60 |
| U-Bolt | 25.4 dia | 1 dia |
| Box | 260 W x 210 D x 170 H | 10.24 W x 8.27 D x 6.69 H |
| Weight | kg | lbs |
| Antenna | 0.9kg | 1.95lbs |
| Box | 1 kg | 2.20 lbs |
Connector
| Inmarsat (GSPS) | SMA Female |
| GNSS (GPS) | SMA Female |
Brochures
Brochure ISD700 Fixed/Directional Antenna (Passive)
For more information please download our ISD700 Fixed/Directional Antenna Brochure.
Download brochure
