PotsDOCK 9555 (9555PD)

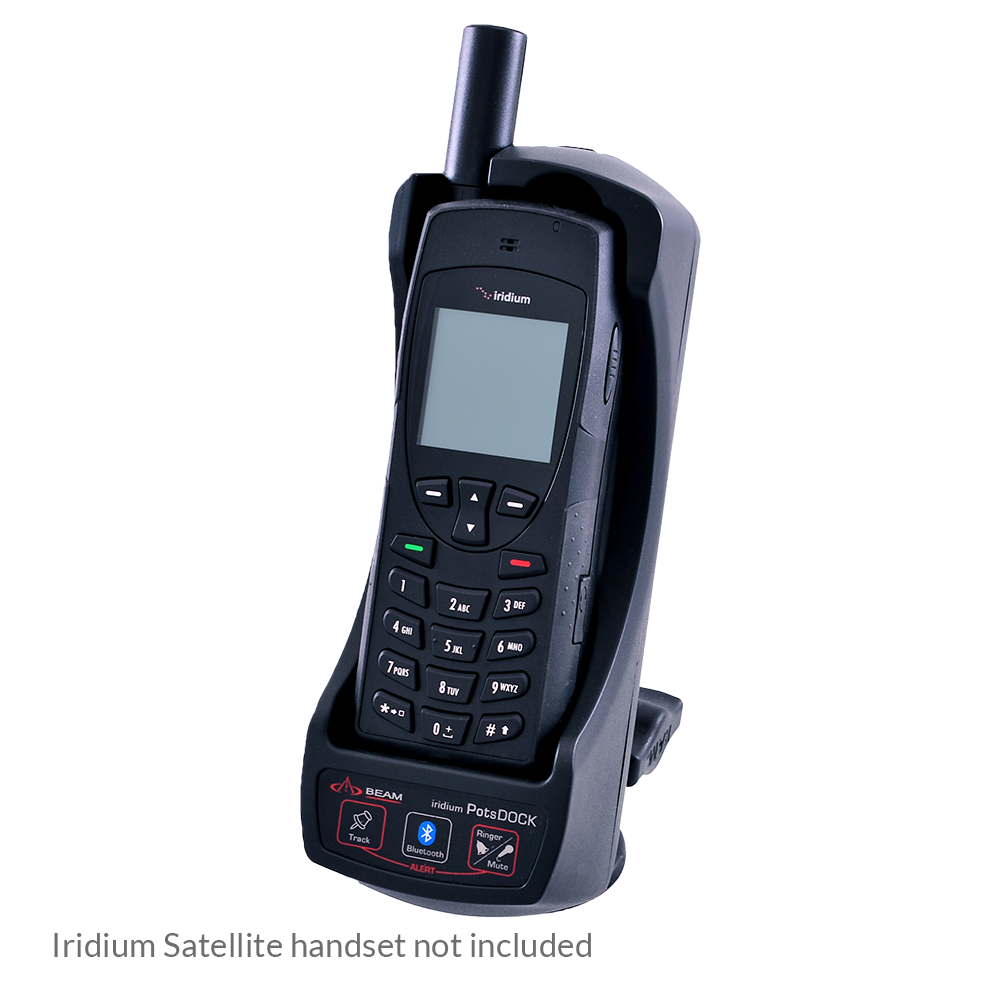

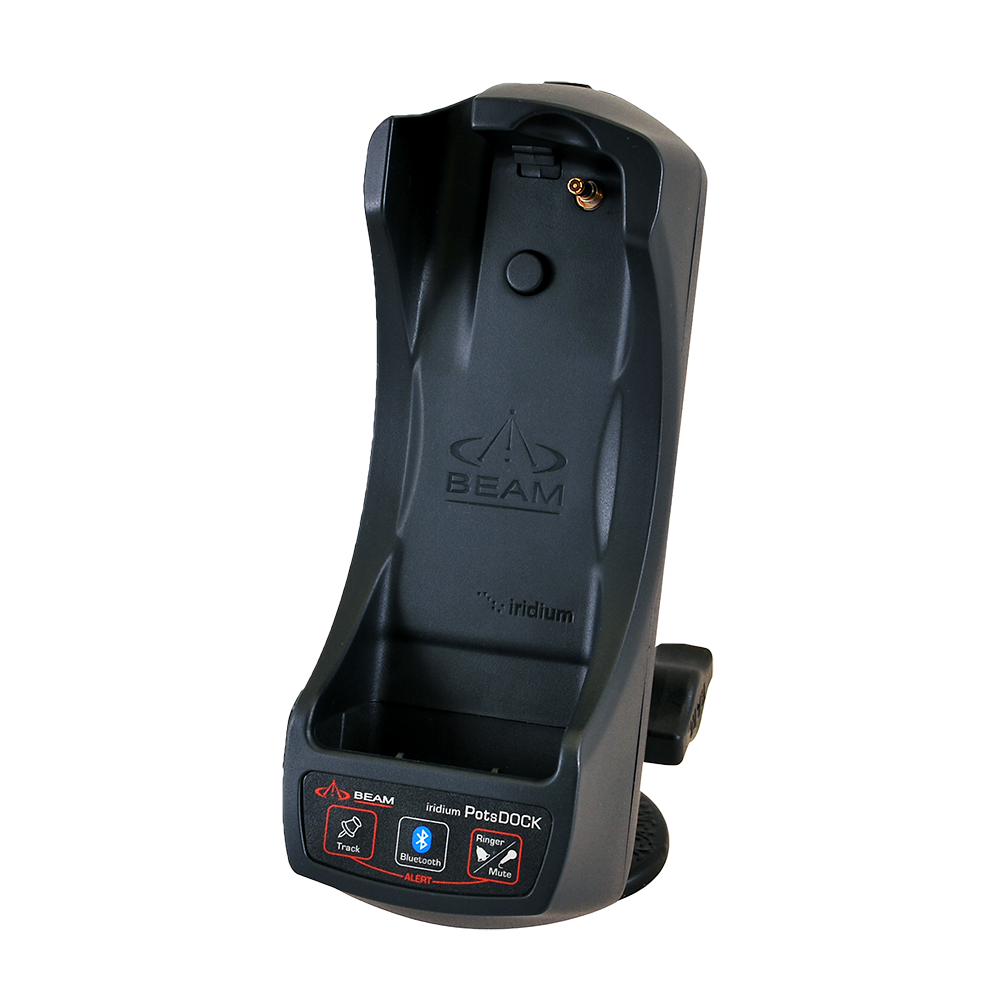

The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for the Iridium 9555 handset that can be used in various maritime, transport or fixed site applications considerable extending the functionality of the 9555 handset.
- RJ11/POTS
- PABX Integration
- Bluetooth
- Privacy Handset (optional)
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- External IO
- Alert
PotsDOCK 9555 Features
Intelligent POTS Interface
Key Benefits and Features
• Integrated Bluetooth connectivity
• RJ11/POTS interface
• Voice, SMS, SBD and Circuit Switched Data capable
• Inbuilt tracking and SOS
• USB data interface
• RS232 D9 Serial Interface
• Accessory/Ignition sense
• 9-32V DC power input
• TNC and SMA for GPS
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
PotsDOCK 9555 Features
The PotsDOCK 9555 inbuilt GPS provides pinpoint accuracy and enables tracking worldwide. Tracking and Alert Messages can be sent via SMS or Short Burst Data, if provisioned on the handset.
Bluetooth communications enables the user to have a complete hands-free telephone conversation over the Iridium satellite network. The convenience of having a Bluetooth as part of the PotsDOCK 9555 cradle provides safety of hassle free calling and the freedom to roam up to 33 feet (10 meters) from your Bluetooth device.

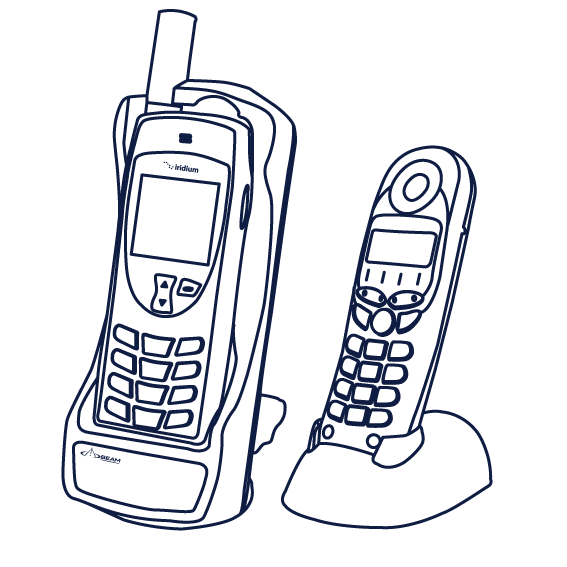

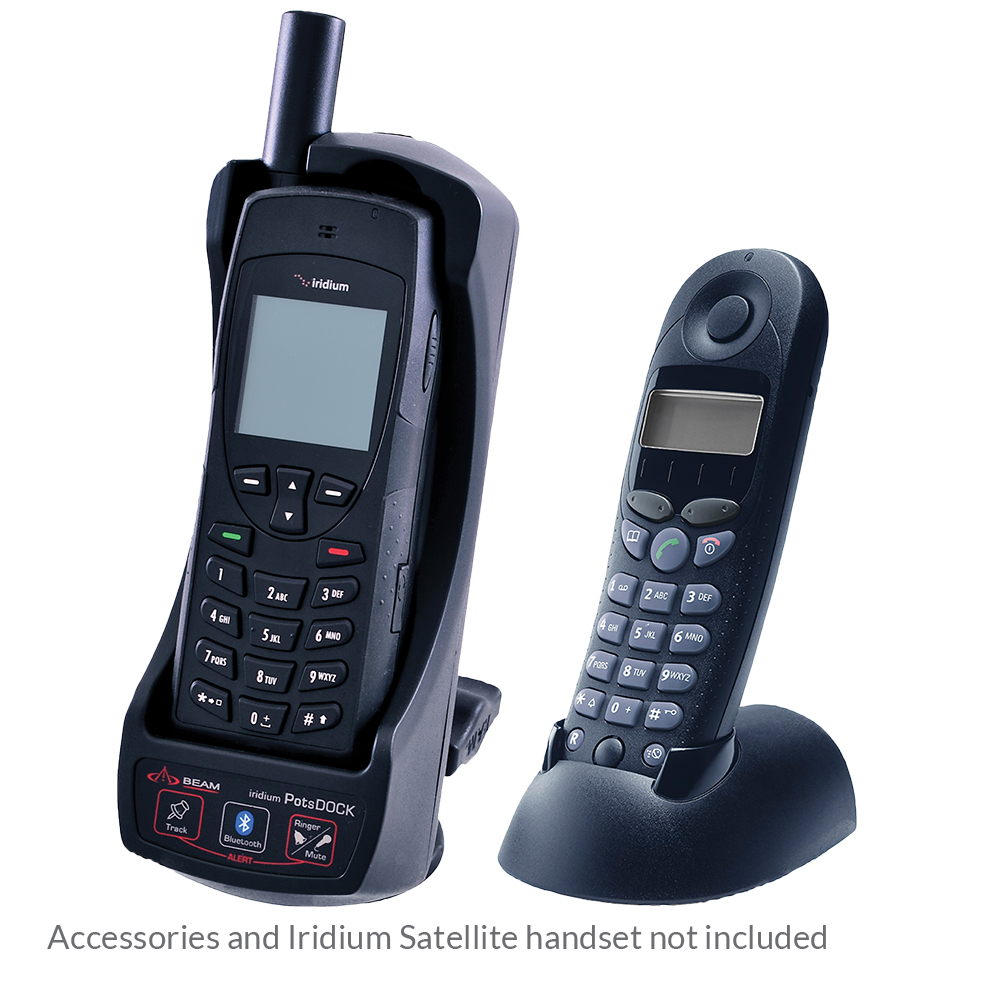

Any standard analogue POTS (Plain Old Telephone Service) telephone is supported by the PotsDOCK. It supplies power to the analogue phone as well as ring, dial and busy tones.
Similar items you may be interested in
Reviews
Just 4 Kids Children Charity
PotsDOCK 9555 Specifications
Iridium Network
| Voice / Data Modulation | 2.4 kbps |
| Compressed Data | 10 - 12 kbps |
| 9555 Handset | 1616 - 1625 MHz |
Power
| Rated Input | 9-32V DC, 2A max | |
| AC Power Pack | 90-250V AC 50-60Hz | Output 12V 45W |
| Average Power Consumption | Current @ 12V | Power Watts |
| Standby, handset + RJ11 | 90mA | 1.1W |
| Transmit, handset + RJ11 | 0.5A | 6W |
| Sleep Mode | 25mA | 0.3W |
I/O Alarm / Alert
| Track | Inbuilt - single key press |
| 1 x Alarm Loop | Bare Wire - “Normally Closed” Loop IN to OUT Up to 500m cable run/multi buttons |
| Alert Button | In-built on PotsDOCK - 2 Key Press |
Bluetooth® Module (Internal)
| Legal | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Beam Communications is under license. Other trademarks and trade names are those of their respective owners. |
| Regulatory | Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: SatDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E Japan Standard: R 201 NY 07215089 |
| Antenna | Integrated chip antenna |
| Power | Default = Class 2 (< 10 metres). Class 1 (<100 metres), +18dBm max. 2.4GHz - 2.4835GHz Unlicensed ISM Band |
| Profiles | HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Pro¬file v.1.5 & SPP - Serial Port Profile |
| System | Bluetooth® ® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence. |
GPS Module (Internal)
| Channels | 14 tracking, 51 Channel Acquiring |
| Update Rate | 1Hz |
| Accuracy | Position 2.5mCEP, Velocity 0.1m/s, |
| Acquisition TTFF | Timing 300ns |
| Sensitivity | Cold 29sec, Hot 1sec |
| Operational Limits | --161 dBm |
| Dynamics | Altitude 18000m , Velocity 515m/s 4G |

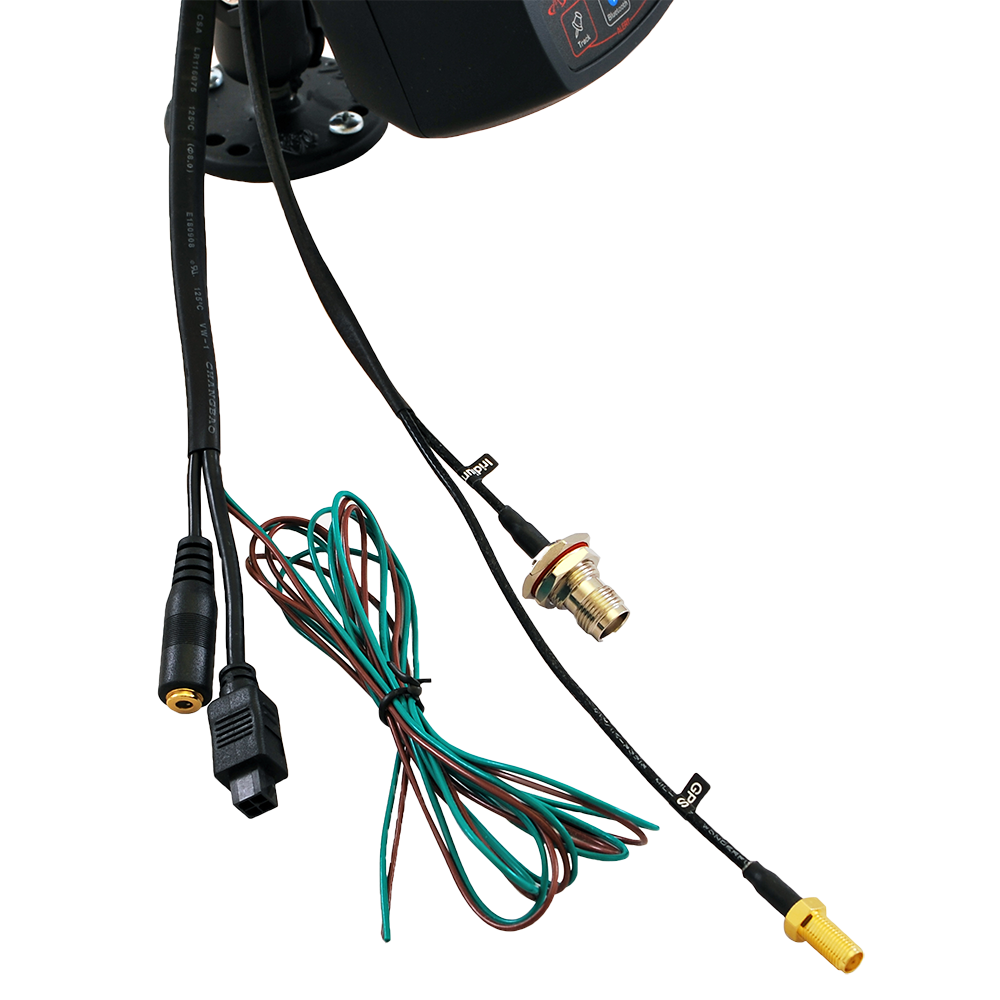

Connectors / Interfaces
| Iridium Antenna | Fixed Cable to TNC-Female |
| POTS/RJ11 | RJ11/2-wire, complex or 600 Ω, 5REN, 600m adjustable dial/busy tones/frequency, adaptive Z |
| GPS Antenna | Fixed Cable to SMA-Female |
| 9 - 32VDC | 4-way microFit (AC/DC adator, or DC lead) |
| Bluetooth Voice Only | Inbuilt module/antenna, class 1 (up to 300m) Bluetooth® system 2.0v+EDR, CE and FCC |
| Privacy Handset Port | 4 pole 3.5mm jack |

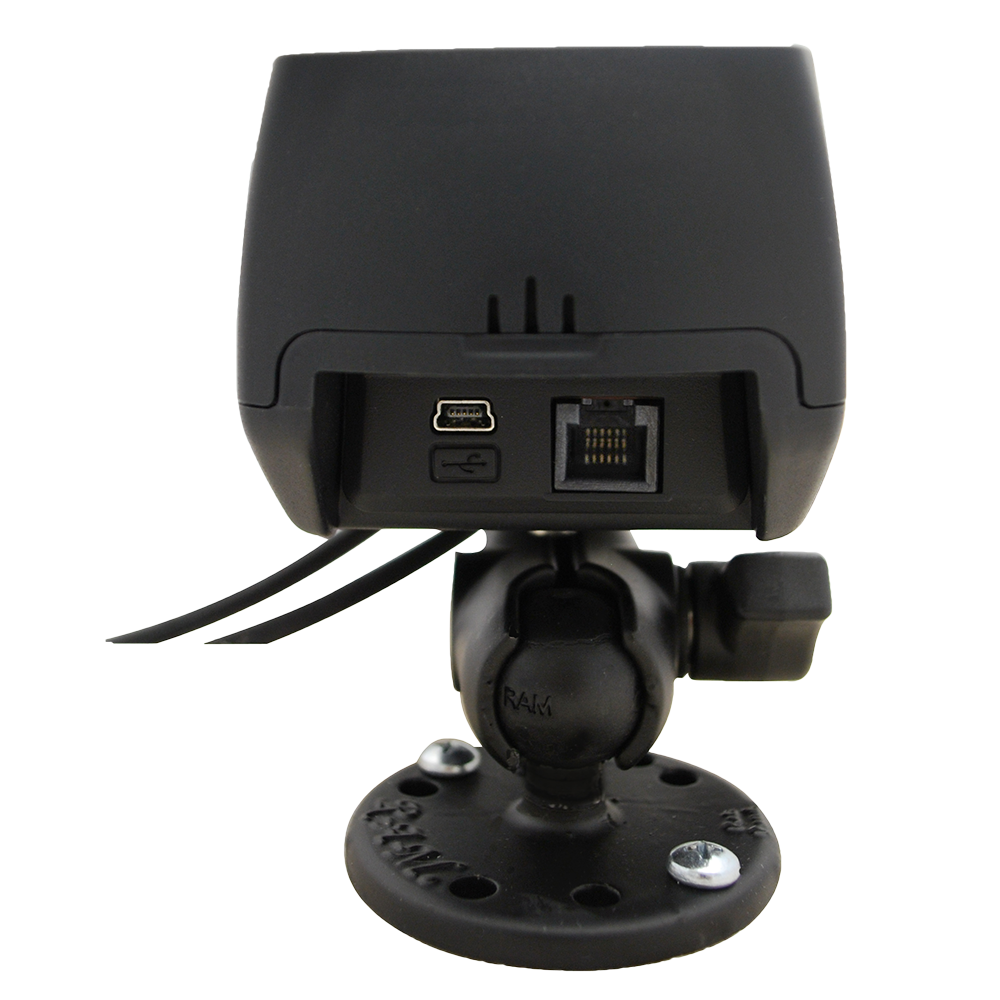

| Data Port | USB Mini Base of Dock |
Environmental
| Temperature | Degrees °C | Degrees °F |
| PotsDOCK 9555 Operating Temperature Range | -20 to +70 | -4 to +158 |
| 9555 Handset Operating Temperature Range | -10 to +55 | -14 to +131 |
| Charging Temp. Range | 0 to +40 | 32 to 113 |
| Storage Temperature | -30 to +70 | -22 to +158 |
| Operating Humidity Range | < 85% RH non-condensing |
Physical
| Dimensions | mm | inches |
| Unit | 200 x 75 x 65 | 7.9 x 3.0 x 2.6 |
| Packed | 325 x 140 x 88 | 12.8 x 5.5 x 3.5 |
| Weight | kg | lbs |
| Unit Weight | 0.32 | 0.7 |
| Packed Weight | 1.3 | 2.86 |
Kit Contents
| 9 - 32V DC Power Cable |
| Beam PotsDOCK Cradle |
| 110-240V AC Plug Pack |
| Universal Mounting Bracket (RAM) |
| User Manual |
| Quick Start Guide |
Compliance
| EMC Compliance |
| Iridium |
| CE Compliance |
| Electrical Safety |
| RoHS |
| C-Tick |
Brochures
9555 Docking Comparison Chart
PotsDOCK 9555 (9555PD) Brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportAccessories
Testimonials
Just 4 Kids Children Charity
Just 4 Kids Children Charity Relies on Satellite Communication
Just 4 Kids Inc. is a registered charity with focus on assisting disabled and disadvantaged children. With many different adventure trips to the outback in Australia they must rely on satellite communications. The worst nightmare for them is to be without communication in the middle of nowhere when a car breaks down.
Travel in remote areas
The organisation arranges several events to remote areas. “One fundraiser event to the geological center in Australia (Lamberts) saw us break two springs in our food wagon crossing from Cameron Corner to the Strzelecki Track, an extremely remote location in the middle of the desert, delaying our arrival at Arkaroola for the night. Needing to feed 100 people a quick Iridium call to the chief at Arkaroola Village, some 400 km away in South Australia, we organized a meal for all of our personal that evening. We were also able to call our spring manufacturer in Queensland to make arrangements for a new set of springs to be sent to Alice Springs” said Motorail Director Mark Louez.
No mobile reception
Travelling in remote areas with a lot of people needs planning. Not just for food and accommodation but for any scenario that can go wrong. Reliable communication is essential to cover us for any emergency situation. With no mobile phone service and poor UHF and HF Radios during day periods satellite communications is the most reliable communication in the outback.
Car mounted PotsDOCK 9555

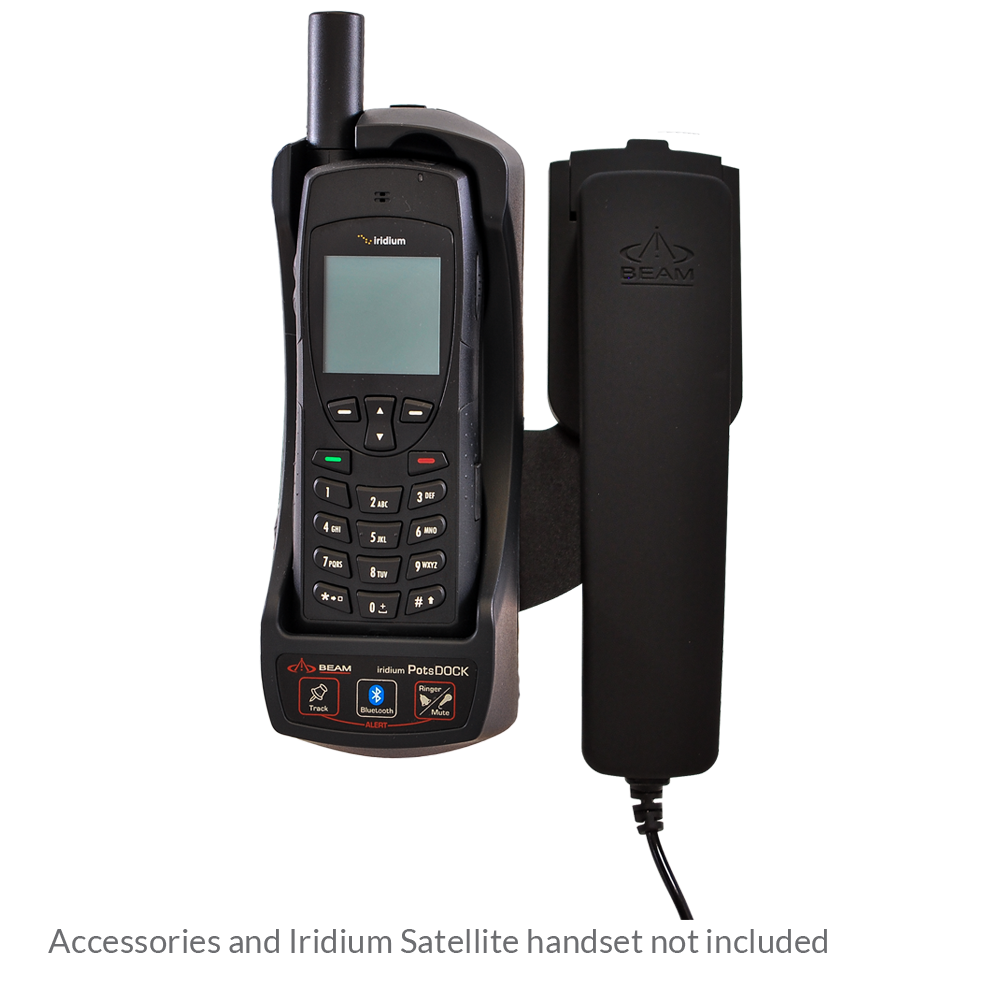

Just 4 Kids Motortrails uses Beam’s PotsDOCK 9555 which is mounted in the car with a privacy handset. The Iridium 9555 handset fits securely in the docking station which also features phone charging, RJ11/POTS, GPS, tracking, Bluetooth etc. The alert & tracking module can be configured to support periodic polling or emergency alert reporting.
