DriveDOCK Extreme (EXTRMDD)

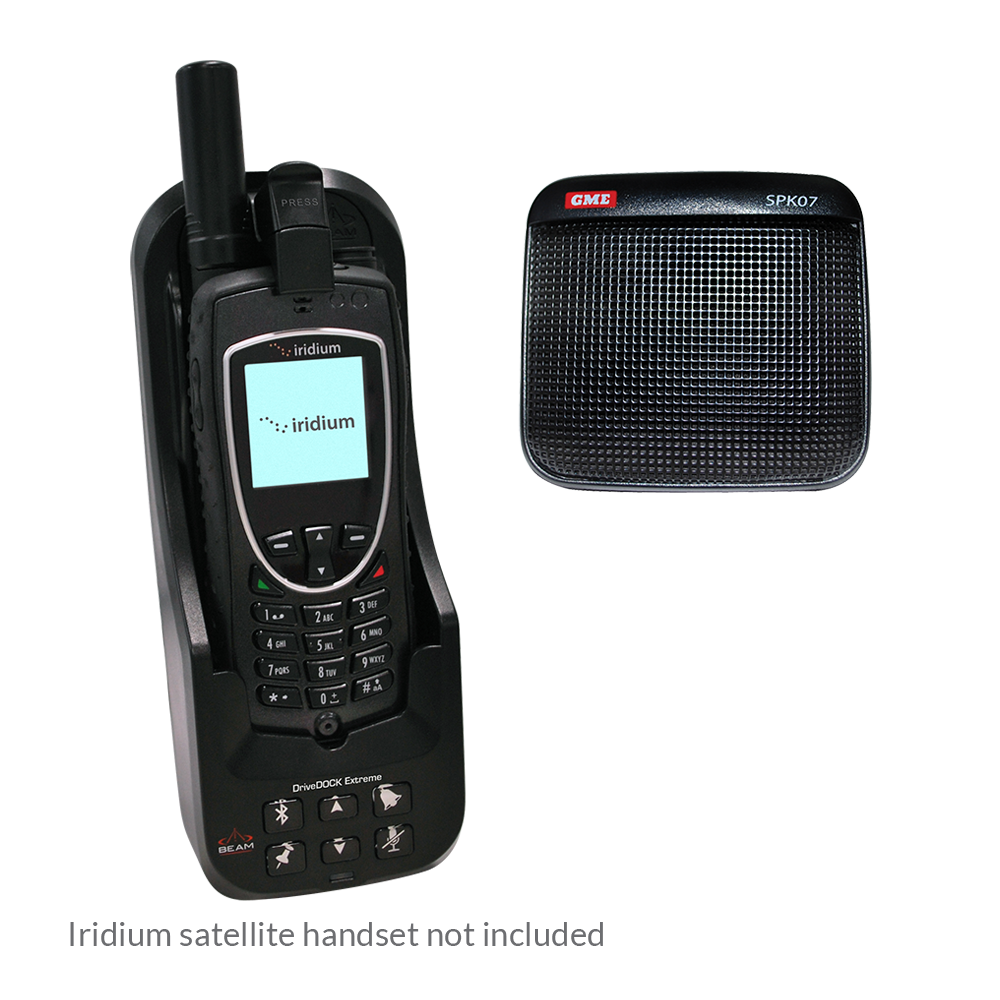

The Beam DriveDOCK Extreme, an Iridium 9575 Extreme dock which is the ideal highly featured docking station for the Iridium 9575 handset that can be used in various maritime and transport applications and considerably extends the functionality of the 9575 handset.
- Data
- Voice
- SMS
- Bluetooth
- SBD
- Handsfree
- Privacy Handset (optional)
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- Horn Alert
- USB
- SOS
- External GPS Antenna
- Supports PTT
- Supports Voice via 9575
- Wireless PTT Handset
- External PTT Antenna
DriveDOCK Extreme Features
Transport Installation

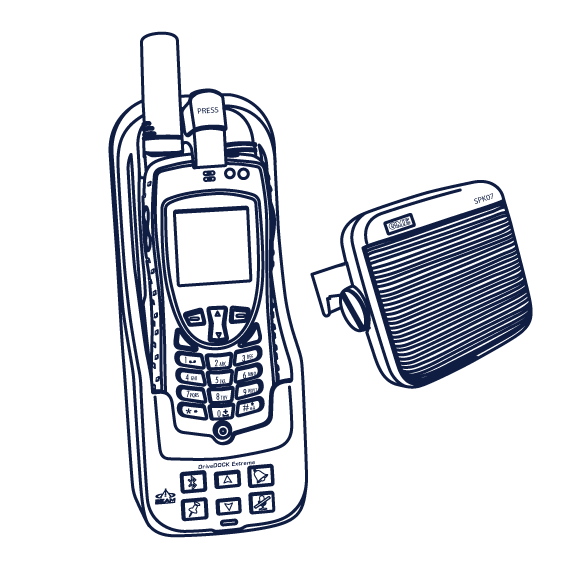

The DriveDOCK enables voice calling capabilities via a full in-vehicle hands-free installation with superior echo cancelling technology to minimise background noise.

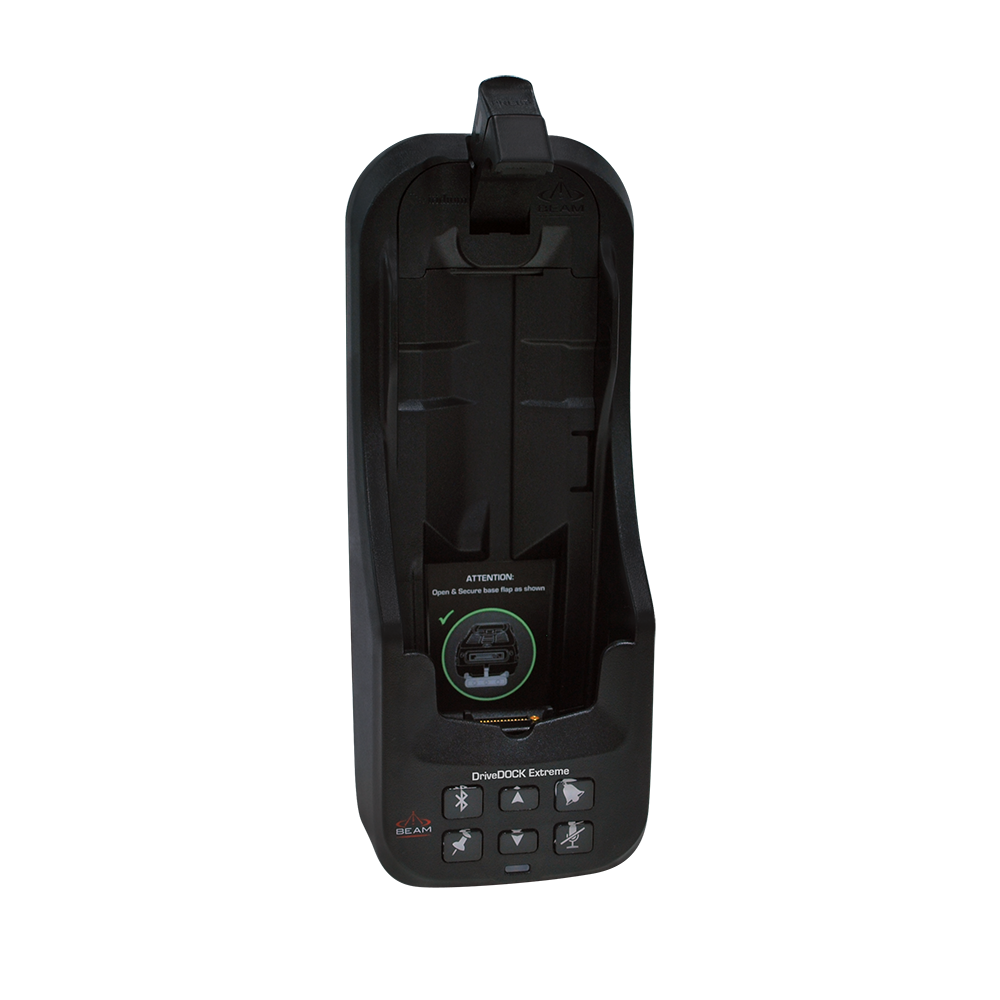

The Iridium 9575 Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with the press of a button. It is purposely built to allow you to utilize the SOS emergency and tracking functionality of the 9575 handset.
Key Benefits and Features
• Slim line compact installation
• Integrated Bluetooth connectivity
• Hands-free installation
• Privacy Handset options
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (via the 9575 Handset Functions)
• USB data interface
• Accessory / Ignition sense
• Full certified, Iridium, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
• Integrated Bluetooth connectivity
• Hands-free installation
• Privacy Handset options
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (via the 9575 Handset Functions)
• USB data interface
• Accessory / Ignition sense
• Full certified, Iridium, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
Watch DriveDOCK Extreme Video
Beam DriveDOCK Extreme hands-free docking solution provides a high quality transport installation for the Iridium Extreme handset.
The docking station has in-built echo cancelling and full duplex technologies to provide superior voice quality and professional hands-free or privacy calls for various transport applications.
The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilise the SOS emergency and tracking button whilst docked.

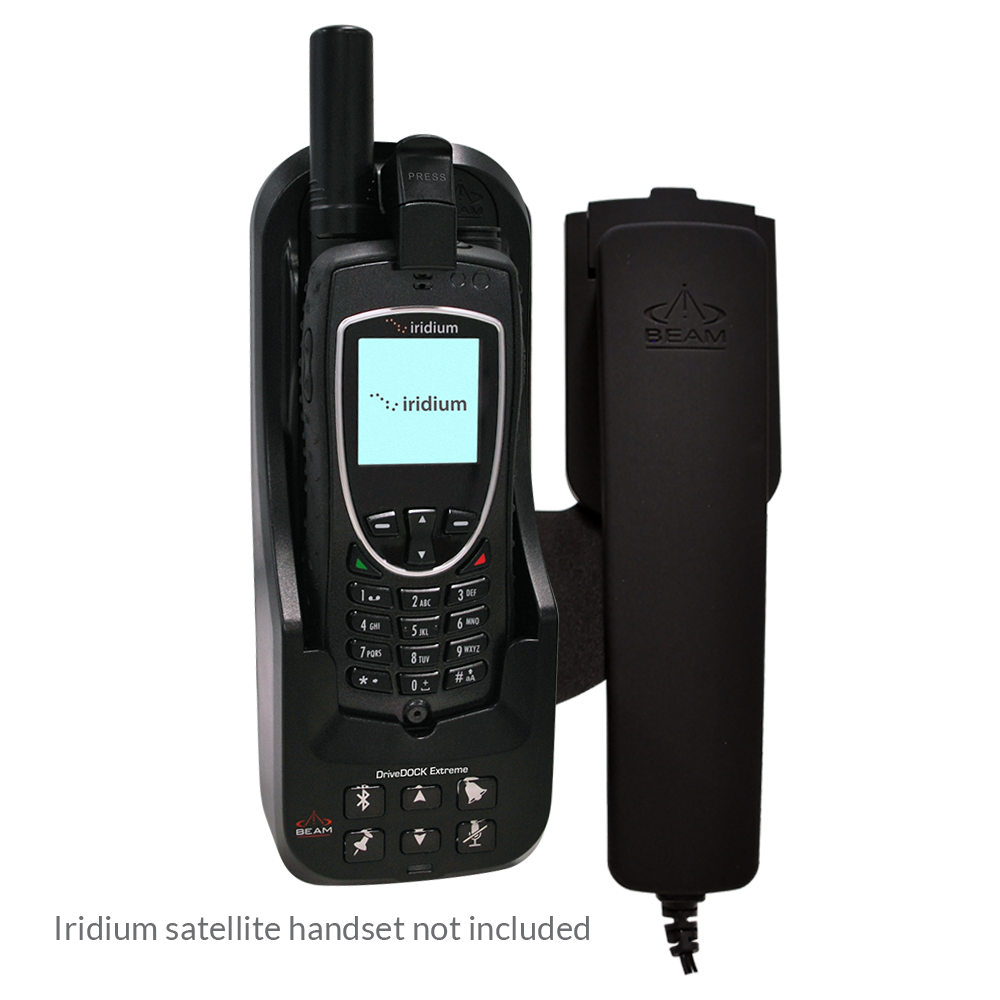

DriveDOCK Extreme supports the use of an optional Intelligent Privacy Handset, that replicates the full functionality of the Extreme handset in another location.
Similar items you may be interested in
The Beam IsatDock2 DRIVE, the only Inmarsat Certified dock for the IsatPhone 2, is a ...
View product
Beam IsatDock2 PRO, the only Inmarsat Certified Dock for the IsatPhone 2, is an intelligent ...
View product
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for ...
View product
The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for ...
View product
The DriveDOCK 9575 Bundle is an all-in-one kit, ideal for transport installation. This bundle includes:
DriveDOCK ...
View product
The SatDOCK-G 9555 enables voice calling capabilities via a full in-vehicle hands-free installation with superior ...
View product
DriveDOCK Extreme Specifications
Power
| Average Power Consumption | Current @ 12VDC | Watts |
| Rated Input | 9-32V DC | 2A max |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 5mA | 60mW |
BLUETOOTH® MODULE (INTERNAL)
| Legal | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
| Regulatory | Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: DriveDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E Japan: 07215089/AA/00 |
| Antenna | Integrated chip antenna |
| Power | Default = Class 2 (< 10 metres). 2.4GHz - 2.4835GHz Unlicensed ISM Band |
| Profiles | HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Profile v.1.5 & SPP - Serial Port Profile |
| System | Bluetooth® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence. |
Interfaces
| Privacy Handset (Line In/Out) | 4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle. |
| External Speaker and Microphone | One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone. |
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile. |
| Alarm (Alert) Loop | Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output. |
| Horn Output / Audio System Mute | Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability. |
| Power Cable | 4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc |
| LEDs/Buttons | Bluetooth, Ringer, Track, Mute, Up & Down |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C* | -22°F to +158°F |
| Charging Range | 0°C to 45°C # | +32°F to 113°F |
| Storage | -35°C to +85°C | -31°F to 185°F |
| Operating Humidity Range | < 85% RH non-condensing | |
| Notes | * When 9575 Battery is fully charged | # Derived from the charging temperature range of the Iridium 9575 handset battery. |
Physical
| Dimensions | mm | inches |
| Dock | 83W x 76D x 212H | 3.3 W x 3D x 8.3H |
| Outer Box | 140W x 125D X 330H | 5.51W x 4.92D x 13H |
| Weight | kg | lbs |
| Dock | 0.48 | 1.1 |
| Box | 1.5 | 3.4 |
Kit Contents
| DriveDOCK Extreme |
| DC Power Cable/Fuse Kit |
| Universal Mounting Bracket (RAM) |
| Speaker & Microphone |
| User Manual |
| Quick Start Guide |
Certifications
| Iridium |
| EMC Compliance |
| CE Compliance |
| Electrical Safety |
| RoHS |
| C-Tick |
Brochures
Brochure DriveDOCK Extreme
For more information please download our DriveDOCK Extreme Brochure.
Download brochure
Brochure Extreme Docks Series
For more information please download our Extreme Docks Series Brochure.
Download brochure
